Hello All. I have been looking for a generic lisp routine for drawing an hiperbolic spiral and couldn't find it. However, Fuccaro has a script for a logarithmic spiral. Since I have no programing abilities, can the script be rewritten to work with the following equation



r = a / alpha



?

Thanks in advance



This is Fuccaro's script for the logarithmic spiral ( r=a*exp(b*alpha))



;|draw a logarithmic spiral
Miklos Fuccaro     [email="mfuccaro@hotmail.com"]mfuccaro@hotmail.com[/email]
---------------------August 2006-------|;
(defun c:logsp( / a b a1 ori osmode cmdecho)

;a,b=curve paramethers
;a1 =angular increment
;ori=origin; set to the origin of the UCS

 (princ "logarithmic spiral   R=a*exp(b*alpha)")
 (setq a (getreal "\na=")
  b (getreal "\tb="))
 (setq a1 0.1 alpha (- a1) ori '(0 0 0))
 (if (and a b)
   (progn
     (setq osmode (getvar "osmode")
      cmdecho (getvar "cmdecho"))
     (setvar "osmode" 0)
     (setvar "cmdecho" 0)
     (command "pline")
     (repeat 1000    ;nr of points
  (command (polar ori (setq alpha (+ alpha a1)) (* a (exp (* b alpha)))))
  )
     (command "")
     (setvar "osmode" osmode)
     (setvar "cmdecho" cmdecho)
     )
   (princ "Invalid input!")
   )
 (princ)
 )

[fuccaro]

Hello andregustavo and welcome in the forum!



Here is the Lisp for the ecuation you wrote (r=a/alpha):

(defun c:hipsp( / a a1 alpha osmode cmdecho)
 (setq a (getreal "\na= ")
   a1 0.1
   alpha 0
   osmode (getvar "osmode")
   cmdecho (getvar "cmdecho"))
 (mapcar 'setvar '("osmode" "cmdecho") '(0 0))
 (command "pline")
 (repeat 500
   (command (polar '(0 0 0) (setq alpha (+ alpha a1)) (/ a alpha))))
 (command "")
 (mapcar 'setvar '("osmode" "cmdecho") (list osmode cmdecho))
 (princ)
 )

[leninne]

Hello Fuccaro!



I saw your code regarding logarithmic spiral, I know it's a lisp code, but because i'm very new in this area I don't quite know to to create the lisp file in order to load it (I have seen other lisp files, they look different, that is why I am so confused).



I need the code to create a spiral that will be placed in an antenna.



Really really need your help!

[Lee Mac]

A few spirals...

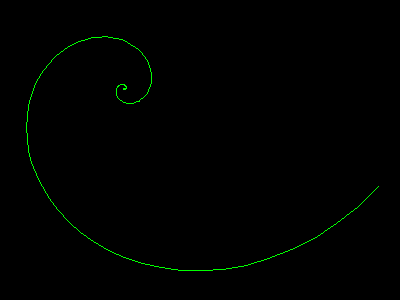

Logarithmic Spiral



(defun c:LogSpiral ( / a0 i v p a b l )

 (setq a0 0.0  ;; Start Angle
       i  0.1  ;; Increment
       v  500  ;; Vertices
 )
 (princ "\nLogarithmic Spiral: r=ae^(b0)")
 (if
   (and
     (setq a (getreal "\nParameter a="))
     (setq b (getreal "\nParameter b="))
     (setq p (getpoint "\nBase Point: "))
   )
   (entmakex
     (append
       (list
         (cons 0 "LWPOLYLINE")
         (cons 100 "AcDbEntity")
         (cons 100 "AcDbPolyline")
         (cons 90 v)
       )
       (repeat v
         (setq l (cons (cons 10 (polar p (setq a0 (+ a0 i)) (* a (exp (* b a0))))) l))
       )
     )
   )
 )
 (princ)
)

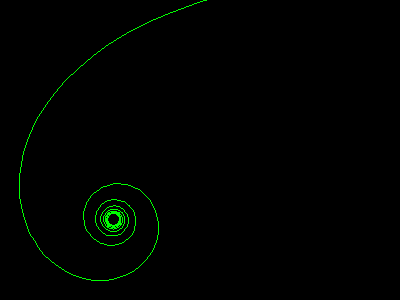

Hyperbolic Spiral



(defun c:HypSpiral ( / a0 i v a p l )

 (setq a0 0.0  ;; Start Angle
       i  0.1  ;; Increment
       v  500  ;; Vertices
 )
 (princ "\nHyperbolic Spiral: r=a/x")
 (if
   (and
     (setq a (getreal "\nParameter a="))
     (setq p (getpoint "\nBase Point: "))
   )
   (entmakex
     (append
       (list
         (cons 0 "LWPOLYLINE")
         (cons 100 "AcDbEntity")
         (cons 100 "AcDbPolyline")
         (cons 90 v)
       )
       (repeat v
         (setq l (cons (cons 10 (polar p (setq a0 (+ a0 i)) (/ a a0))) l))
       )
     )
   )
 )
 (princ)
)

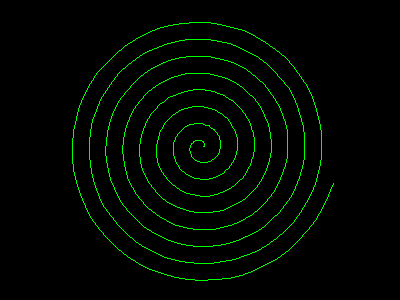

Archimedian Spiral



(defun c:ArchSpiral ( / a0 i v p a b l )

 (setq a0 0.0  ;; Start Angle
       i  0.1  ;; Increment
       v  500  ;; Vertices
 )
 (princ "\nArchimedian Spiral: r=a+bx")
 (if
   (and
     (setq a (getreal "\nParameter a="))
     (setq b (getreal "\nParameter b="))
     (setq p (getpoint "\nBase Point: "))
   )
   (entmakex
     (append
       (list
         (cons 0 "LWPOLYLINE")
         (cons 100 "AcDbEntity")
         (cons 100 "AcDbPolyline")
         (cons 90 v)
       )
       (repeat v
         (setq l (cons (cons 10 (polar p (setq a0 (+ a0 i)) (+ a (* b a0)))) l))
       )
     )
   )
 )
 (princ)
)

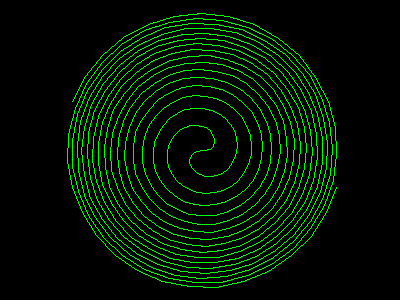

Fermat Spiral



(defun c:FermatSpiral ( / a0 i v p l )

 (setq a0 0.0  ;; Start Angle
       i  0.1  ;; Increment
       v  250  ;; Vertices
 )
 (princ "\nFermat Spiral: r=+-0^0.5")
 (if (setq p (getpoint "\nBase Point: "))
   (entmakex
     (append
       (list
         (cons 0 "LWPOLYLINE")
         (cons 100 "AcDbEntity")
         (cons 100 "AcDbPolyline")
         (cons 90 (* 2 v))
       )
       (repeat v
         (setq l
           (append
             (list (cons 10 (polar p (setq a0 (+ a0 i)) (- (sqrt a0)))))
             l
             (list (cons 10 (polar p (setq a0 (+ a0 i)) (sqrt a0))))
           )
         )
       )
     )
   )
 )
 (princ)
)

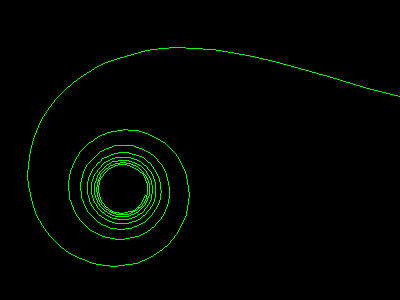

Lituus Spiral



(defun c:LituusSpiral ( / a0 i v p l )

 (setq a0 0.0  ;; Start Angle
       i  0.1  ;; Increment
       v  500  ;; Vertices
 )
 (princ "\nLituus Spiral: r=0^-0.5")
 (if (setq p (getpoint "\nBase Point: "))
   (entmakex
     (append
       (list
         (cons 0 "LWPOLYLINE")
         (cons 100 "AcDbEntity")
         (cons 100 "AcDbPolyline")
         (cons 90 v)
       )
       (repeat v
         (setq l (cons (cons 10 (polar p (setq a0 (+ a0 i)) (/ 1. (sqrt a0)))) l))
       )
     )
   )
 )
 (princ)
)

[troggarf]

Cool stuff Lee!!



Quick question that is off topic but is illustrated in this post:

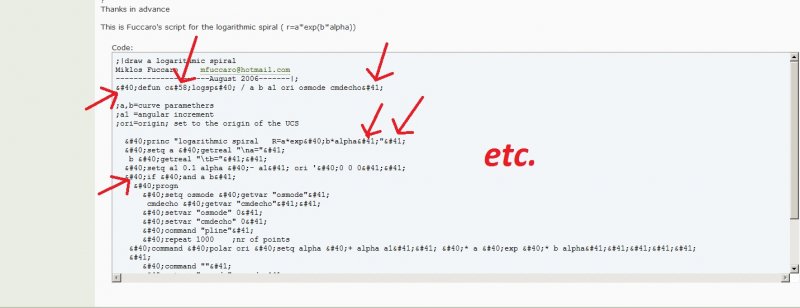

What causes code symbols like parenthesis to lose its symbol and show its alpha-numeric code?

I've run into this previously and don't want to decipher it.

Any suggestions on how to fix this and avoid it?

[Lee Mac]

Thanks Greg



I believe the html character substitution occurs when an old thread is archived, or perhaps it happened when a server was changed - that'd be a question for David. A quick find and replace will fix it

[troggarf]

Thanks for clarifying that Lee.

Makes sense.

I will look for a reference online that shows what html character equals what.

~Greg

[Lee Mac]

I will look for a reference online that shows what html character equals what.



The numbers in the html character expressions are just the ASCII codes, hence:



( = (

Since (chr 40) = (



There are many ASCII references, I use this one mostly.



For a HTML Special Character and ASCII reference, see the W3 Web Standards site here, and here.



Lee

[fuccaro]

Thanks Lee, for coming earlier and posting the cure for my old routines. Have a nice day!

[Lee Mac]

........

[leninne]

Thank you so much!
