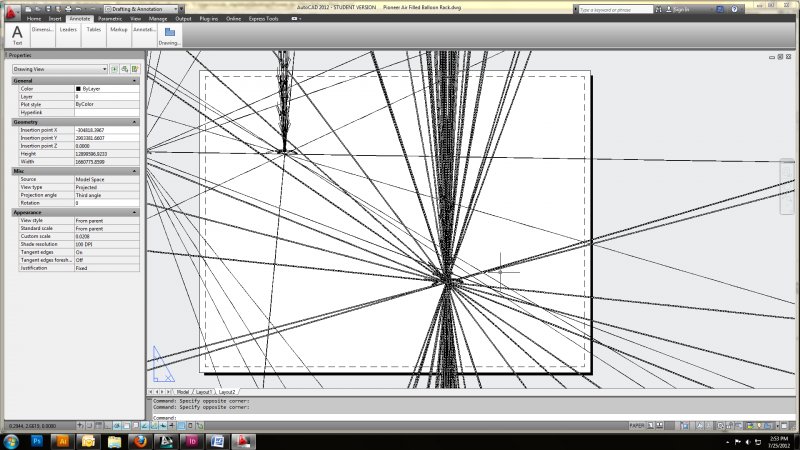

circles Posted July 25, 2012 Posted July 25, 2012 Hello, I have a model I did in alias that I'm trying to create a 2D orthographic drawing of. I am assuming the easiest way to do this is through AutoCAD, so I imported the model (saved it as .igs first) and inserted a "base view" and all that. When I put the views down, however, there are all these crazy lines coming from my model. What are these and how do I get them to go away? (Screenshot attached) I am not pretending to know anything at all about AutoCAD, so I'm hoping this is just something simple that I'm not doing! Also, if anyone knows of an easier method to create a 2D drawing from my model, please let me know! I am having trouble learning a whole new program just to make a simple orthographic dimensioned drawing. Thank you in advance Quote
JD Mather Posted July 25, 2012 Posted July 25, 2012 Can you zip and attach your IGES file here? Quote
circles Posted July 25, 2012 Author Posted July 25, 2012 Would love to! Here is my file. Any ideas? Thanks Pioneer Air Filled Balloon Rack 3.zip Quote
rkent Posted July 25, 2012 Posted July 25, 2012 Would love to! Here is my file. Any ideas? Thanks [ATTACH]36160[/ATTACH] Opened in Inventor and exported to .dwg, hope it all made the trip. Pioneer Air Filled Balloon Rack 3.dwg Quote
Rie1981 Posted July 30, 2012 Posted July 30, 2012 Hi Im new here. was browsing thru threads and everyone sounds very helpful. Im glad they would answer "simple" questions.. ill try to be helpful as well..and i also have a lot of questions in my mind right now Quote
