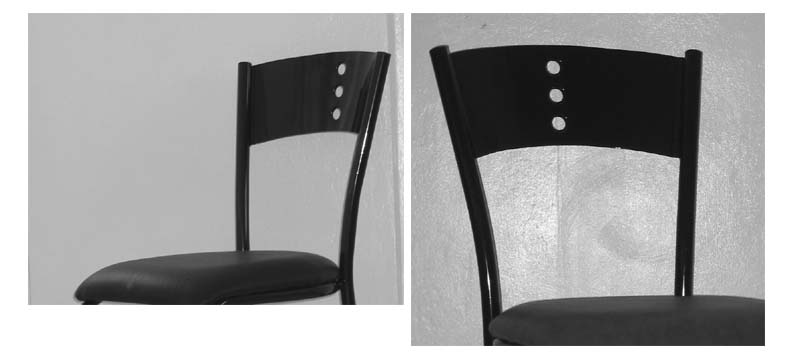

marlon Posted October 31, 2008 Posted October 31, 2008 A steel plate is pressed to form an arc. Also notice that the bottom is narrower. How do I draw it in 3D? (If the plate is a perfect rectangle I would be able to draw it even if it is bent like an arc.) Thanks! Quote
ReMark Posted October 31, 2008 Posted October 31, 2008 Using 2002? I think you would have the draw the top view, extrude it the required height then use move faces to add the taper or slice each end at a taper. Quote
fuccaro Posted October 31, 2008 Posted October 31, 2008 This is why surfaces exist: sometimes we just can't model with solids. So draw the edges and use EDGESURF on them. You may wish to set SURFTAB1 and 2 to higher values (say 20) before using EDGESURF If you really need it as solid (to punch the holes), use the m2s lisp routine (it was published in this forum) Quote
ReMark Posted October 31, 2008 Posted October 31, 2008 I did this example without using loft. Dimensions of my own choosing. I constructed a plan view of the desired shape using arcs and straight lines and combined them using the Pedit command. I extruded the resultant geometry to a height of 12 inches. I set up some temporary lines to orient myself on each end and used the Slice command to remove an angled sliver from the chairback. Result: a curved back that tapers at each end from narrower at the bottom to full width at the top. It took but a few minutes to do. Chairback.dwg Quote
rgarjr Posted October 31, 2008 Posted October 31, 2008 U can also use the intersect command which is very powerful. That's the thing about drawing in 3D, u can use many different way of getting there. Quote
ReMark Posted October 31, 2008 Posted October 31, 2008 That's a good point rgarjr. I hadn't thought of using that approach. Quote
Pocket Posted November 1, 2008 Posted November 1, 2008 Done in 2002 Extrude simple arc region and blank of front view Arc region is rotated back teh angle of the backing Align pieces Intersect Simple cyl extrusions will complete the chair Additional backing design should be done prior to intersect Option B is to extrude the arc region at a taper but calculating where to exactly position the cyl tubes becomes tricky Option C is to draw the cyls first then orient an oversized arc extrusion to pass thru the cyls and ending with the slice command to trim the excess arc Quote
marlon Posted November 1, 2008 Author Posted November 1, 2008 ...seriously. I tried the SOLIDEDIT -> FACE -> TAPER and it worked for me. However, the real steel plate looks like this from the top (when you're standing next to the chair and looking straight down at it) CanYouStillTaperThis.jpg Notice that apart from the arc region, the steel plate is pressed at the left and right sides too. The reason for this is that it would be easier to weld the plate onto the steel tube, and it also adds strenght to the structure. I can't seem to use the face-taper command on it, unlike the drawing that I made which is similar to Pockets' (right and left ends of the plate are NOT pressed). Suggestions? By the way I'm just a beginner so try to keep it simple and pretend I'm a moron. Quote
shift1313 Posted November 1, 2008 Posted November 1, 2008 i dont think you need to use face/taper command. just extrude your arc section like stated above, and use the intersect command with another solid. the face taper command will take the face of a solid and create a tapered face. Since you do not have a solid in that screen shot it will do nothing for you. if you draw the back like above. you can draw the "ears" after and extrude them along a path(being the edge of your chair back). let me draw something so you can see. Quote
shift1313 Posted November 1, 2008 Posted November 1, 2008 so i drew the back just like above. then i created the ear and a line that went down the side of the back so i could extrude along this Path. mirrored the ear and Union all 3 pieces together. then drew the holes in the back and did a fillet on them from the front side so it looks like an iron worked pressed the holes. to get the back to look accurate may take a little more work on your part if thats what you are aiming for though. Quote
