sarandeeb Posted May 31, 2012 Posted May 31, 2012 Dear CADTutor members, I have an assignment. I've done all the work until i reached the end of it which is adding 2 cylinders to a weird looking object. anyway, I'm trying to put the cylinder which shares a space between a wedge and a region but I'm unable to subtract it. Anyone can help me with this, Please? Best Regards, Sarandeeb Drawing2.dwg CAD_exercise_1.pdf Quote
ReMark Posted May 31, 2012 Posted May 31, 2012 A quick check of your drawing shows that you have used a variety of entities to construct your object such as a solid, regions, lines and surfaces. For this to be done correctly I believe the object should be one complete solid. Quote

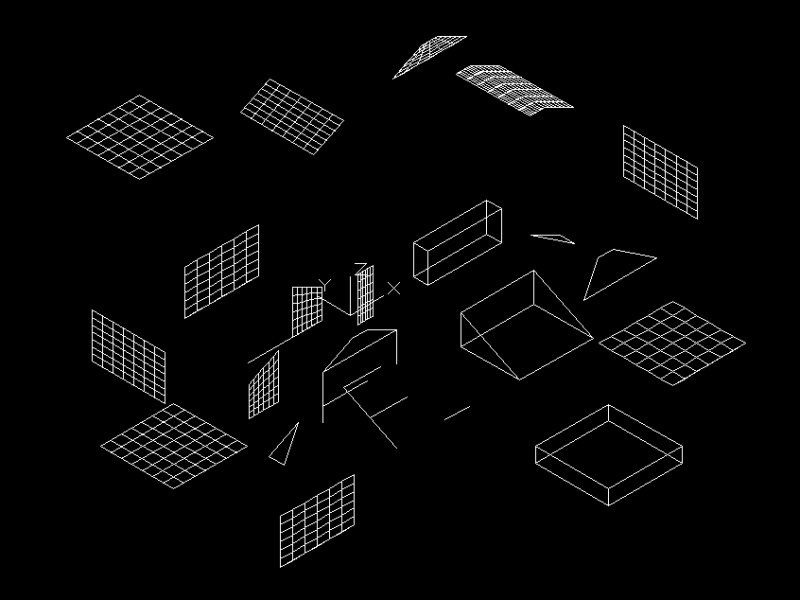

ReMark Posted May 31, 2012 Posted May 31, 2012 I took your object apart to show you all the surfaces (they look like a mesh), regions, three solids and a host of individual lines that went into its creation. I'm not sure who taught you this technique but it is not correct. Quote

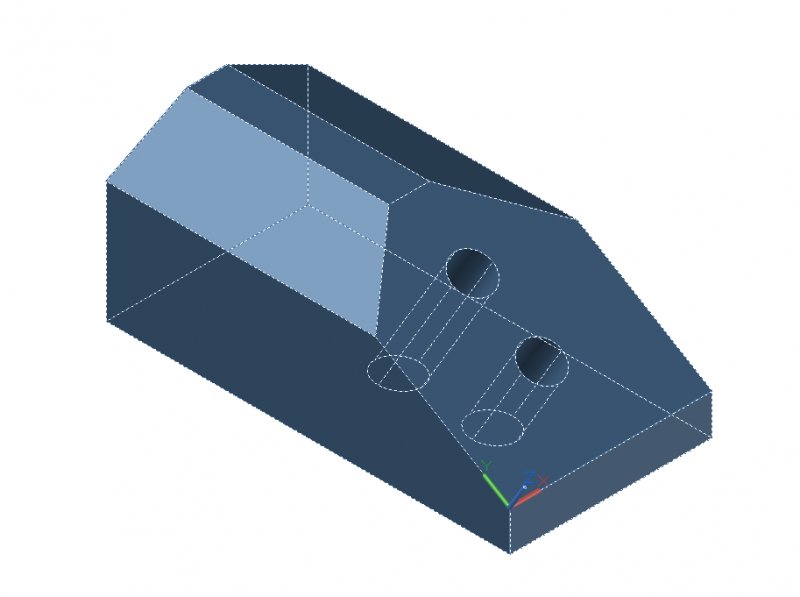

ReMark Posted May 31, 2012 Posted May 31, 2012 Maybe this will help you envision the object better. It is one complete solid. Quote

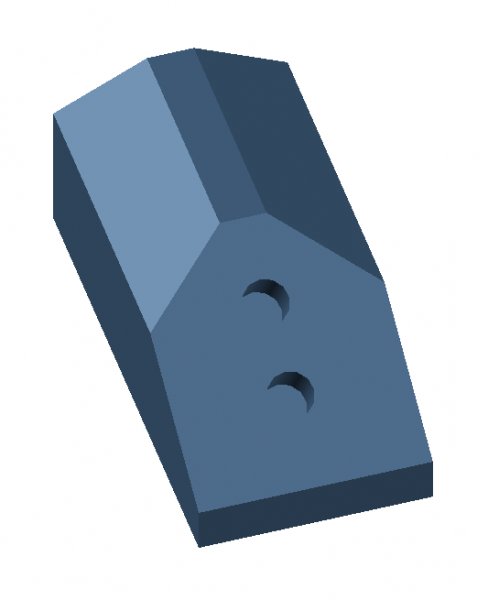

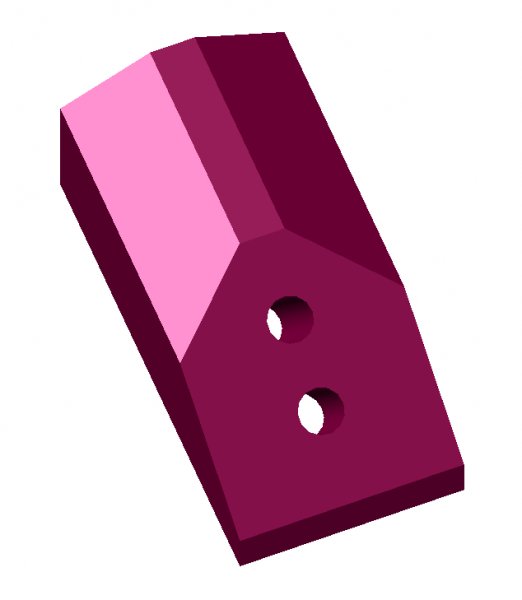

ReMark Posted May 31, 2012 Posted May 31, 2012 A slightly different view. You'll need to reorient your UCS so you can create the two holes on the sloped face of your object. Extrude the two circles through your object then subtract them to create the holes. Is that clear? Addendum: In my haste to post the above images I totally missed the fact that the holes do not go all the way through the object. They are 10 units in depth. Sorry. Quote
sarandeeb Posted May 31, 2012 Author Posted May 31, 2012 well, I don't know how to create one object like yours in order to subtract the cylinders. I've taken the AutoCAD courses very long time ago. This unit I'm taking, requires AutoCAD drawing but I'm unable to remember the methods I used to create complex 3d shapes. Unfortunately. Yours looks much smoother and I'd like to know how did you do it? Quote
nestly Posted May 31, 2012 Posted May 31, 2012 Here's a little demo showing how to construct it as one object. I added a couple construction lines to created the "wedge" for demonstration purposes that I wouldn't have normally needed. I also used two different methods for putting the holes in the tapered face. (Cylinder > Subtract then Circle > PressPULL) Also note that Dynamic Input was enabled, which is what allowed the cylinder/circle to be drawn directly on the tapered face. Hope this helps, and welcome to Cadtutor. Quote
ReMark Posted May 31, 2012 Posted May 31, 2012 I'm going to nominate nestly for the Steven Spielberg award for Best Director of a Short Video Clip. Quote
sarandeeb Posted May 31, 2012 Author Posted May 31, 2012 nestly's video is AMAZING. LOL. I've been trying to do it part by part just like a lego toy for hours. I can't believe it. Thank you ReMark and nestly for your amazing support. Quote
ReMark Posted May 31, 2012 Posted May 31, 2012 nestly: You can come up on stage and collect your Oscar for Best Director. Quote
