need help with some plans

[hot shot 991]

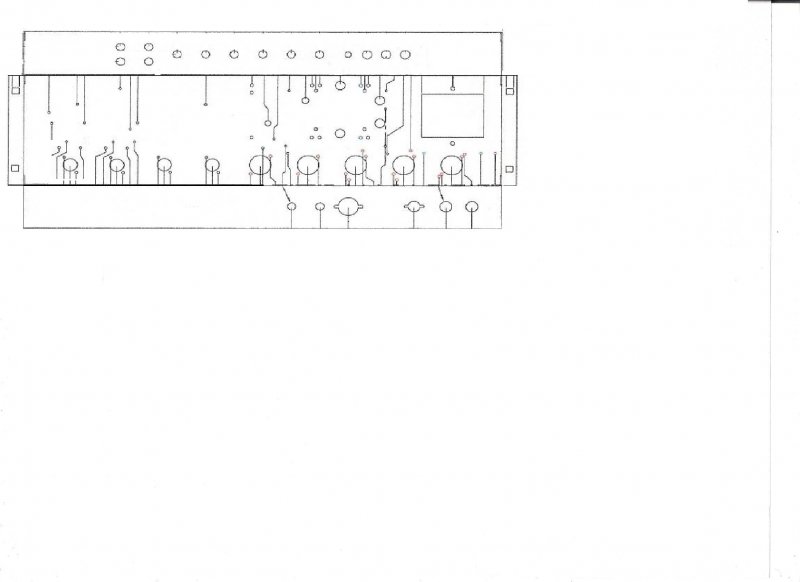

ok, so one of my friends is laser cutting a chassis for me if you now anything about guitar amps for a marshall plexi but he needs an autocad drawing from me. But this is my first time even using auto cad and I have my drawing as the first photo but I have no idea how do do this stuff and was wondering how hard and long it would take for me to draw this out or if some nice nice nice nice person would help draw it out on autocad for me lol but thanks and please respond-Jake



also if someone that's knows how to do this stuff fast wouldn't and wouldn't mind Drawing it for me I have a template I can give for a starter

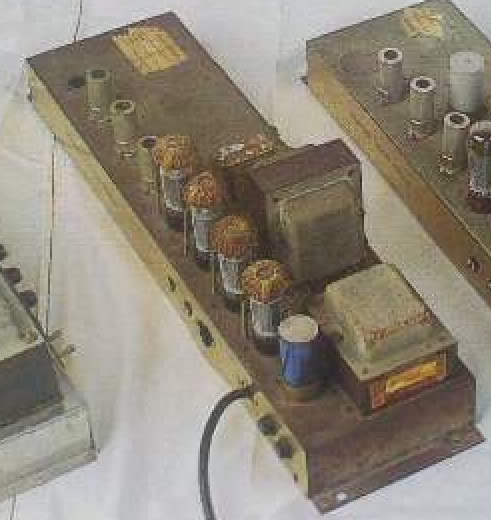

also ill put another photo at the bottom of what a chassis looks like

[Dadgad]

If you know the diameters of the holes needed, I would be glad to help you with this. Is the image shown what you are actually trying to recreate in Cad, or just to give the idea? Obviously I would need to know the overall dimensions of the chassis.

[ReMark]

Overall dimensions.



Hole diameters.



Dimensions to centerlines of holes.



If you are going to go through all the bother of obtaining and documenting this information you might as well do it yourself. It will be a good learning exercise.

[hot shot 991]

Hey,if you didn't mind I would owe you lol but if you can send me your email in my inbox or dont mind posting it here ill send you a photo with every dimension you need,including the actual size of the chassis.Thank you so much! and ill talk to you later-jake

[hot shot 991]

since i cant get anything in my inbox my email is of course hotshot991@gmail.com lol but I guess send em an email so I can reply back and i can send you those pics but thanks again and cya later

[TAZIN]

@ hot shot 991

I originally drew the Marshall 12Series blueprints that you are referencing in your post. If you plan on producing a CAD file for mfg make sure you double check the OT mount spacing against whatever mfg you plan to use. Same thing goes for the choke. Also, remember that it was originally drawn in metric units, so adjust accordingly for Imperial units if your going that route.

[hot shot 991]

@ hot shot 991

I originally drew the Marshall 12Series blueprints that you are referencing in your post. If you plan on producing a CAD file for mfg make sure you double check the OT mount spacing against whatever mfg you plan to use. Same thing goes for the choke. Also, remember that it was originally drawn in metric units, so adjust accordingly for Imperial units if your going that route.



ok, thanks for the info and you saved my life with that drawing lol but thanks for the info again and ill make sure to do that.Im having it made but my next door neighbor who is really cool, is a welder for the school board so he has a load of steel scraps and asked me if I ever wanted to do anything just ask, but I might ask him and if you dont mind do you ever have the length, width, and height of that chassis thanks again and ill talk to you later-jake

[TAZIN]

All the needed dimensions were in the file I posted on at MetroAmp dot com last year. The first image you attached is a hacked up version of the original by someone....Don't ask me why they did that! I suggest you head over to MetroAmp and download the original file (under the Do it Yourself amp builds subforum). Also, there are a lot of things you'll need to address if your going to use modern parts on this chassis since it was drafted based on the old parts which are different in size....i.e. octal socket size, Selector sizes, Bulgin cut or IEC, Fuse holder size, additional PT mounting holes, etc.,.

[hot shot 991]

Thank you so much, but do you mind if I ask you one more question? do you know what size or scale I should put this image at to print it full size or do you know what the length and width of that chassis was so I can play around with the file and get the scale? thanks and cya later

[TAZIN]

I honestly don't remember what I scaled it down to in order to produce the pdf file. Besides, I'd never trust the conversion from AutoCAD to pdf to be accurate in regards to scaling. FWIW, I dilibrately posted the file as a "reduced" or scaled pdf file as opposed to a AutoCAD dwg file for the following reason....I wanted to help people out who were in the position to produce there own chassis, but I didn't want them to get "everything" for free. Meaning, you've got to put in some work too if you want to produce a chassis, and in this case that meant you had to take the time and use the info I provide in the pdf file to produce your own CAD or SolidWorks file. Kinda make sense?

[hot shot 991]

I honestly don't remember what I scaled it down to in order to produce the pdf file. Besides, I'd never trust the conversion from AutoCAD to pdf to be accurate in regards to scaling. FWIW, I dilibrately posted the file as a "reduced" or scaled pdf file as opposed to a AutoCAD dwg file for the following reason....I wanted to help people out who were in the position to produce there own chassis, but I didn't want them to get "everything" for free. Meaning, you've got to put in some work too if you want to produce a chassis, and in this case that meant you had to take the time and use the info I provide in the pdf file to produce your own CAD or SolidWorks file. Kinda make sense?

yes it makes sense and thanks for all of your help, I just wanted to get an idea from someone what were the actual lengths of the chassis was from a 67 to 68 or better known the 12 series.I had thought that maybe over the years the chassis got changed up a little in dimensions.But so far I got that with wing included they were 26 1/2 inches long, 6 1/2 inches wide, and 2 1/2 inches in height.

[TAZIN]

Oh, shame on you...You didn't download the file did you? Because if you did you'd know what the length, width, and height of the chassis is. BTW, they did very just a little from chassis to chassis.

[hot shot 991]

wtf! I did download it lol sorry im so new to this stuff, were dose it show the length width and height?I dont see them at all

[TAZIN]

Oh, I'm sorry then. It just sounded like you didn't download the file. Anyhow, you should see 680.00mm for the overall length. Remember all dimensions start from 0.0 in each view of the chassis. The width is 172.00mm. So, for example the ON/OFF switch is positioned 505.10mm from the left edge of the chassis (where the mounting flange is).

[hot shot 991]

ok now I see all that lol thanks again for all your help , I cant wait to start this and ill have a pic up of it when im finished

[TAZIN]

Remember to adjust part placements and holes sizes based on the actually parts your going to use. This will save you a lot of headaches! It always sucks when you create a nice looking chassis and then you have to take a file to in order to get the parts to fit. Good luck.
