Scatter blocks inside a polyline or some kind of spray tool for ACAD ? ...

gashaglava

By gashaglava
in AutoLISP, Visual LISP & DCL

 Share

Recommended Posts

gashaglava Apprentice

gashaglava

Posted
Posted

I need some kind of scatter tool or spray tool, that would spread some blocks/trees over an area, or closed polyline ...



I've seen there was once a routine or addon called Sketch++ or skpp, but it's not available for download anymore ... says "not free anymore" but I cant even find the commercial version of it



I want to use it to make some urban planning drawings more "alive" ... I'm working on a little settlement plan that's in the middle of a large forest, and would love to somehow "randomize" the trees, their position and scale ...



I know there are tons of plugins for 3dsmax for example, that spread or spray/paint selected 3d objects, with many options regarding distance, scale, density, ...



Is there somethig similar for Autocad, or could someone give it a try if its not too complicated ?



thanx in advance





Cheers,



Miroslav

ACAD Architecture 2012

  • Replies 24
  • Created
  • Last Reply

Top Posters In This Topic

  • marko_ribar

    5

  • rlx

    4

  • gashaglava

    2

  • Steven P

    2

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

marko_ribar
marko_ribar

Check this program... (you have to be logged in...)   https://www.theswamp.org/index.php?topic=48113.msg531626#msg531626   Regards, M.R.

Lee Mac
Lee Mac

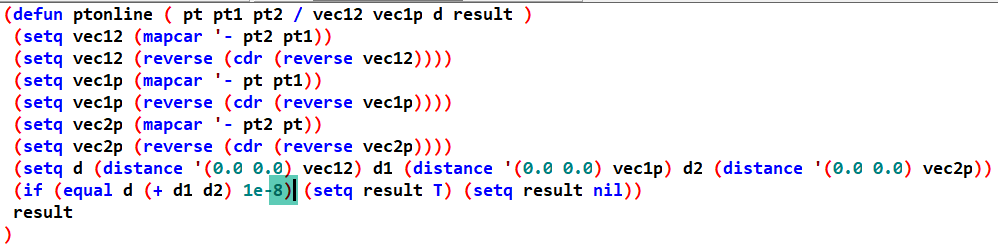

The original would have been 1e-8 since all occurrences of "8)" were removed from all code posts across the forum when the forum software was "upgraded".

Steven P
Steven P

I'll assume from your question that it is all loaded (if not this is  good resource: https://lee-mac.com/runlisp.html),   To run a loaded LISP generally all you need to do is type function n

Posted Images

pBe Grand Master

pBe

Posted
Posted

Interesting concept :)



getdist

getint

grread

some kind of code

insert

exit



Maybe or maybe not. :)

marko_ribar Veteran

marko_ribar

Posted
Posted (edited)

Here, try this :



(defun rnd (/ modulus multiplier increment rand)
 (if (not seed)
   (setq seed (getvar "DATE"))
 )
 (setq modulus    65536
       multiplier 25173
       increment  13849
       seed  (rem (+ (* multiplier seed) increment) modulus)
       rand     (/ seed modulus)
 )
)

(defun GroupByNum ( lst n / r)
 (if lst
   (cons
     (reverse (repeat n (setq r (cons (car lst) r) lst (cdr lst)) r))
     (GroupByNum lst n)
   )
 )
)

(defun ptinsideent ( pt ent / msp ptt lin int a b tst result )
 (setq msp (vla-get-modelspace (vla-get-activedocument (vlax-get-acad-object))))
 (setq ptt (vlax-curve-getclosestpointto ent pt))
 (setq lin (vla-addline msp (vlax-3d-point pt) (vlax-3d-point ptt)))
 (setq int (GroupByNum (vlax-invoke (if (eq (type ent) 'ENAME) (vlax-ename->vla-object ent)) 'intersectwith lin acExtendBoth) 3))
 (setq a (angle pt ptt))
 (foreach p int
   (setq b (angle pt p))
   (if (equal a b 1e- (setq tst (cons T tst)) (setq tst (cons nil tst)))
 )
 (vla-delete lin)
 (if (eval (cons 'and tst)) (setq result nil) (setq result T))
 result
)

(defun c:populate ( / BNAME DX DXX DY DYY ENT ENTA MAXPOINT MAXPT MINPOINT MINPT MSP NO PT SCF SCFF SCFFMIN ) (vl-load-com)
 (setq ent (car (entsel "\nPick 2D closed entity without arcs")))
 (while (eq (cdr (assoc 70 (entget ent))) 0)
   (prompt "\nPicked entity is open, please pick closed one")
   (setq ent (car (entsel "\nPick 2D closed entity without arcs")))
 )
 (setq entA (vlax-ename->vla-object ent))
 (setq msp (vla-get-modelspace (vla-get-activedocument (vlax-get-acad-object))))
 (vla-getboundingbox entA 'minpoint 'maxpoint)
 (setq
  minpt (vlax-safearray->list minpoint)
  maxpt (vlax-safearray->list maxpoint)
 )
 (setq dx (- (car maxpt) (car minpt)))
 (setq dy (- (cadr maxpt) (cadr minpt)))
 (initget 6)
 (setq no (getint "\nInput number of blocks to populate : "))
 (setq bname "")
 (while (not (tblsearch "BLOCK" bname))
   (setq bname (getstring T "\nInput name of block to populate (CASE UNSENSITIVE) : "))
 )
 (initget 6)
 (setq scf (getreal "\nInput max. scale factor for block insertion <1.0> : "))
 (if (null scf) (setq scf 1.0))
 (initget 6)
 (setq scfmin (getreal "\nInput min. scale factor for block insertion <1.0> : "))
 (if (null scfmin) (setq scfmin 1.0))
 (while (> no 0)
   (setq dxx (* dx (rnd)))
   (setq dyy (* dy (rnd)))
   (setq pt (list (+ (car minpt) dxx) (+ (cadr minpt) dyy) 0.0))
   (if (and (eq scfmin 1.0) (eq scf 1.0)) (setq scff 1.0) (setq scff (+ scfmin (* (- scf scfmin) (rnd)))))
   (if (ptinsideent pt ent)
     (progn
       (setq no (1- no))
       (vla-insertblock msp (vlax-3d-point pt) bname scff scff scff (* 2 pi (rnd)))
     )
   )
 )
 (princ)
)

M.R.

Hope this should help...

;)

Edited by marko_ribar
gashaglava Apprentice

gashaglava

Posted
  • Author
Posted

EXACTLY !



Many, many thanx !



Cheers

marko_ribar Veteran

marko_ribar

Posted
Posted (edited)

Here is revision (changed ptinsideent sub-function)... Now routine can be applied and for closed 2D entities with arcs...



(defun rnd (/ modulus multiplier increment rand)
 (if (not seed)
   (setq seed (getvar "DATE"))
 )
 (setq modulus    65536
       multiplier 25173
       increment  13849
       seed  (rem (+ (* multiplier seed) increment) modulus)
       rand     (/ seed modulus)
 )
)

(defun GroupByNum ( lst n / r)
 (if lst
   (cons
     (reverse (repeat n (setq r (cons (car lst) r) lst (cdr lst)) r))
     (GroupByNum lst n)
   )
 )
)

(defun ptinsideent ( pt ent / msp ptt lin int a b tst result )
 (vl-load-com)
 (setq msp (vla-get-modelspace (vla-get-activedocument (vlax-get-acad-object))))
 (setq ptt (vlax-curve-getclosestpointto ent pt))
 (setq lin (vla-addline msp (vlax-3d-point pt) (vlax-3d-point ptt)))
 (setq int (GroupByNum (vlax-invoke (if (eq (type ent) 'ENAME) (vlax-ename->vla-object ent)) 'intersectwith lin acExtendBoth) 3))
 (setq a (angle pt ptt))
 (setq b (angle pt (car (vl-remove ptt int))))
 (if (or (equal a b 1e- (> (length int) 2)) (setq tst (cons T tst)) (setq tst (cons nil tst)))
 (vla-delete lin)
 (if (eval (cons 'and tst)) (setq result nil) (setq result T))
 result
)

(defun c:populate ( / BNAME DX DXX DY DYY ENT ENTA MAXPOINT MAXPT MINPOINT MINPT MSP NO PT SCF SCFF SCFFMIN ) (vl-load-com)
 (setq ent (car (entsel "\nPick 2D closed entity")))
 (while (eq (cdr (assoc 70 (entget ent))) 0)
   (prompt "\nPicked entity is open, please pick closed one")
   (setq ent (car (entsel "\nPick 2D closed entity")))
 )
 (setq entA (vlax-ename->vla-object ent))
 (setq msp (vla-get-modelspace (vla-get-activedocument (vlax-get-acad-object))))
 (vla-getboundingbox entA 'minpoint 'maxpoint)
 (setq
  minpt (vlax-safearray->list minpoint)
  maxpt (vlax-safearray->list maxpoint)
 )
 (setq dx (- (car maxpt) (car minpt)))
 (setq dy (- (cadr maxpt) (cadr minpt)))
 (initget 6)
 (setq no (getint "\nInput number of blocks to populate : "))
 (setq bname "")
 (while (not (tblsearch "BLOCK" bname))
   (setq bname (getstring T "\nInput name of block to populate (CASE UNSENSITIVE) : "))
 )
 (initget 6)
 (setq scf (getreal "\nInput max. scale factor for block insertion <1.0> : "))
 (if (null scf) (setq scf 1.0))
 (initget 6)
 (setq scfmin (getreal "\nInput min. scale factor for block insertion <1.0> : "))
 (if (null scfmin) (setq scfmin 1.0))
 (while (> no 0)
   (setq dxx (* dx (rnd)))
   (setq dyy (* dy (rnd)))
   (setq pt (list (+ (car minpt) dxx) (+ (cadr minpt) dyy) 0.0))
   (if (and (eq scfmin 1.0) (eq scf 1.0)) (setq scff 1.0) (setq scff (+ scfmin (* (- scf scfmin) (rnd)))))
   (if (ptinsideent pt ent)
     (progn
       (setq no (1- no))
       (vla-insertblock msp (vlax-3d-point pt) bname scff scff scff (* 2 pi (rnd)))
     )
   )
 )
 (princ)
)

Regards, M.R.

:thumbsup:

Edited by marko_ribar
marko_ribar Veteran

marko_ribar

Posted
Posted

Another slower version, but spreading is better...



(defun rnd (/ modulus multiplier increment rand)
 (if (not seed)
   (setq seed (getvar "DATE"))
 )
 (setq modulus    65536
       multiplier 25173
       increment  13849
       seed  (rem (+ (* multiplier seed) increment) modulus)
       rand     (/ seed modulus)
 )
)

(defun ptinsideent ( pt ent / ss result )
 (setq ss (ssget "_X"))
 (vl-cmdf "_.-boundary" "a" "b" "n" ent "" "" pt "")
 (if (> (sslength (ssget "_X")) (sslength ss)) (progn (setq result T) (entdel (entlast))) (setq result nil))
 result
)

(defun c:populate ( / BNAME DX DXX DY DYY ENT ENTA MAXPOINT MAXPT MINPOINT MINPT MSP NO PT SCF SCFF SCFFMIN ) (vl-load-com)
 (setq ent (car (entsel "\nPick 2D closed entity")))
 (while (eq (cdr (assoc 70 (entget ent))) 0)
   (prompt "\nPicked entity is open, please pick closed one")
   (setq ent (car (entsel "\nPick 2D closed entity")))
 )
 (setq entA (vlax-ename->vla-object ent))
 (setq msp (vla-get-modelspace (vla-get-activedocument (vlax-get-acad-object))))
 (vla-getboundingbox entA 'minpoint 'maxpoint)
 (setq
  minpt (vlax-safearray->list minpoint)
  maxpt (vlax-safearray->list maxpoint)
 )
 (setq dx (- (car maxpt) (car minpt)))
 (setq dy (- (cadr maxpt) (cadr minpt)))
 (initget 6)
 (setq no (getint "\nInput number of blocks to populate : "))
 (setq bname "")
 (while (not (tblsearch "BLOCK" bname))
   (setq bname (getstring T "\nInput name of block to populate (CASE UNSENSITIVE) : "))
 )
 (initget 6)
 (setq scf (getreal "\nInput max. scale factor for block insertion <1.0> : "))
 (if (null scf) (setq scf 1.0))
 (initget 6)
 (setq scfmin (getreal "\nInput min. scale factor for block insertion <1.0> : "))
 (if (null scfmin) (setq scfmin 1.0))
 (while (> no 0)
   (setq dxx (* dx (rnd)))
   (setq dyy (* dy (rnd)))
   (setq pt (list (+ (car minpt) dxx) (+ (cadr minpt) dyy) 0.0))
   (if (and (eq scfmin 1.0) (eq scf 1.0)) (setq scff 1.0) (setq scff (+ scfmin (* (- scf scfmin) (rnd)))))
   (if (ptinsideent pt ent)
     (progn
       (setq no (1- no))
       (vla-insertblock msp (vlax-3d-point pt) bname scff scff scff (* 2 pi (rnd)))
     )
   )
 )
 (princ)
)



Regards, M.R.
