screwdriver.

[jester[AUT]]

HI!



This is the second time I work with rhino,so I need some tips to do this.



I have to model my screwdriver in 3d and I don't know with what I should begin.

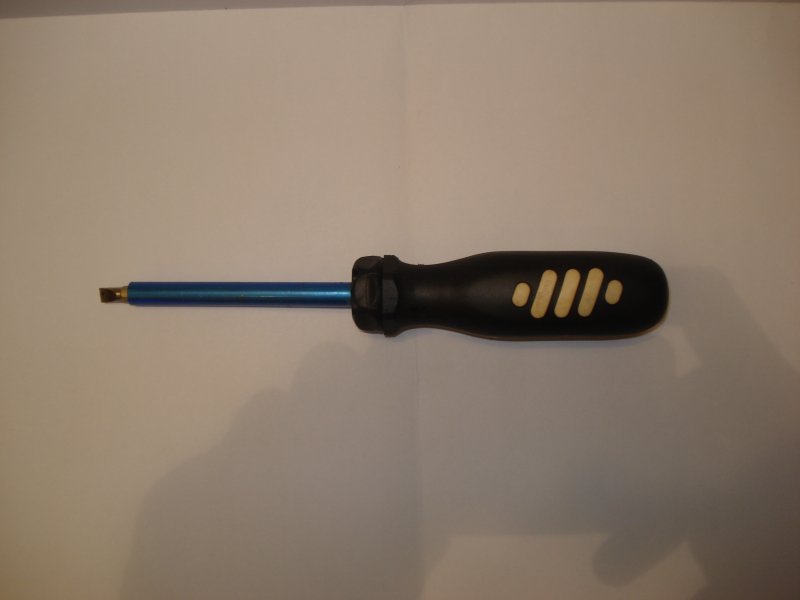

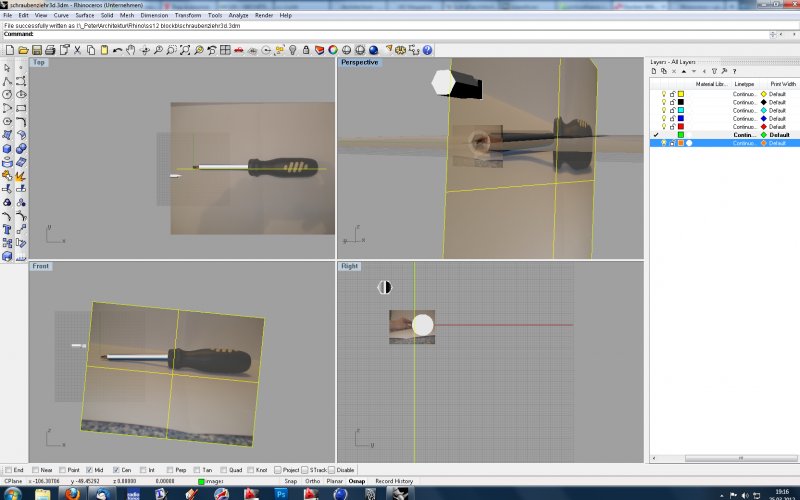

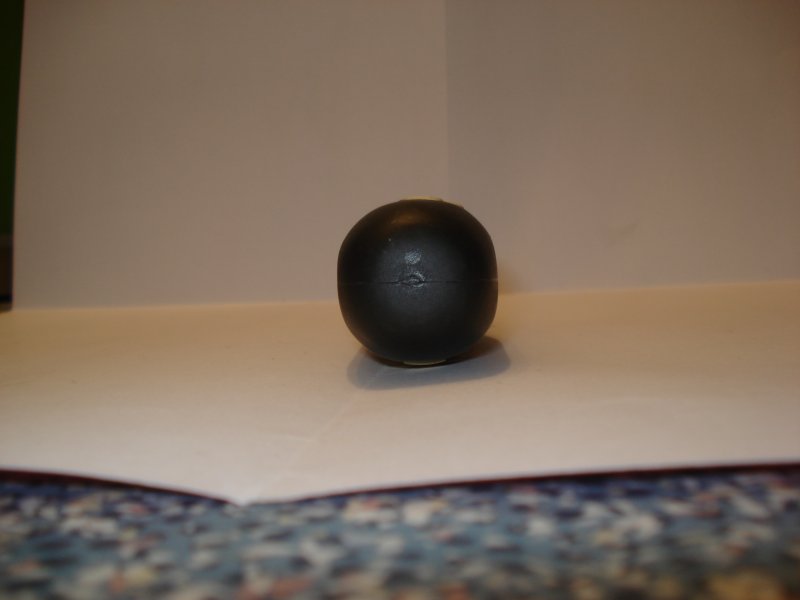

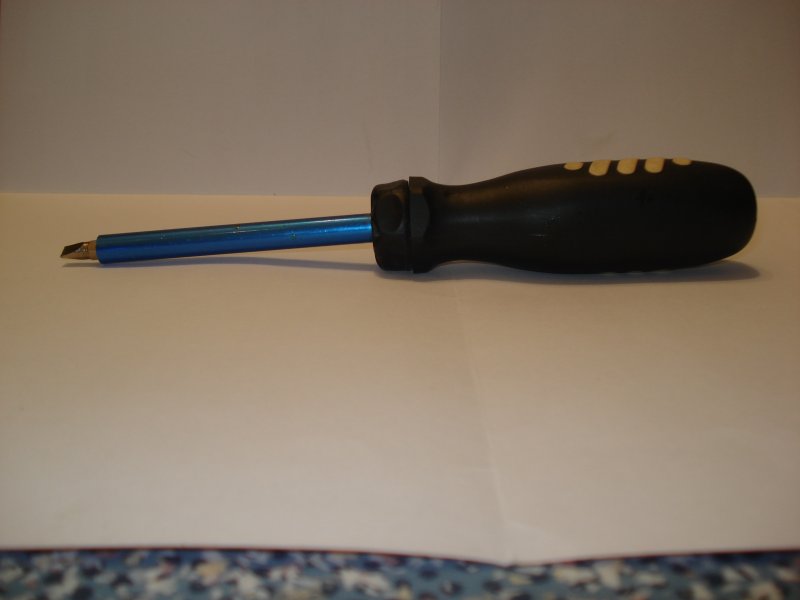

my task is to take photos of my screwdriver and add them in the front, top, and right view. Then I change the picture size to the original size of the screwdriver...

I did that, but if I have the shade mode on I don't see the content of the picture and if I have the rendering view on I don't see the lines.



I dont know how to do the grip. It is round and has corner... maybe curves?



greeds,

jester





[dedmin]



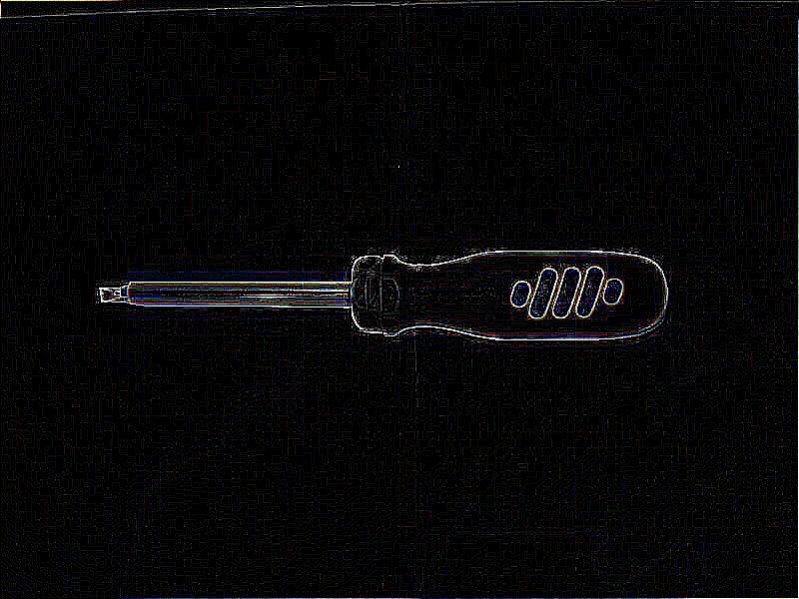

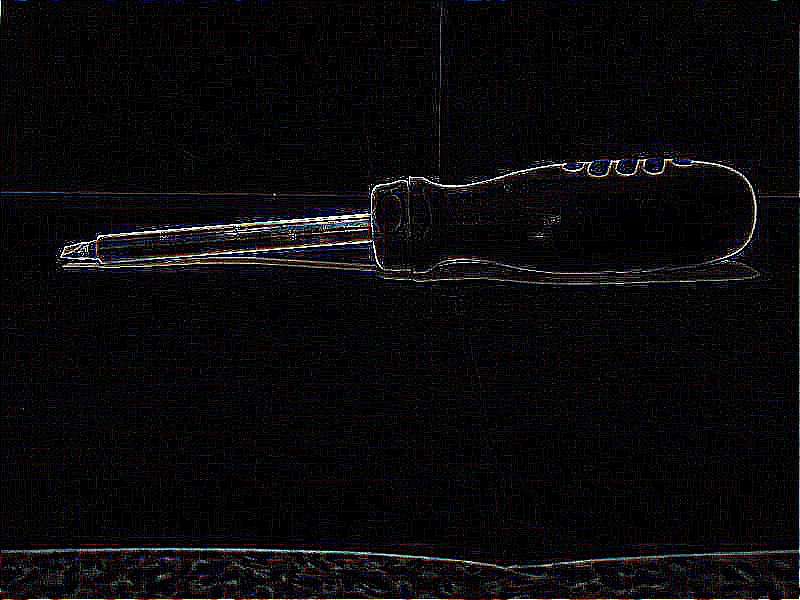

2 minutes in Gimp using edges filter

[jester[AUT]]

[ATTACH=CONFIG]33818[/ATTACH][ATTACH=CONFIG]33819[/ATTACH][ATTACH=CONFIG]33820[/ATTACH]



2 minutes in Gimp using edges filter







Thanks, but it is not really what I need. I need to now how to make the surface that it gets its special shape.



[dedmin]

http://vimeo.com/15231979

Watch this for ideas -

[jester[AUT]]

thanks for the link

[jester[AUT]]

I only see either the green line (shademode) or the picture (rendermode). What shall I do to see both???

[jester[AUT]]

what's the best way to do the yellow stripes on the grip?? cheers

[dedmin]

;468366']what's the best way to do the yellow stripes on the grip?? cheers

Draw the stripes as 2d profiles and project them onto the handle.



Edited April 14, 2012 by dedmin

[jester[AUT]]

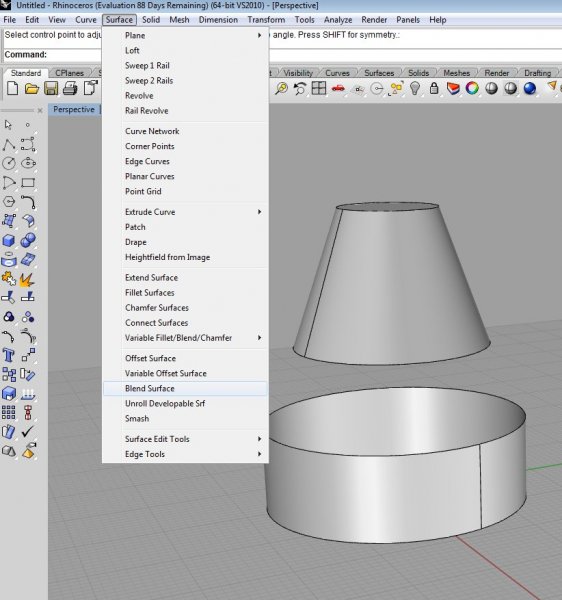

I need to do a smooth transition from one object to another. I ve parted my grip into two parts.



here is an image to illustrate it







@ dedmin. thank you, dude. and thank you for your efforts to create an example.

[dedmin]

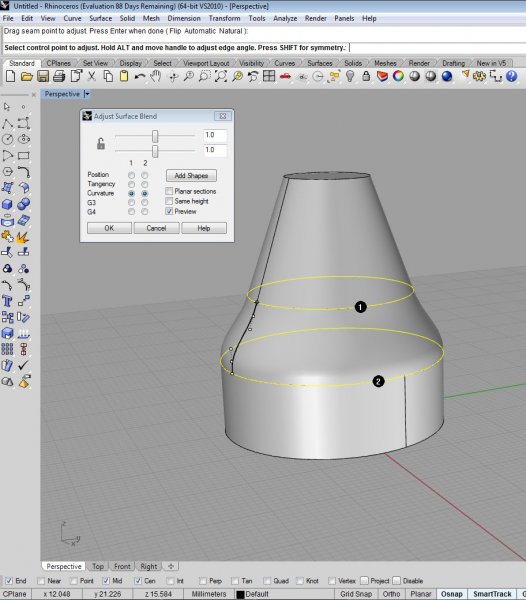

Use blend surfaces and play with the settings

[jester[AUT]]

blend [x]checked

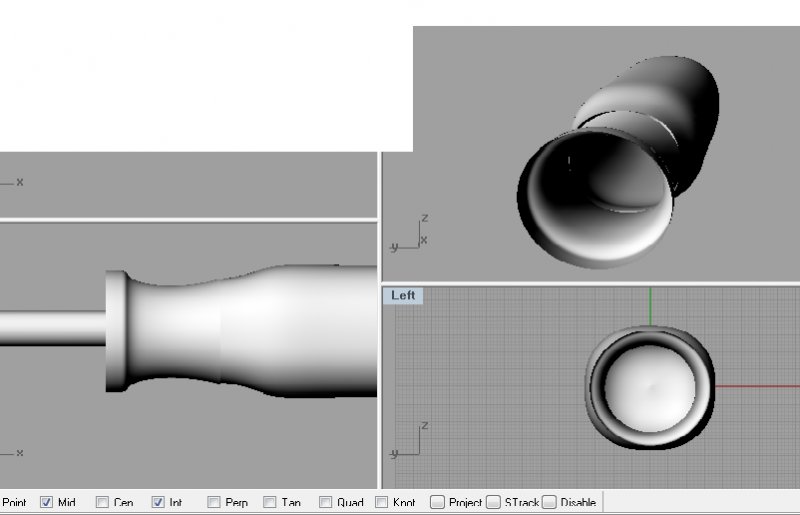

the last step to model this work:

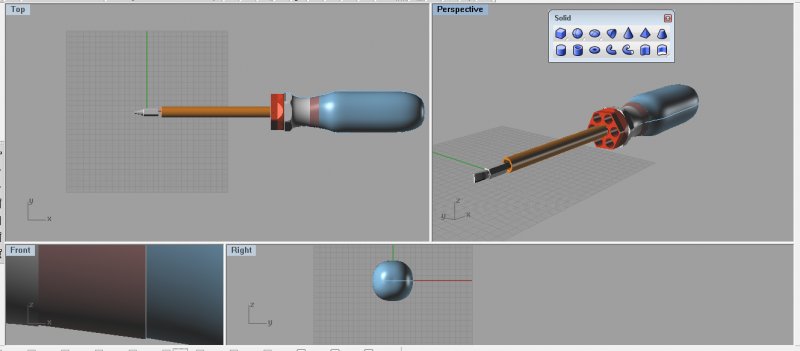

I would like to do the indentation of the red part in the image. it is a surface. every time I try to change it, it ends to a disaster. maybe i use the wrong tools.

[jester[AUT]]

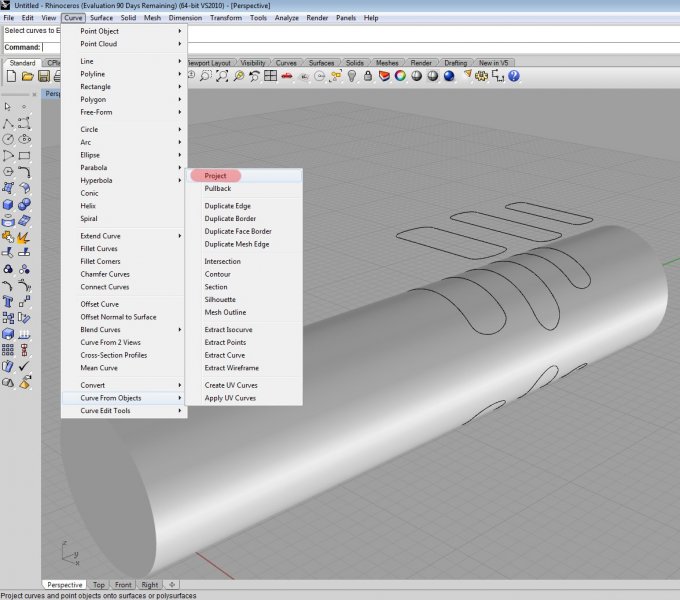

Draw the stripes as 2d profiles and project them onto the handle.



[ATTACH=CONFIG]34182[/ATTACH]



how can I extrude them. If I try that, only the margins go up.

[dedmin]

Surface - Patch then Offset Surface with Solid=Yes

[dedmin]

blend [x]checked





the last step to model this work:



I would like to do the indentation of the red part in the image. it is a surface. every time I try to change it, it ends to a disaster. maybe i use the wrong tools.

Attached Images





Try offset surface

[jester[AUT]]

I ve made a rod and after that: "arraypolar"

finally i used fillet edge.



it doesnt look as well as on the picture, but it's ok.





I am still working on the stripes... I m attempting to make a patch surface...

[jester[AUT]]

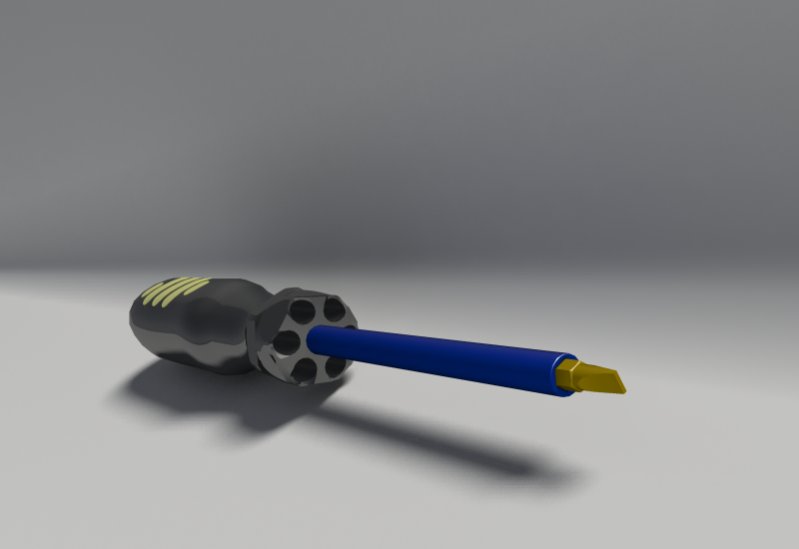

the result, after maya rendering:

[dedmin]

;469987']the result' date=' after maya rendering:[/quote']

Keep it up - it is just the beginning!

[jester[AUT]]

by the way: i ve also controlled my edges with the analys tool, so I can see which one is alone. Consequently, you can avoid terrible rendering results...
