megamind Posted February 23, 2012 Posted February 23, 2012 hi how are you doing guys? I'm using autocad 2012 when i set a line as a center line it doesn't change it remains like a continuous line please help!! thanks in advance Quote
nestly Posted February 23, 2012 Posted February 23, 2012 The drawing scale is likely either so large that you can't see the breaks in the line, or so small that the line is not long enough to display more than one segment. To test this, change the drawing scale to 1:1 in the lower right corner of the status bar, then draw a new line 20 units long using the "Centerline" linetype. Quote
SLW210 Posted February 23, 2012 Posted February 23, 2012 Are you using a metric linetype (acadiso.lin) or an imperial (acad.lin)? What is the drawing, imperial or metric? Quote
ScribbleJ Posted February 23, 2012 Posted February 23, 2012 In addition to the previous suggestions: How are you changing this? Through your layer manager or the properties of the line itself? If through the layer manager it is not changing, then check the lines properties to see if it is set to ByLayer or if the line type is specified. Quote
megamind Posted February 23, 2012 Author Posted February 23, 2012 you're right !! when i zoom in i can see the breaks but the scale is already 1:1 and i still have to zoom in to see the breaks I want to see the breaks without zoom in, do u know how? thank you very much Quote
SLW210 Posted February 23, 2012 Posted February 23, 2012 you're right !!when i zoom in i can see the breaks but the scale is already 1:1 and i still have to zoom in to see the breaks I want to see the breaks without zoom in, do u know how? thank you very much Are you using a metric linetype (acadiso.lin) or an imperial (acad.lin)? What is the drawing, imperial or metric? What is _LTSCALE =? Quote
megamind Posted February 23, 2012 Author Posted February 23, 2012 how can i know the line type? Quote
nestly Posted February 23, 2012 Posted February 23, 2012 Pick a scale that's appropriate for the size of your drawing. For example, if you're working in Imperial units, changing the scalebox to 1/4"-1'-0" will make each segment display 48x larger. For a metric drawing 1:50 would make each segment appear 50x larger. Edit, you'll have to REGEN the drawing for the linetypes to regenerate after you change the scale if you're working in Modelspace. Quote
SLW210 Posted February 23, 2012 Posted February 23, 2012 _LTYPE then select [Load] button beside file you should have acadiso.lin Quote
SLW210 Posted February 23, 2012 Posted February 23, 2012 Try adjusting your LTSCALE. Can you post the drawing here? Quote

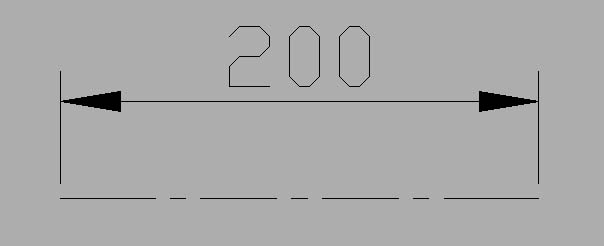

eldon Posted February 23, 2012 Posted February 23, 2012 How long is your line? This is a picture of a line 200 long, linetype Centre, metric units, LTSCALE = 1 Quote
megamind Posted February 23, 2012 Author Posted February 23, 2012 i solved the problem by adjusting the scale from 1:1 to 1:10 thank you all guys i really appreciate your help but i still have one more question:D if i use a large scale like 1:10 would it be large in hard copy too? or it's only large on the computer thanks a lot Quote
nestly Posted February 23, 2012 Posted February 23, 2012 Assuming you don't apply Linetype scale overrides somewhere else, the lines and dashes should print the same as they're displayed on the screen. Quote
