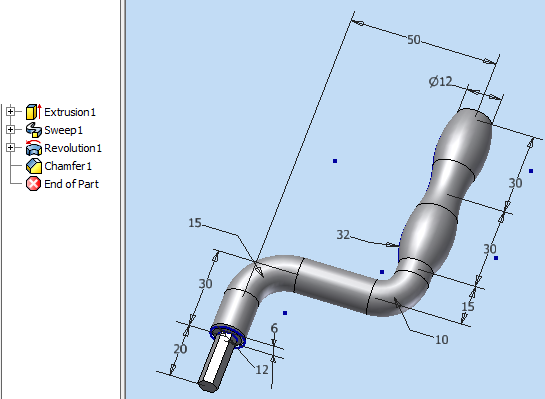

stevep80 Posted February 18, 2012 Share Posted February 18, 2012 I have recently started inventor with my college class and this is part of my first assessment. Can anyone help with what would be the best way to do this handle sweep or revolve Thanks in advance Quote Link to comment Share on other sites More sharing options...
JD Mather Posted February 18, 2012 Share Posted February 18, 2012 (edited) Extrude, Sweep and Revolve. Extrude the hex. Sweep the S-curve. Revolve the handle. Finish with chamfer. One of the dimensions is incorrect. Arcs should be dimensioned as R not Ø and I suspect when the mistake was made the value was halved. Edited February 18, 2012 by JD Mather Quote Link to comment Share on other sites More sharing options...
stevep80 Posted February 18, 2012 Author Share Posted February 18, 2012 Thanks for the tip JD Mather I'll give that a try just now!! Quote Link to comment Share on other sites More sharing options...
