A square roof and 4 equal faces.

[Casusa]

Hi.

Can you help me with a simple one?



A square roof and 4 equal faces.



Thanks.

[ReMark]

Hi.

Can you help me with a simple one?



A square roof and 4 equal faces.



Thanks.



Is this a gabled roof?



You'll have to post an image or a DWG file so we know exactly what we are talking about.

[Casusa]

Hi.

Here is a dwg, i think i've atatched him right.

ROOF.dwg

[topcadexperts]

Hi.

Can you help me with a simple one?



A square roof and 4 equal faces.



Thanks.



Hi Casusa,



Try this step by step http://topcadexperts.net/blog/2009/05/17/hip-tip-3d-roof-in-autocad-20042010/



The only diference is that the 2D shape is a square (better saying a rectangle).

[ReMark]

It would certainly be most helpful if you could tell us what kind of pitch you had in mind too.



Just curious. I get dimensions on your rectangle of 3x4. That's meters?



Are you creating this roof as a solid or a surface?

[Casusa]

Hi.



Yes 3x4 meters, is simple concrete roof, and the idea is doing it as a solid.



Thanks

[ReMark]

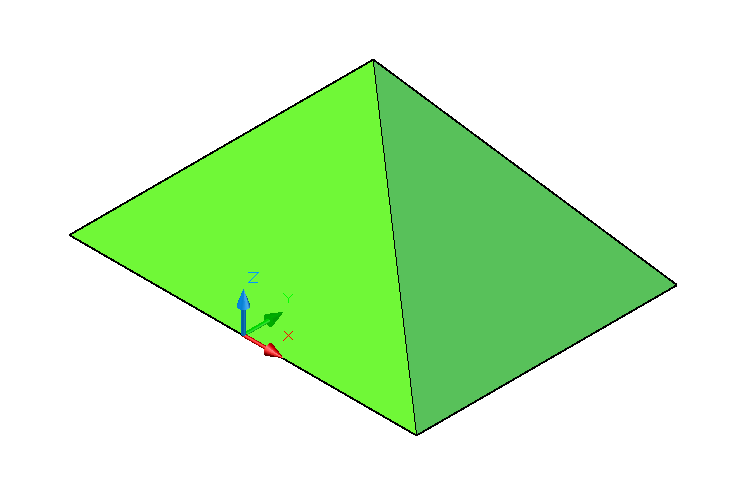

Here is one way to give the appearance of a roof.

Created using the 3DPolyline and Region commands.

Shown using the Conceptual visual style.

Roof at peak is 2 units high (using your base drawing).

[ReMark]

Hi.



Yes 3x4 meters, is simple concrete roof, and the idea is doing it as a solid.



Thanks



A roof like this in concrete? Really?

[Casusa]

Yeah.



Tahnks.



It solved.

[ReMark]

I'd like to see your solution plus I'd like to know how you are supporting the roof.

[SLW210]

You could also _LOFT the base to a POINT.

[topcadexperts]

Yeah.



Tahnks.



It solved.



Hi Casusa,



I would like to learn from you if you have seen my Hip Tip.



Cheers

[ReMark]

I think he came here, got what he needed and won't be back until the next problem comes to light.

[SLW210]

I moved this question to its own thread, since it was actually not related to the other thread. Please start new threads when you have a question.

[Dana W]

Well, at any rate, a roof 3x4 meters absolutely will NOT have 4 equal faces, so maybe the OP will get a "C" on your homework.

[Jack_O'neill]

Well, at any rate, a roof 3x4 meters absolutely will NOT have 4 equal faces, so maybe the OP will get a "C" on your homework.



You noticed that too, huh? Even in a backwards place like Arkansas, 3 does not equal 4.



Didn't they build roofs like this a few thousand years ago in Egypt?

[Casusa]

A roof like this in concrete? Really?



Sorry, beams and bricks.



Thanks again.

[Casusa]

Hi Casusa,



I would like to learn from you if you have seen my Hip Tip.



Cheers



Yes i did solve the problem using your tip. Thanks again.

[Casusa]

I moved this question to its own thread, since it was actually not related to the other thread. Please start new threads when you have a question.



Sorry my mistake.



I nedd more help with another roof, this one more complex.



This one is with beams and tiles, with an aproximate of 15% inclination for the tow master slopes confine in a vertex.



May i leave the dwg here to get some help how to 3D him or is better to open another topic?



Thanks

ROOF.dwg

[Jack_O'neill]

Sorry, beams and bricks.



Thanks again.



Bricks for roofing? That's even more interesting than concrete. Is this a real project or something you're doing for school or fun? If it's real, and it gets built, take a pic and send it to me. I'd like to see that. Would certainly be different.
