cfrydawg

By cfrydawg
in AutoCAD Drawing Management & Output

 Share

Recommended Posts

cfrydawg Contributor

cfrydawg

Posted
Posted

He guys I need hidden lines in my drawings for the shop floor and the pictures below is the problem. It shows the hidden lines in the veiwport in paper layout but when I print preview or print i does not show them at all. any ideas windows 7 autocad 2007.



Any Ideas???????????????

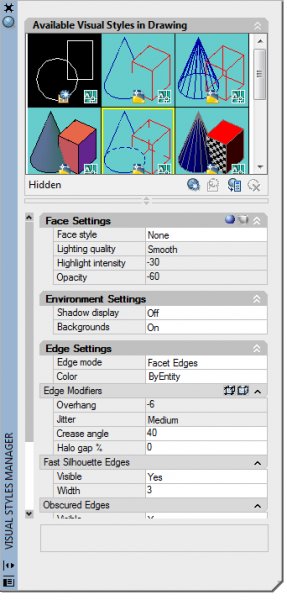

visual settings top.jpg

visual settings.jpg

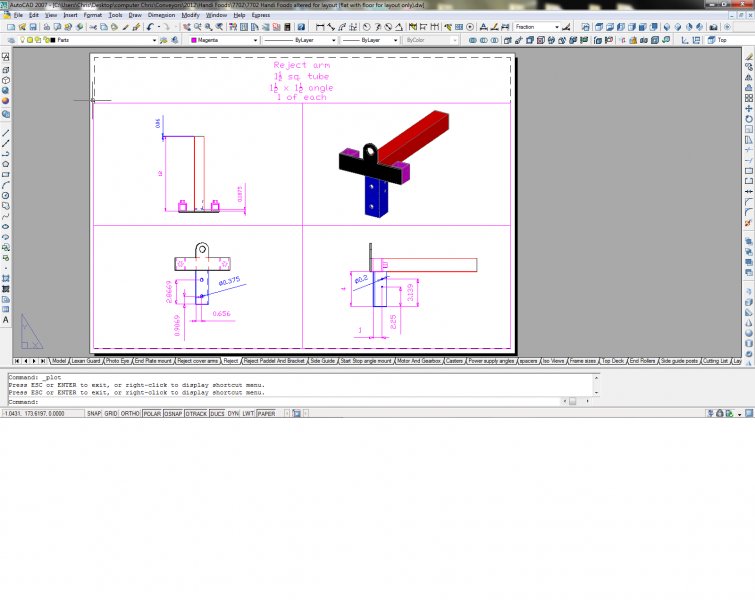

hidden lines before plot.jpg

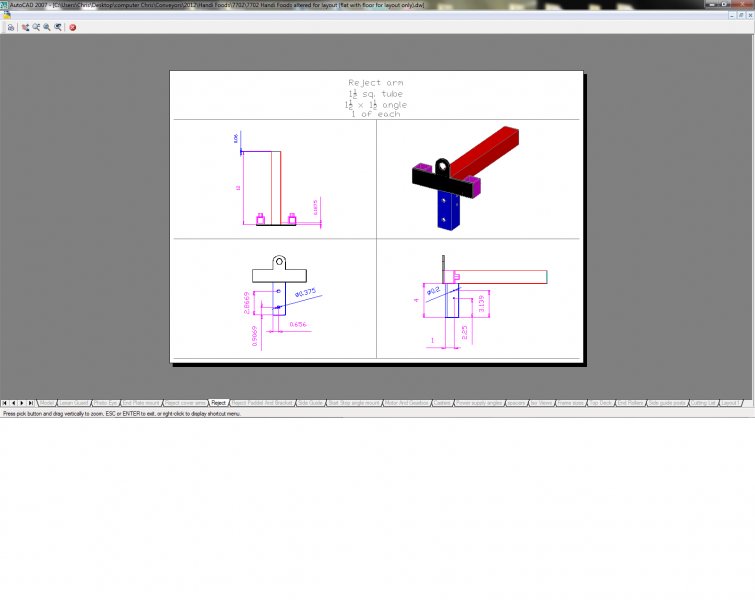

Missing hidden lines.jpg
