How to do this handle????

[stevep80]



Anyone help on how to do this handle????

Currently studying a CAD course and have got stuck doing this!!!!

Using Autocad 2012 so anyone that could help would be greatly appreciated.

[ReMark]

Sweep a circle along the centerline path of the handle.

[stevep80]



Hi all



I've managed to sweep some of this but it wont seem to do the rads at each end

Anyone help or some ideas would come in handy



Steve

[ReMark]

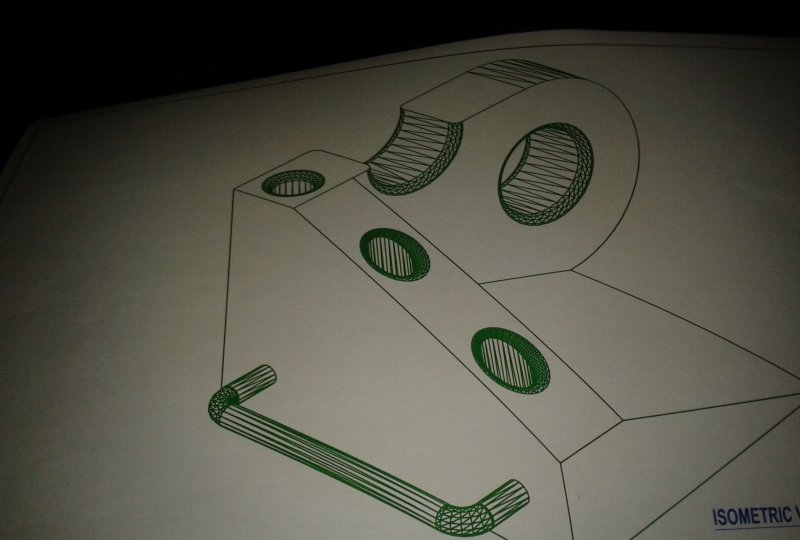

You are talking about the "U" shaped handle on the side of the object pictured above right?

[SLW210]

Please keep the same question in the same thread.



Please post what you have accomplished thus far.

[ReMark]

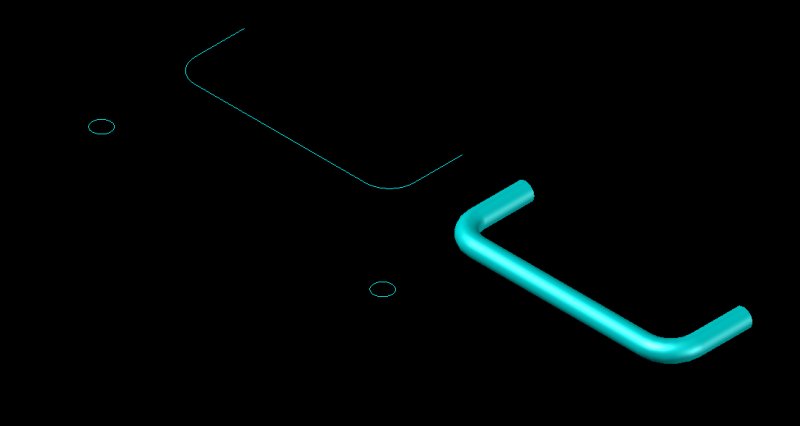

Is this what you are trying to do?

[stevep80]

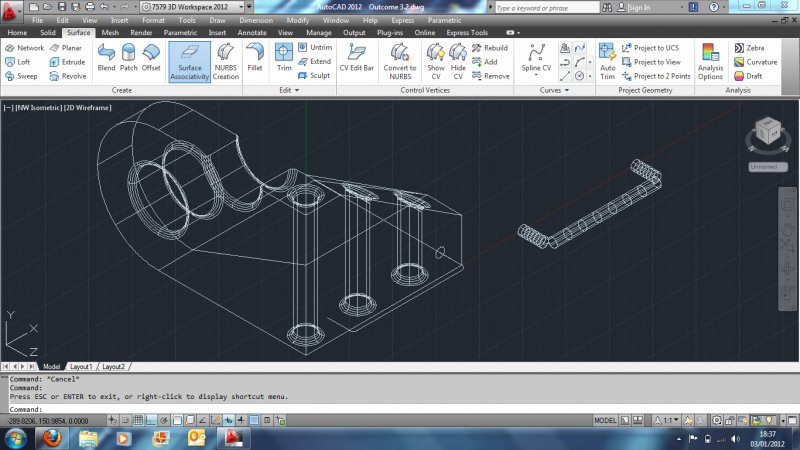

Here's what i have so far just can't seem to get the rest of it.

Bet its simple.

[ReMark]

Yes, if you had followed my original advice back when you posted the question the first time (as demonstrated in post #6 above). Create the centerline profile (a single, radiused polyline) then use the Sweep command with the appropriate sized circle. Simple.



I have a feeling you have three line segments and two arcs and that's why you got the results you did. You can combine all these entities into a single polyline by using the PEDIT command and its JOIN option.

[stevep80]

Yeah i understand now, I wasn't using a polyline before.

Many thanks for your help.
