How to select the cell in a table

November 8, 2011

Dear all,

Please explain with examples to select some cells in a autoCAD table and it should return the row and column index.

How to apply the below fucntions in lisp?

vla-SelectSubRegion

vla-Select

November 8, 2011

This thread may help you.

November 9, 2011

To get the Row and Column number for a table with an existing value on a cell via selection on screen:

Try HitTest

(defun c:test (/ a b c)
(setq a (entsel)
     b (vlax-ename->vla-object (car a)))
(vla-HitTest
  b
  (vlax-3d-point (cadr a))
  (vlax-3d-point (trans (getvar 'ViewDir) 1 0))
  'Rw
  'Cl
)
 (print rw)
 (print cl)
 ;;;; (do your thing here...) ;;;;
   (princ)
 )

Otherwise use Lee's code

November 9, 2011

Dear Lee,

I have achieved my requirement by my code given below. But only thing is i want to highlight the cells the user selected. The method (Vla-highlight) is high lighting the whole table. Please suggest me.

;*******************************************************************************************
;*******************************************************************************************
;*******************************************************************************************
(defun C:adt (/ *number* *pt1* *pt2* atable sset)
 (Setq *pt1* (getpoint "\nPick First Corner in a table")
       *pt2* (getcorner *pt1* "\nPick other corner in same table")
 )
 (setq sset (Ssget "C" *pt1* *pt2* '((0 . "ACAD_TABLE"))))
 (if (and sset (= (sslength sset) 1))
   (progn (setq *number* (getreal "\nNumber to be added : "))
          (Setq atable (vlax-ename->vla-object (ssname sset 0)))
          (update_selected_cells atable)
   )
   (Alert "Please select Inside of single table")
 )
 (princ)
)
;*******************************************************************************************
;*******************************************************************************************
;*******************************************************************************************
(defun check_falling (pt corner_pt1 corner_pt2 / result x1 x2 y1 y2)
 (setq x1 (min (Car corner_pt1) (Car corner_pt2))
       x2 (max (Car corner_pt1) (Car corner_pt2))
       y1 (min (Cadr corner_pt1) (Cadr corner_pt2))
       y2 (max (Cadr corner_pt1) (Cadr corner_pt2))
 )
 (if (and (> (Car pt) x1)
          (< (Car pt) x2)
          (> (Cadr pt) y1)
          (< (Cadr pt) y2)
     )
   (setq result t)
   (setq result nil)
 )
 result
)
;*******************************************************************************************
;*******************************************************************************************
;*******************************************************************************************
(defun update_selected_cells (atable      /           #i          #list       column_no
                             dum_pt1     dum_pt2     dum_pt3     dum_pt4     i
                             list_of_cells           new_str     no_of_columns
                             no_of_rows  old_str     return_list row_no      sset
                             text        x
                            )
 (setq no_of_rows    (vla-get-rows atable)
       no_of_columns (vla-get-columns atable)
       row_no        0
 )
 (repeat no_of_rows
   (Setq column_no 0)
   (repeat no_of_columns
     (Setq return_list (vlax-safearray->list
                         (vlax-variant-value (vla-GetCellExtents atable row_no column_no t))
                       )
     )
     (Setq dum_pt1 (extract_list 0 2 return_list)
           dum_pt2 (extract_list 3 5 return_list)
           dum_pt3 (extract_list 6 8 return_list)
           dum_pt4 (extract_list 9 11 return_list)
     )
     (if (or (check_falling dum_pt1 *pt1* *pt2*)
             (check_falling dum_pt2 *pt1* *pt2*)
             (check_falling dum_pt3 *pt1* *pt2*)
             (check_falling dum_pt4 *pt1* *pt2*)
         )
       (setq list_of_cells (append list_of_cells (list (list row_no column_no))))
     )
     (Setq column_no (1+ column_no))
   )
   (Setq row_no (1+ row_no))
 )
 (mapcar '(lambda (x)
            (Setq text (vla-gettext atable (Car x) (cadr x)))
            (Setq #list (reverse (vl-string->list text)))
            (if #list
              (progn (setq i 0)
                     (while (or (and (>= (nth i #list) 48) (<= (nth i #list) 57))
                                (= (nth i #list) 46)
                            )
                       (Setq i (1+ i))
                     )
                     (if (> i 0)
                       (progn (Setq old_str (substr text 1 (- (strlen text) i)))
                              (setq new_str
                                     (Strcat old_str
                                             (rtos (+ (atof (substr text (- (strlen text) (1- i)) (strlen text)))
                                                      *number*
                                                   )
                                                   2
                                                   0
                                             )
                                     )
                              )
                              (vla-settext atable (Car x) (cadr x) new_str)
                       )
                     )
              )
            )
          )
         list_of_cells
 )
)
;*******************************************************************************************
;*******************************************************************************************
;*******************************************************************************************
(defun extract_list (#start #end #List / #Index cnt)
 (setq cnt -1)
 (vl-remove-if '(lambda (x) (setq cnt (1+ cnt)) (or (< cnt #start) (> cnt #end)))
               #List
 )
)
;*******************************************************************************************
;*******************************************************************************************
;*******************************************************************************************

This thread may help you.

November 9, 2011

Quick example:

(defun c:test ( / _ss->lst _hit-test acapp acdoc l1 l2 p1 p2 pt ss )

   ;; Example by Lee Mac 2011  -  www.lee-mac.com

   (defun _ss->lst ( ss / i lst )
       (repeat (setq i (sslength ss))
           (setq lst (cons (vlax-ename->vla-object (ssname ss (setq i (1- i)))) lst))
       )
   )

   (defun _hit-test ( pt lst )
       (vl-some
           (function
               (lambda ( obj / row col )
                   (if
                       (eq :vlax-true
                           (vla-hittest obj (vlax-3D-point (trans pt 1 0))
                               (vlax-3D-point (trans (getvar 'VIEWDIR) 1 0)) 'row 'col
                           )
                       )
                       (list obj row col)
                   )
               )
           )
           lst
       )
   )

   (setq acapp (vlax-get-acad-object)
         acdoc (vla-get-activedocument acapp)
   )
   (if (setq ss (ssget "_X" (list (cons 0 "ACAD_TABLE") (cons 410 (getvar 'CTAB)))))
       (progn
           (setq ss (_ss->lst ss))
           (while
               (and
                   (setq p1 (getpoint "\nSpecify First Corner: "))
                   (not (setq l1 (_hit-test p1 ss)))
               )
               (princ "\nPoint does not lie in Table Cell.")
           )
           (if p1
               (progn
                   (while
                       (and
                           (setq p2 (getcorner p1 "\nSpecify Opposite Corner: "))
                           (not (setq l2 (_hit-test p2 (list (car l1)))))
                       )
                       (princ "\nPoint not valid.")
                   )
                   (if p2
                       (vla-setsubselection (car l1) (cadr l1) (cadr l2) (caddr l1) (caddr l2))
                   )
               )
           )
       )
       (princ "\nNo Tables found in drawing.")
   )
   (princ)
)
(vl-load-com) (princ)

November 9, 2011

sorry Herr Lee

November 9, 2011

Quick example:

(defun c:test ( / _ss->lst _hit-test acapp acdoc l1 l2 p1 p2 pt ss )

   ;; Example by Lee Mac 2011  -  www.lee-mac.com

   (defun _ss->lst ( ss / i lst )
       (repeat (setq i (sslength ss))
           (setq lst (cons (vlax-ename->vla-object (ssname ss (setq i (1- i)))) lst))
       )
   )

   (defun _hit-test ( pt lst )
       (vl-some
           (function
               (lambda ( obj / row col )
                   (if
                       (eq :vlax-true
                           (vla-hittest obj (vlax-3D-point (trans pt 1 0))
                               (vlax-3D-point (trans (getvar 'VIEWDIR) 1 0)) 'row 'col
                           )
                       )
                       (list obj row col)
                   )
               )
           )
           lst
       )
   )

   (setq acapp (vlax-get-acad-object)
         acdoc (vla-get-activedocument acapp)
   )
   (if (setq ss (ssget "_X" (list (cons 0 "ACAD_TABLE") (cons 410 (getvar 'CTAB)))))
       (progn
           (setq ss (_ss->lst ss))
           (while
               (and
                   (setq p1 (getpoint "\nSpecify First Corner: "))
                   (not (setq l1 (_hit-test p1 ss)))
               )
               (princ "\nPoint does not lie in Table Cell.")
           )
           (if p1
               (progn
                   (while
                       (and
                           (setq p2 (getcorner p1 "\nSpecify Opposite Corner: "))
                           (not (setq l2 (_hit-test p2 (list (car l1)))))
                       )
                       (princ "\nPoint not valid.")
                   )
                   (if p2
                       (vla-setsubselection (car l1) (cadr l1) (cadr l2) (caddr l1) (caddr l2))
                   )
               )
           )
       )
       (princ "\nNo Tables found in drawing.")
   )
   (princ)
)
(vl-load-com) (princ)

Dear Mr.Lee,

Please refer the attachment for reference.

We need to highlight the selected cells by giving two points (two corner points).

November 9, 2011

Did you try the code?!?

November 9, 2011

Yes. But it doesn't highlight the cells.

November 9, 2011

Yes. But it doesn't highlight the cells.

What messages do you receive then? If any? Does the program error?

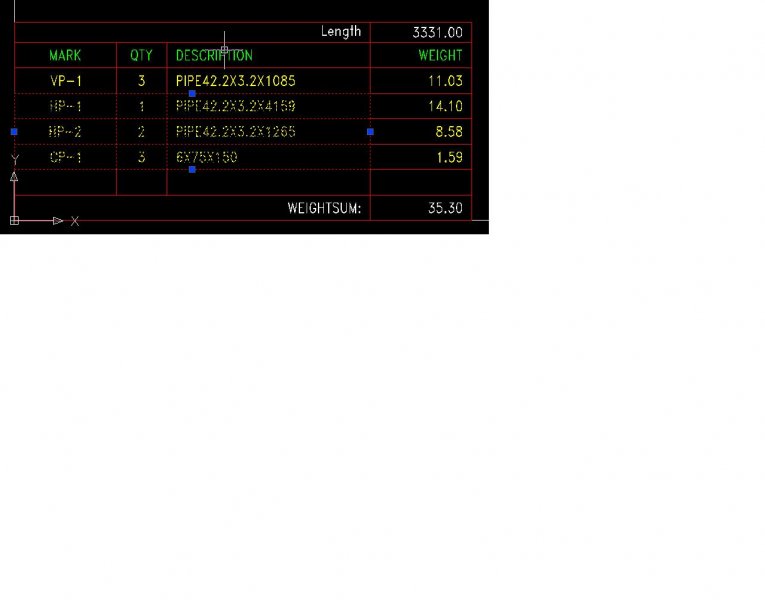

Here is the result on my system:

November 9, 2011

There is no error. But it is not high lighting as your image and simply executing.

November 9, 2011

This is the output from my system.

November 9, 2011

Here is my 2c

(vl-load-com)
;; local function by gile
(defun CrossProduct (v1 v2)
 (list (- (* (cadr v1) (caddr v2)) (* (caddr v1) (cadr v2)))
(- (* (caddr v1) (car v2)) (* (car v1) (caddr v2)))
(- (* (car v1) (cadr v2)) (* (cadr v1) (car v2)))
 )
)
(defun C:hitcell (/ acapp  adoc atable col cp1 cp2 midp pfset row vec    xdir ydir zdir)
           (if
      (and
 (setq cp1 (getpoint "\nSpecify First Cell Corner: "))
 (setq cp2 (getcorner cp1 "\nSpecify Opposite Corner: "))
 )
       (progn
  (setq midp (trans (mapcar (function (lambda (a b) (/ (+ a b) 2))) cp1 cp2)
      0
      1))
  (setq acapp (vlax-get-acad-object)
        adoc  (vla-get-activedocument acapp)
        pfset (vla-get-pickfirstselectionset adoc))
  (vla-clear pfset)
  (vla-select
    pfset
    acSelectionSetCrossing
    (vlax-3d-point cp1)
    (vlax-3d-point cp2)
    (vlax-safearray-fill
      (vlax-make-safearray vlax-vbinteger '(0 . 0))
      '(0))
    (vlax-safearray-fill
      (vlax-make-safearray vlax-vbvariant '(0 . 0))
      '("ACAD_TABLE")
      )
    )
  (if (> (vla-get-count pfset) 0)
    (progn
      (setq atable (vla-item pfset 0))
      (setq xdir (getvar "UCSXDIR")
     ydir (getvar "UCSYDIR")
     zdir (CrossProduct xdir ydir))

      (setq vec (vlax-make-variant
    (vlax-safearray-fill
      (vlax-make-safearray vlax-vbDouble '(0 . 2))
      zdir))
     )     ;<-- equal to :(setq vec (vlax-3d-point zdir))
      (if (eq :vlax-true
       (vla-hittest
         atable
         (vlax-3d-point (trans midp 1 0))
         vec
         'row
         'col))
        (vla-setsubselection atable row row col col)
        )
      )
    )
  )
      )
(princ)
)

~'J'~

November 10, 2011

Dear Mr.Fixo,

Thank you for your reply. But the result is same and it is not highlighting the cells. Now i have doubt that in my PC settings.
