Lt Dan's legs Posted October 25, 2011 Posted October 25, 2011 Anyone have one? I would like to create one but I'd love to see an example. Does anyone have one? Thanks Quote
ReMark Posted October 25, 2011 Posted October 25, 2011 Isn't there a tutorial here at CT about creating a tree in 3D? Quote
edwinprakoso Posted October 26, 2011 Posted October 26, 2011 Probably some free blocks on CAD Forum? Quote
Lt Dan's legs Posted October 26, 2011 Author Posted October 26, 2011 Remark, I have to admit I've never really browsed this site. I usually stick to the autolisp/visuallisp area. I'll look into it. thanks guys Quote

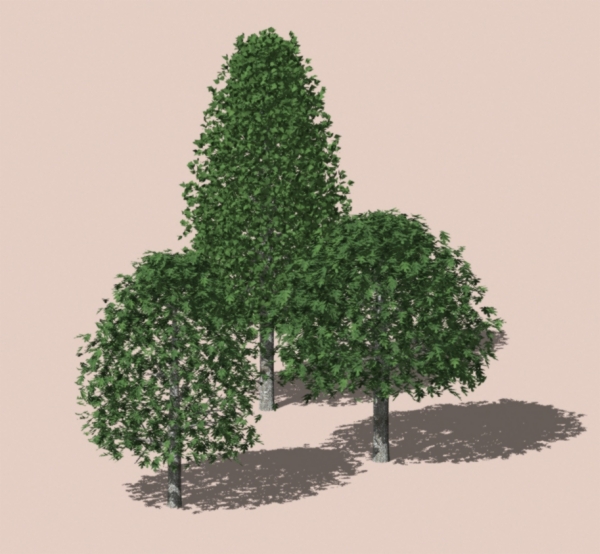

David Bethel Posted October 26, 2011 Posted October 26, 2011 This was as more about trying something new than a real need for me. It is a so so end result. -David 3DTREE.LSP Quote

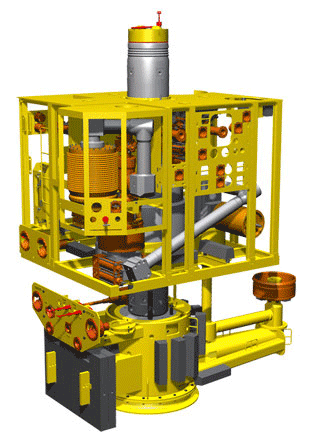

duyuanxin Posted October 28, 2011 Posted October 28, 2011 i have 3D tree ,if u like, i can email u. Quote
ReMark Posted October 28, 2011 Posted October 28, 2011 I was right re: 3D tree tutorial at CT. http://www.cadtutor.net/tutorials/autocad/3d-tree-exercise.php Quote

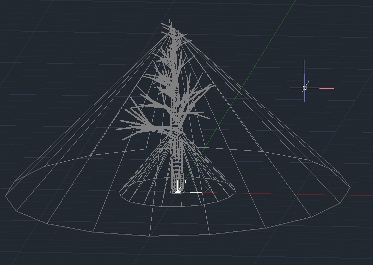

Bill Tillman Posted October 29, 2011 Posted October 29, 2011 This was as more about trying something new than a real need for me. It is a so so end result. -David David, this LISP routine looks pretty cool and is something I could use. But when I loaded it and ran it in AC 2012 I only ended up with a few branches and what looks like a big 3D Indian Tepee (cone). Can you give me a hand with how to get this producing real 3D trees like the ones in your post? Quote
Jack_O'neill Posted October 29, 2011 Posted October 29, 2011 David, this LISP routine looks pretty cool and is something I could use. But when I loaded it and ran it in AC 2012 I only ended up with a few branches and what looks like a big 3D Indian Tepee (cone). Can you give me a hand with how to get this producing real 3D trees like the ones in your post? I had a similar result in 2010. Apparently I don't know enough about trees to select the appropriate options. It's a cool program, none the less. Proof once again that you gotta be smarter than the stuff you're working on, and in this case, I'm not! Quote
Bill Tillman Posted October 29, 2011 Posted October 29, 2011 I had a similar result in 2010. Apparently I don't know enough about trees to select the appropriate options. It's a cool program' date=' none the less. Proof once again that you gotta be smarter than the stuff you're working on, and in this case, I'm not![/quote'] I read through most of the code but didn't pickup anything. I think the cones maybe something you could add a texture or apply a material to. Again, I didn't see anything in this code which indicated what needed to be done. Not to worry, I will wager that someone in the LISP community here will pick this up and explain it in a little more detail. There are some very talented code writers in this forum who have helped me in the past. Quote
Jack_O'neill Posted October 29, 2011 Posted October 29, 2011 I read through most of the code but didn't pickup anything. I think the cones maybe something you could add a texture or apply a material to. Again, I didn't see anything in this code which indicated what needed to be done. Not to worry, I will wager that someone in the LISP community here will pick this up and explain it in a little more detail. There are some very talented code writers in this forum who have helped me in the past. Oh yeah...these guys do stuff that just amaze me. Seeing as how it's a weekend, we may have to wait till monday to find out though. Are we the only poor sods working on Saturday? What is wrong with us? Quote

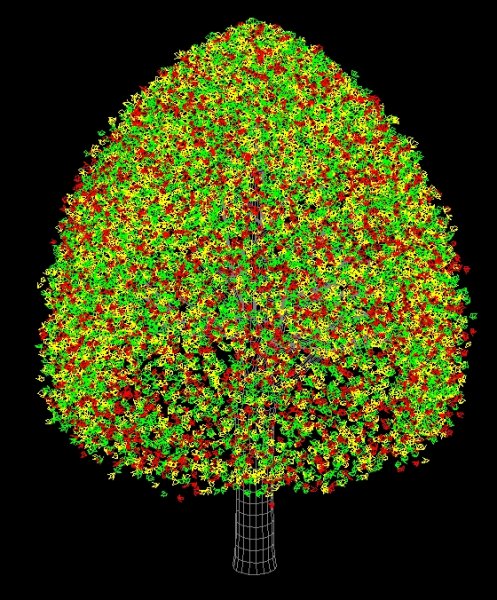

David Bethel Posted October 30, 2011 Posted October 30, 2011 Try these values: Command: (load "3DTREE") Command: 3dtree Microsoft Windows NT Version 6.1 (x86) Release Visual LISP 2004 (en) - 3D Trees .... All Units In English Inches Height Of Main Trunk: 480 Edge Of Crown Height Above Ground: 144 Edge Of Crown Diameter: 300 Middle of Crown Diameter: 280 Trunk Diameter <36.0>: Leaf Style 0=None 1=Heart 2=Diamond 3=Cluster 4=Pine 5=Oak 6=Cedar (0/1/2/3/4/5/6): 3 Max Leaf Spacing ( Circumference / 255 ): 3.70 Average Leaf Size: 3.7 Number Of Leaf Colors <1>: 3 Percent Of Crown To Leave Open 0-99: 0 Generic "TR-" or Unique ID Prefix For Model Tables: Building the Leaves... UCSVIEW = 1 UCS will be saved with view Mapping the Crown Points... Mapping the Leaf Points... Creating The Skeleton... Building the Block... Creating A 21330 Point Crown....Be Patient...It Took Nature 40 Yrs To Do This! 100.00% Making The Block... Insert Point: 0,0 Insert Angle <0>: Cleaning Up The Litter... If you need a really dense tree, polar array the tree about it's insert point. Each different color of leaf resides on a different layer to apply materials too. -David Quote
bora111bora Posted October 30, 2011 Posted October 30, 2011 very detailed tree i found on the internet (its was actually created in max, but i give it in dwg format). http://www.megaupload.com/?d=QBPFDW60 Quote
BIGAL Posted October 31, 2011 Posted October 31, 2011 Wow fantastic trees but resource hungry if you want simple 3d heres a simple way draw a trunk and branches in 2d add some random leaves what you would see if you sliced it with the chainsaw vertically. Ok now rotate3d and standup vertical, array it around the centre pt about 3-5 times 45 or 30 degs etc viewing in 3d a primitive tree just dont zoom to close. I will have a look at home for tree lisp it did something like above may be usefull used a different method to create if I find will post Quote
Bill Tillman Posted October 31, 2011 Posted October 31, 2011 I'm running the LISP routine just as I copied and pasted in from the previous posting in AutoCAD 2012. I used the setting recommended in the latest post and at least got a nice looking tree trunk and branches. But no leaves to speak of. Just two cones which when viewed in Realistic just look like an Indian Tepee. Is there something I'm missing here? Quote
ReMark Posted October 31, 2011 Posted October 31, 2011 You're not missing anything Bill. It's fall in New England. Trees drop their leaves! Quote
David Bethel Posted October 31, 2011 Posted October 31, 2011 I'm running the LISP routine just as I copied and pasted in from the previous posting in AutoCAD 2012. I used the setting recommended in the latest post and at least got a nice looking tree trunk and branches. But no leaves to speak of. Just two cones which when viewed in Realistic just look like an Indian Tepee. Is there something I'm missing here? Good old Adesk grrrrr Try MESHTYPE 0 I'll have to see what the other problems are...... -David Quote
Bill Tillman Posted November 3, 2011 Posted November 3, 2011 Ok, I set the variable MESHTYPE to 0 and at least got the leaves to draw in. This routune make a very impressive looking tree but I still end up with two gigantic cones which creates the need to do several EXPLODES so I can get rid of them and leave only the trunk, branches and the leaves. Any advice would be appreciated. Quote
David Bethel Posted November 3, 2011 Posted November 3, 2011 Bill, I haven't had time to dig in real deep and find what they changed. I know the program worked well thru 2004 and I think 2008. -David Quote
