making a wheel or a rim

[miedy12]

Hi guys i have a project but can someone help me plsss. How can i make a rim is there any tutorial or atleast what command should i learn first? thanks in advance

[f700es]

Revolve is the command you want to research

[SLW210]

Then you need to learn about LOFT, EXTRUDE, PRESSPULL.



Look around, there should be some threads on Wheels and Tires.

[miedy12]

noted. Thanks a lot guys.

[miedy12]

if i remember revolve is the command that u can make a half right? likfe 360 degrees?

[SLW210]

Yea, just draw a cross section of the rim and revolve. Like this.

Edited October 6, 2011 by SLW210
Some folks are too picky.

[JD Mather]

You might want to set viewres 2000 facetres 10

[miedy12]

thanks i just make a rim but my problem is the center part . i cant find wheels and tires section here?

[miedy12]

cand someone help e to make like this the center part?

all i did ws the first one but the center i dont have idea ":(

[f700es]

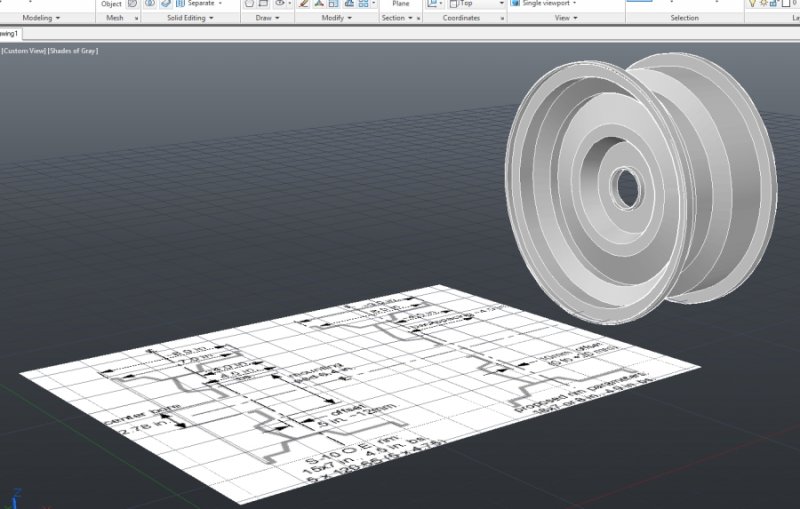

OK this took all of 5 minutes...



Get reference image, google is a good start

Bring into AutoCAD.





Draw the cross section of the wheel.

And revolve it around a center point

(Edit: be sure to use a closed polyline)

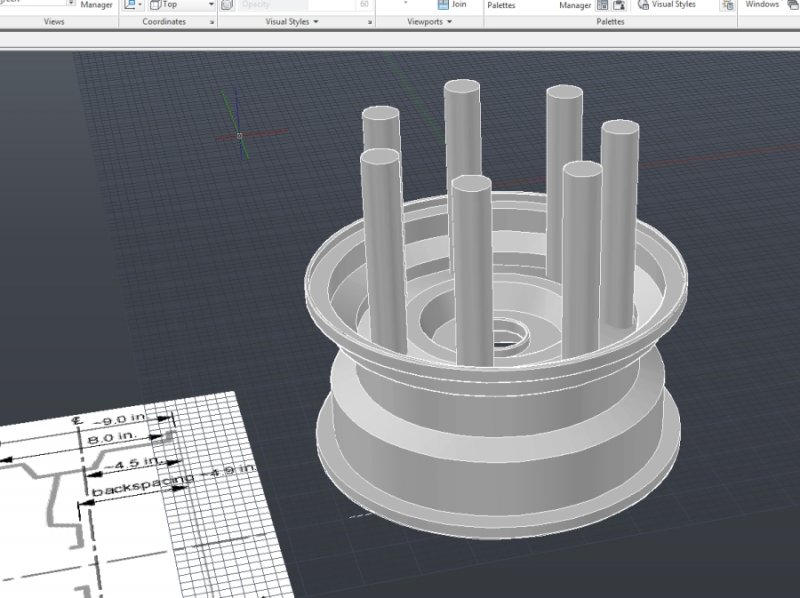

Draw a smaller circle and array it around the wheels center point.

Extrude the holes enough to pass through the center of the wheel.

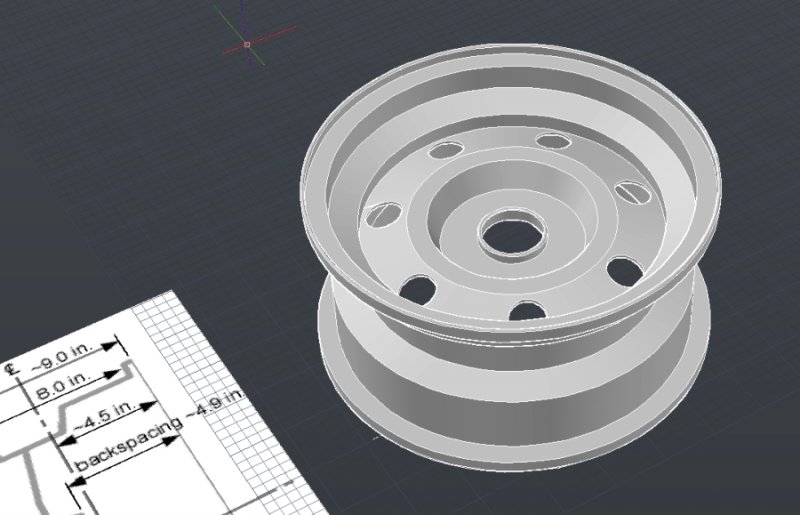

Subtract the tubes from the wheel and there you go.

You can also use the same method to make the holes for the lugs.





Good luck.

[SLW210]

You might want to set viewres 2000 facetres 10



Why? ..........

[miedy12]

f7 thank but im trying to figure out what's is the number thingy and also just for testing i just draw that and when im in revolve mode i dont know where is the end axis to put

[miedy12]

does anyone know where is the endpoint of that picture above?

[JD Mather]

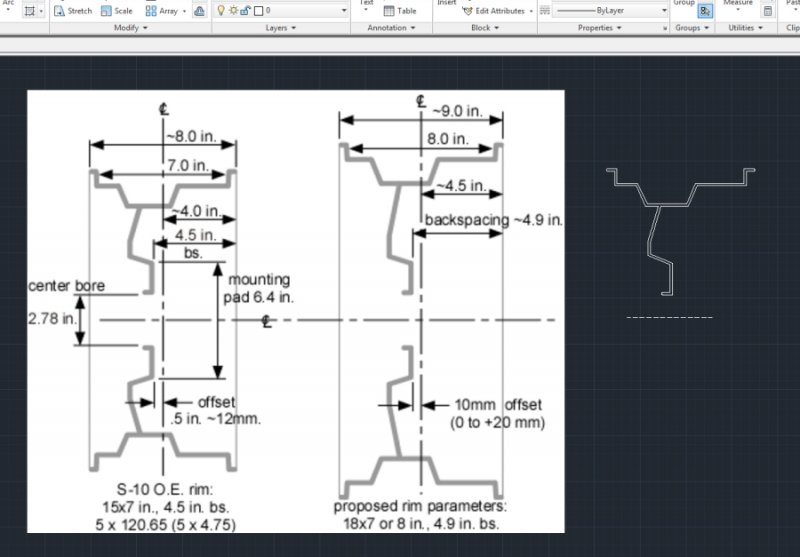

Click two points on the vertical line (as shown in the picture) that is your axis of revolution.



You don't actually need the line - but good practice so that you can presicely locate your axis.

[JD Mather]

The "number thingy" if you are referring to facetres = 10 is so that you don't come back here and ask, "Why does my wheel look like a Fred Flinstone rock? (ugly faceted faces)" (see image posted earlier)

[miedy12]

hey JD hmmm where to put viewres and facetres?

[JD Mather]

just start typing

[JD Mather]

...in AutoCAD of course.

[miedy12]

i still have a problem in revolve command finding the axis. and i still dont understand the picture did he used pedit? offset? join?

[JD Mather]

Doesn't really matter - as far as getting revolve to work.

If not pedit - joined (which it should be) it will result in surface rather than solid - but should still work.
