section creating problem

[tzframpton]

I'm not sure on how to make this a default as I've never really looked too deep into it. I might mess around with it and see what I can find over the weekend if I have the time.

[blackeagle1245]

ok thank you very much so for now I need to change all vanes I used till now.

[blackeagle1245]

when I just select the use annotation scale, why doesnt it change when I change the annotation scale?

[tzframpton]

Did you do the override like I said? It worked for me when I changed the Annotation Scale.

[blackeagle1245]

It worked for me too but when I just select annotation it doesnt change, but If I enter the numbers like 1/100,1/50 then it changes

[blackeagle1245]

if I just select annotation scale,then it gets 100 times bigger but then when I change scale it doesnt change again?

[blackeagle1245]

what is the problem if its schematic then nothing happens? what is special about it?



If you're in Plan View then it's probably an Annotative problem. The MvPart has 2D Annotative blocks for each "View", including Top, Bottom, Left, Right, Front and Back Views. This might be the first place I would look.



Also check your Display Manager to see if the current Display Configuration has MvParts set as Schematic. If so then this is definitely the problem.

[tzframpton]

Are you wanting the MvPart to be the Schematic symbol or do you want the actual MvPart to show the default 3D part?

[blackeagle1245]

ok I did it. but now I have a second issue. Now the vane look like how I want but pipe goes inside the vane.

[tzframpton]

I'm not understanding vane. Are you talking about vanes in duct fittings? Can you post an example?

[blackeagle1245]

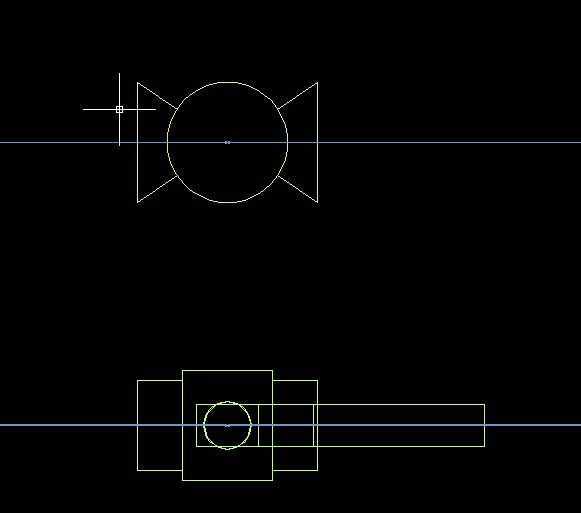

yes I put just a ball valve on to a pipe sorry for vane I just used the wrong word. Here is an example.

As seen in the picture pipe seems to goes inside in a valve cause it gets 100 time bigger then normal.

[tzframpton]

That's just because the symbol is extremely enlarged.

[blackeagle1245]

so no more solution for this?

[tzframpton]

The solution is to readjust the scale override.

[blackeagle1245]

still even I readjust it still gets into it a little bit.

[tzframpton]

Yes, it will, it's a limitation of the program. But a little bit should hurt your plan view drawings, should it? If so then I don't know how else to approach the issue, other than trying out Revit MEP instead.

[blackeagle1245]

ok thanks then;)

[blackeagle1245]

do I need to change mvpart style in every drawing? Isnt there any solution for this and for the drawing that I'll draw in the future?

[tzframpton]

do I need to change mvpart style in every drawing? Isnt there any solution for this and for the drawing that I'll draw in the future?

Yes, make the changes in your Template file. That way they are there every time you start a new drawing from this point forward.

[blackeagle1245]

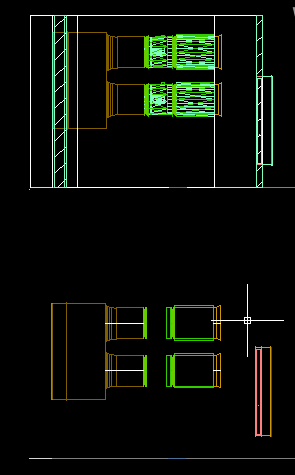

I'm taking a section from a garage fan but It seems like this on the top. when I change display style then the second one fan dissappears.
