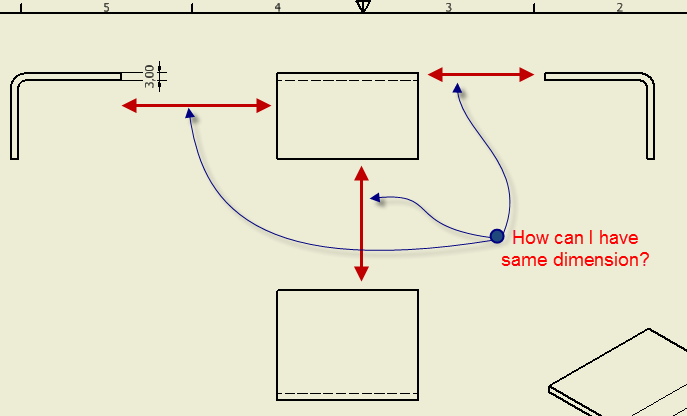

Faouweb Posted September 4, 2011 Posted September 4, 2011 Hi, How can I have the same distance between parts as shown in this picture. Thank you Quote
ReMark Posted September 4, 2011 Posted September 4, 2011 So this is not a question pertaining to Inventor but to AutoCAD? I don't see what the problem is. You can create multiple viewports in your layout and place them any way you choose. You have complete control over how far apart your objects are. Or set everyhting up the way you want it in model space (as far as the spacing goes) and use just one viewport in your layout to show all the views. Quote
Faouweb Posted September 4, 2011 Author Posted September 4, 2011 Thank you ReMark What I want is like in the picture Quote
JD Mather Posted September 4, 2011 Posted September 4, 2011 My question is - Why? Who cares? What about when you add dimensions? Aesthetically pleasing placement that makes the drawing easy to read is the only requirement. This sounds like a school assignment from someone who did all their work on the drawing board where up-front planning was required as it was not easy to move views after-the-fact. In modern CAD programs they can simply be dragged as needed. If you can provide a good reason for exact placement - I can provide the solution, but I think it would be a waste of time and therefore a waste of company money. Quote
Organic Posted September 5, 2011 Posted September 5, 2011 Just use a reference line to line up the objects the same distance apart. Adjust their relative position in the viewports as necessary. It is good practice and presentation I think to have it done like the OP wants. Quote
kencaz Posted September 5, 2011 Posted September 5, 2011 Aren't two of those views redundant? Well, one is anyway... and I really don't get the point of aligning plot views at certain distances!? It's really impractical... KC Quote
nukecad Posted September 5, 2011 Posted September 5, 2011 If you want to space things equally like this take a look at the XLINE command, particually the Offset option. XLINE almost seems to be a 'forgotten' command, not many tutorials seem to contain it and it dosen't seen to be taught on most courses. It is actually based on the way us old codgers used to lay thing out with construction lines when using a draughting board and pencil, nearly all fellow workers I have introduced to it use it all the time now, after all it was how drafters worked for a couple of hundred years before CAD came along. Quote
JD Mather Posted September 5, 2011 Posted September 5, 2011 The original post shows a pic in Inventor. Unless I'm missing something the OP never clarified whether looking for a solution in Inventor or in AutoCAD. (and this is the Inventor forum) There is no "xline command in Inventor. Quote
Faouweb Posted September 5, 2011 Author Posted September 5, 2011 It was just a question to display (centered on paper) parts of a small project in Inventor. As you said the important thing is to make the drawing easy to read. Quote
nukecad Posted September 6, 2011 Posted September 6, 2011 My mistake:cry: I hadn't checked the forum header. Quote
