cytechnician Posted August 16, 2011 Share Posted August 16, 2011 hi all how to draw polygon in isometric, need your expertise. REgards Quote Link to comment Share on other sites More sharing options...

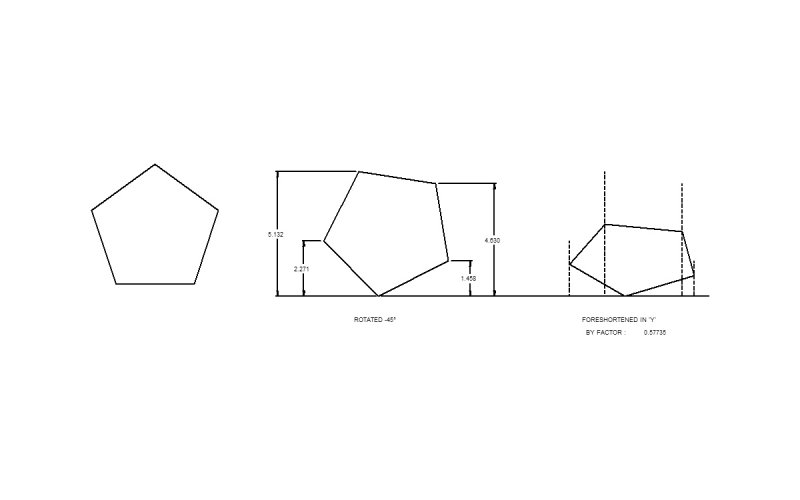

CALCAD Posted August 17, 2011 Share Posted August 17, 2011 cytechnician, Here is a method to get a proper isometric view of a polygon using a simple example. 1 - Draw a polygon (regular or irregular - the more sides, the longer this method will take) 2 - Rotate by -45 degrees and get vertical dimensions to each vertex 3 - Multiply each dimension by the factor : 0.57735 and measure up from a baseline See the drawing. Hope this helps. Quote Link to comment Share on other sites More sharing options...
fuccaro Posted August 18, 2011 Share Posted August 18, 2011 cytechnician, 3 - Multiply each dimension by the factor : 0.57735 and measure up from a baseline Or convert all the shape to block and alter the Y scale to suit. It should save a few steps/calculations Quote Link to comment Share on other sites More sharing options...
CALCAD Posted August 18, 2011 Share Posted August 18, 2011 A nice shortcut. Thanks fuccaro! Quote Link to comment Share on other sites More sharing options...

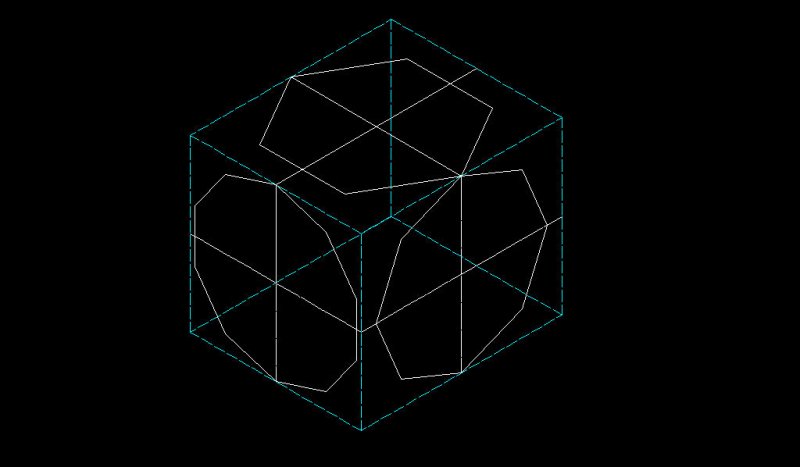

totzky Posted August 19, 2011 Share Posted August 19, 2011 How about this one? Quote Link to comment Share on other sites More sharing options...
