nbaryosef Posted August 12, 2011 Posted August 12, 2011 How to extrude in both directions in autocad, to keep object symmetrical Quote
ReMark Posted August 12, 2011 Posted August 12, 2011 Extrude in one direction. Mirror and Union. 1 Quote
Jack_O'neill Posted August 12, 2011 Posted August 12, 2011 Place the shape at the mid point of the path and sweep. Quote
dumfatnhappy Posted August 12, 2011 Posted August 12, 2011 not sure I understand your sweep comment. I don't but the object to be swept on the path at all nevermind the mid point. It will always sweep the length regardless. (right?) Quote
Jack_O'neill Posted August 12, 2011 Posted August 12, 2011 not sure I understand your sweep comment. I don't but the object to be swept on the path at all nevermind the mid point. It will always sweep the length regardless. (right?) You are correct it, it will. OP said he wanted to extrude both directions at once, so if you actually move the shape to be swept to the midpoint of the path and watch closely (or have a slow computer) you can see it go both directions at once. Quote
JD Mather Posted August 12, 2011 Posted August 12, 2011 How to extrude in both directions in autocad, to keep object symmetrical You must be thinking of modern 3D CAD programs like Inventor or SolidWorks (or even older CAD programs like Pro/E). In AutoCAD you will need to Sweep as suggested. Or solidedit (or presspull) to do in two steps. Quote
Jack_O'neill Posted August 12, 2011 Posted August 12, 2011 I really don't understand why this would be necessary anyway. Any single extrude operation is symmetrical anyway. It can't be anything else. Quote

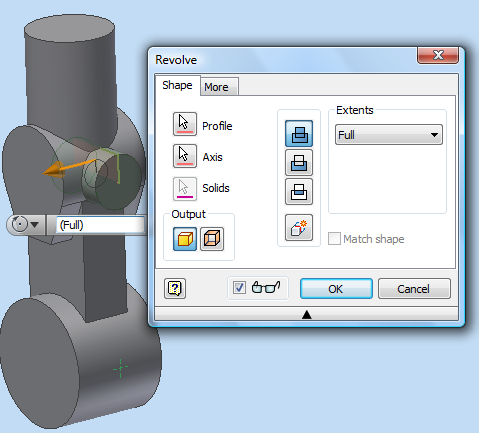

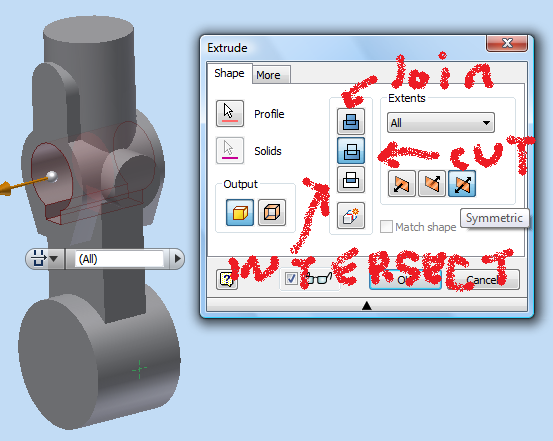

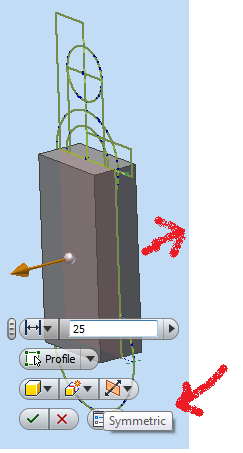

JD Mather Posted August 12, 2011 Posted August 12, 2011 (edited) I really don't understand why this would be necessary anyway. Any single extrude operation is symmetrical anyway. It can't be anything else. No - AutoCAD extrudes in one direction either + or - from profile. Modern CAD programs allow midplane extrusions which are very useful. I teach Inventor, SolidWork and Pro/E (Creo) using the BORN Technique (Base Orphan Reference Node) where as much as possible everything comes from the origin workplanes (xy, xz, yz) for the robust models that are easy to edit and less likely to fail on edit. Here are a bunch of 2D profiles on the xy plane. Nearly the entire part can be made from these with no change in "UCS" (I put in quotes as UCS as understood by AutoCAD users is seldom used in modern CAD programs). Notice that I didn't even bother to trim some of the 2D. All of this is fully paramtric - the model is driven by dimensions, not the other way around. Edits are trivial. These features (3 symmetrical extrudes, 1 symmetrical extrude-cut, one extrude and two revolves) all from profiles on the same plane Edited August 12, 2011 by JD Mather Quote
nbaryosef Posted August 12, 2011 Author Posted August 12, 2011 Thank you, i knew the answer already but i was thinking maybe someone knows something that i don't Quote

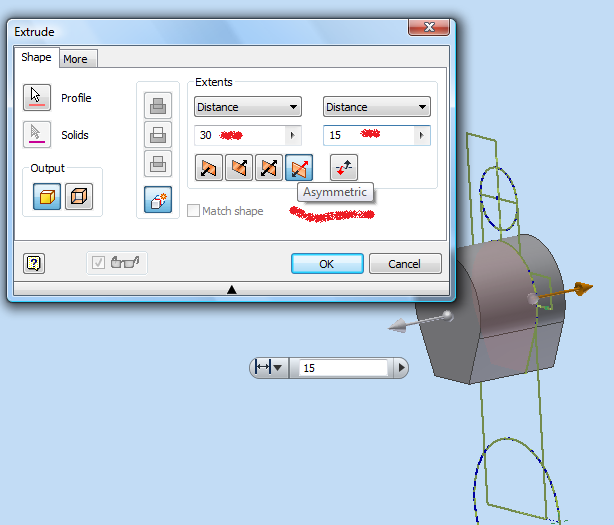

JD Mather Posted August 12, 2011 Posted August 12, 2011 Modern CAD programs also allow an Asymetric Extrude. All of this additional functionality quickly pays for the additional cost of the software in time savings in creation and editing of designs. Quote
Jack_O'neill Posted August 12, 2011 Posted August 12, 2011 Ok, so if you need to extrude it 50 units one way and 50 units the other, you extrude it 100 units and move it over 50. How hard is that? If you need 40 one way and 35 the other, extrude 75 and move it over. Not difficult. Its still symmetrical regardless. There is a half way point no matter which way you do it. Quote
JD Mather Posted August 12, 2011 Posted August 12, 2011 ... and move it over. Not difficult. ... In my experience every extra step introduces a chance of error. And with AutoCAD - no history to see where the user went wrong. 90% of what I see is garbage where users eyeballed the move or something similar. With modern CAD programs not only are there fewer steps that reduce the likelyhood of unintended errors, but also there is a complete history to examine and determine everything was done correctly. A record of truth. Kind of like a school math problem where one student shows his work while the other doesn't. The person who doesn't show work doesn't think it is necessary and thinks it is faster to take shortcuts. Quote
Jack_O'neill Posted August 12, 2011 Posted August 12, 2011 In my experience every extra step introduces a chance of error. And with AutoCAD - no history to see where the user went wrong.90% of what I see is garbage where users eyeballed the move or something similar. With modern CAD programs not only are there fewer steps that reduce the likelyhood of unintended errors, but also there is a complete history to examine and determine everything was done correctly. A record of truth. Kind of like a school math problem where one student shows his work while the other doesn't. The person who doesn't show work doesn't think it is necessary and thinks it is faster to take shortcuts. I run into the "garbage" as you called it all the time. Fortunately, I know how to use the keyboard to enter the direction and distance to move things accurately. I've seen a lot of folks that don't, though. As to the number of steps...2 extrudes or 1 extrude and 1 move...not a big difference to me, but I've been doing it a very long time. Having started my adult life as a machinist, I have a good appreciation for precision. Don't get me wrong, Inventor is a far superior product, but AutoCAD is still quite capable in the right hands. The very old acronym still appies in either program...GIGO! Quote
oberkarl Posted November 29, 2022 Posted November 29, 2022 If you or anyone else is looking for a solution to extrude from a mid plane I wrote this lisp program to enable you to do so. Note that EXTRUDEBOTHSIDES was built in the process of building SUBTRACT2D which is also attached if you're interested. (defun c:EXTRUDEBOTHSIDES ( / ) (command "EXTRUDE" pause "" (setq extlength (atof (getstring T "\nEnter extrusion length")))) (setq newpoint (list 0 0 (/ extlength -2))) (princ newpoint)(terpri) (command "MOVE" (ssget "_L") "" "" newpoint) ) (defun c:SUBTRACT2D ( / subtractfrom subtraction i ent extlength newpoint) (command "._UNDO" "_Begin") (princ "Select solids, surfaces, and regions to subtract from ..")(terpri) (setq subtractfrom (ssget)) (princ "Select 2D Geometry to subtract ..")(terpri) (setq subtraction (ssget)) (setq i 0) (while (setq ent (ssname subtraction i)) (command "EXTRUDE" ent "" (setq extlength 1000)) (setq newpoint (list 0 0 (/ extlength -2))) (command "MOVE" (ssget "_L") "" "" newpoint) (command "SUBTRACT" subtractfrom "" (ssget "_L") "") (setq i (1+ i)) ) (command "._UNDO" "_End") ) Quote
