Greating a lisp to get a rectangle and impotting a block in it

[CadFrank]

Hi to all, I am new at lisp and i would like to kno how create box and inserte a block in it. for exemple a 2 x 4 stud and on top or it a of a 2 x 4

[Tharwat]

What is the name of your block and where are you going to insert it ( insertion point ) ?

Edited July 22, 2011 by Tharwat
words correction

[CadFrank]

The name of my block could be 2" x 4" and it will be located at the top of my rectangle

[Tharwat]

The name of you block is not correct and it can not be named with quotation marks at all .

[CadFrank]

Oh sry just name it 123

[CadFrank]

Hi, well this is simple for some people but im new at autolisp.

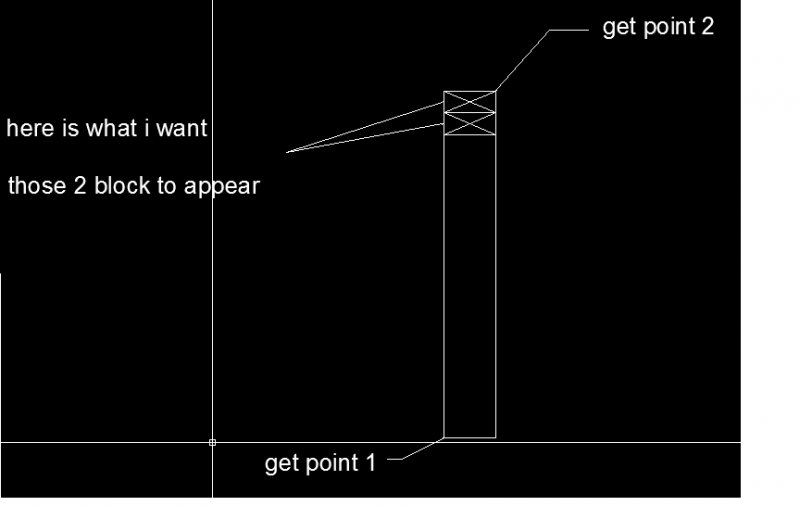

I would need to create a lisp for the image ill be showing you.



i can create a lisp to make a box but i can't inserte the block in it.





so if some1 can help me figure out the rest i would be gratefull.



thank you!

[paulmcz]

Does the block already exist? How does it look like?

Where is the block you need to insert now? In the drawing? Is it a separate file?

Where is the block's base point, in relation to the block's geometry?

[CadFrank]

Well it is at the same place as the getpoint 2 and the block already exist

[paulmcz]

Is the block in the drawing? Is it a separate file?

Post the picture of the block, show the exact location of the base point and dimension it in detail.

Or better yet, attach the block's drawing (dwg)

[CadFrank]

Well i dont have the block with me





but if you give me the code i need i could fill in the blanks after unless you really need the block

[CadFrank]



here is the block with demension

[paulmcz]

Since nobody knows the dimensions of your block, following code is good for inserting first of your blocks. For the second one, you need to calculate location of the second insertion point.



(command "_.insert" "path or block's name" point2 "x-scale" "y-scale" "rotation")



If the block is already in the drawing, skip the path

[paulmcz]

OK, the second block will have to have the insertion point = p3 =>

(setq p3 (polar point2 (* pi 1.5) 38.0))

Edited July 23, 2011 by paulmcz

[CadFrank]

So lets say this is the code i started



[font=Courier New](defun c:BOX ( / pt1 pt2 pt3 pt4 )(setq pt1 (getpoint "Pick first corner: "))(setq pt3 (getcorner pt1 "Pick opposite corner: "))(setq pt2 (list (car pt3) (cadr pt1)))(setq pt4 (list (car pt1) (cadr pt3)))(command "line" pt1 pt2 pt3 pt4 "c" )[/font](command "_.insert" "path or block's name" point2 "x-scale" "y-scale" "rotation")(setq p3 (polar point2 (* pi 1.5) 38.0))))



would this be ok!

[paulmcz]

This would do it, if the block's name is "123", it resides in the drawing and you want to accept x-scale as 1.0, y-scale as 1.0 and rotation as 0.0.



(defun c:BOXX (/ osn pt1 pt2 p3)
 (setq osn (getvar "osmode"))
 (setvar "osmode" 0)
 (setq pt1 (getpoint "Pick first corner: "))
 (setq pt2 (getcorner pt1 "Pick opposite corner: "))
 (command "rectang" pt1 pt2)
 (command "_.insert" "123" pt2 "" "" "" )
 (setq p3 (polar pt2 (* pi 1.5) 38.0))
 (command "_.insert" "123" p3 "" "" "")
 (setvar "osmode" osn)
 (princ)
)

Edited July 28, 2011 by paulmcz

[paulmcz]

The "BOX" is the autocad's command, so you can't use it as a defun's call code!

[irneb]

Could you perhaps make a sample drawing and attach it here so we can see what it needs?

[Tharwat]

Could you perhaps make a sample drawing and attach it here so we can see what it needs?



They have repeated the same request in two different threads , check it out .



http://www.cadtutor.net/forum/showthread.php?61231-Creating-a-lisp-help-needed&p=415942&viewfull=1#post415942

[CadFrank]

Well thank you it works.!
