bilalbajwa Posted June 26, 2011 Posted June 26, 2011 Guys i am trying to model a wire mesh with no idea how to even start. Yes, i do need to model wire mesh, no textures allowed because i want to simulate a fan blowing air through it and then do some CFD i.e. Flow simulations on it. SW gurus please help me out how to model a simple wire mesh like http://www.google.com/imgres?imgurl=http://img.tootoo.com/mytootoo/upload/50/504221/product/504221_77159415b7b779caf741b8a2d193fedd.jpg&imgrefurl=http://www.tootoo.com/buy-american_wire_mesh_importer_corporation/&usg=__cDG0LgHep6IDHwViM-g9wWaIzt0=&h=360&w=360&sz=29&hl=en&start=24&sig2=N6ZhBLw-G7oLeHPuJ_iGgA&zoom=1&tbnid=e3WGrDvOviB5NM:&tbnh=140&tbnw=141&ei=6L8HTtmRC7O00AHQj6neCw&prev=/search%3Fq%3Dwire%2Bmesh%26um%3D1%26hl%3Den%26sa%3DN%26rlz%3D1B3GGLL_enUS416US416%26biw%3D1680%26bih%3D778%26tbm%3Disch&um=1&itbs=1&iact=rc&dur=996&page=2&ndsp=33&ved=1t:429,r:15,s:24&tx=97&ty=39&biw=1680&bih=778 Quote
bhamze Posted June 27, 2011 Posted June 27, 2011 Here's one approach. It was created with SW 2011. If you cant open it let me know, I will post screen shots. Mesh.zip Quote
bilalbajwa Posted June 27, 2011 Author Posted June 27, 2011 Thanks for you reply. Since i have SW 2010 i cant open 2011 version. Will you pl. post a 2010 version. Thanks Quote

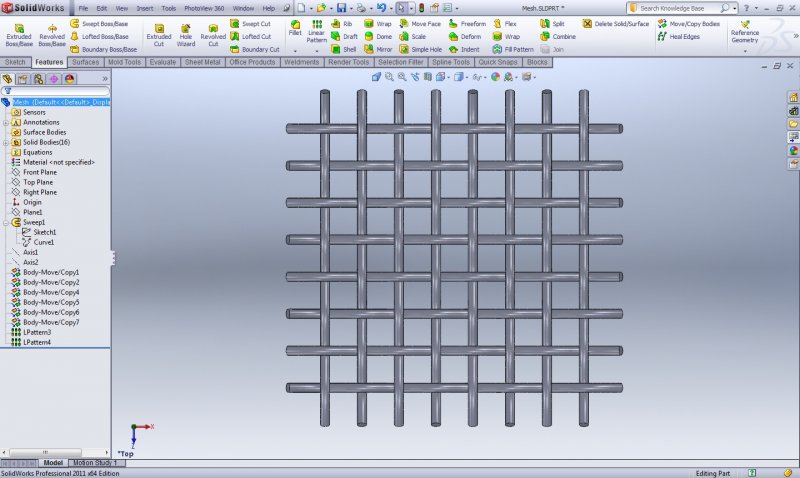

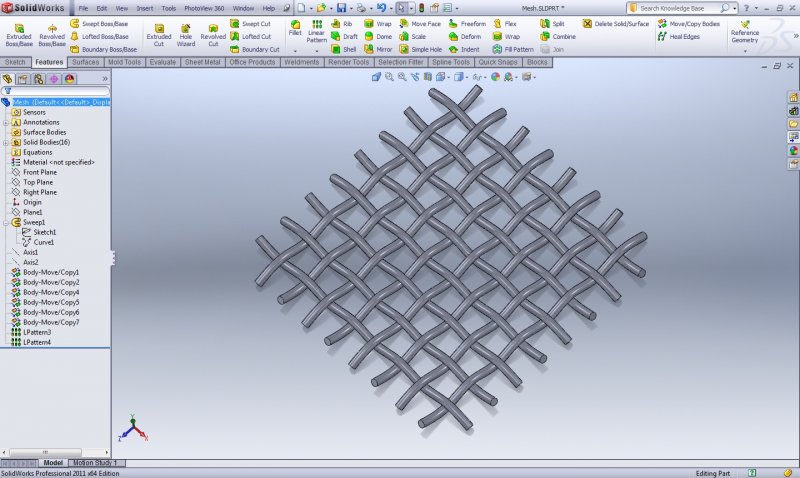

bhamze Posted June 27, 2011 Posted June 27, 2011 Sorry, the option to save in 2010 is not possible. Here are a few screen shots. I will try to post the procedure later, let me know if your interested. Quote
bilalbajwa Posted June 27, 2011 Author Posted June 27, 2011 Thanks I am dying to see how you did that. Thanks again:D Quote
ReMark Posted June 27, 2011 Posted June 27, 2011 A very rough approximation done using plain AutoCAD. I "eyeballed" it so the image is not exact. Quote
bhamze Posted June 27, 2011 Posted June 27, 2011 Here you go. Ive attached the .txt file for reference. Hope it helps. Mesh Curve.txt Quote
bilalbajwa Posted June 28, 2011 Author Posted June 28, 2011 (edited) That's is so cool. Thanks a lot. I never thought i will get a video in response. I am still wondering how you generated the text file . What are all those values in text file. I have a wire mesh in hand and i want to run analysis on it. I also have a digital vernier caliper to take the measurements but I don't know what the values in text file are? Please explain. Thanks a lot for help. Edited June 28, 2011 by bilalbajwa Quote

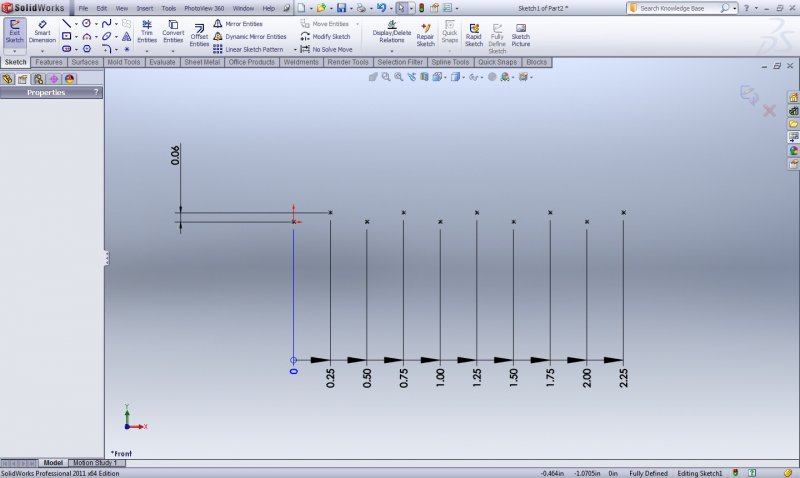

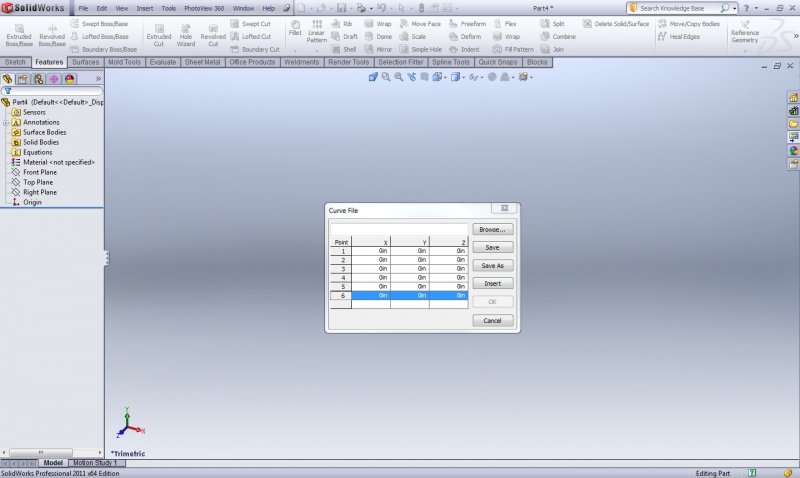

bhamze Posted June 28, 2011 Posted June 28, 2011 The text file was generated in Excel and is used for "Curve Through XYZ Points" in SW. The values in text file reference the XYZ coordinate system. When you use this feature you can enter data manually or import a text file. In this example we only want to create a curve on the XY plane. Therefore our Z value will be set to "0" for all points. See attached photo, I created a sketch and dimensioned the points so you can understand how I generated the file. Create a new part using the Curve Through XYZ point feature, enter the values manually based on image below. You will end up with a curve identical to the one I created. Quote
bilalbajwa Posted June 28, 2011 Author Posted June 28, 2011 :DThanks a lot. Now it makes sense. Quote
lighty Posted August 16, 2011 Posted August 16, 2011 Well, this method seems elegant enough so I tried to produce a larger size mesh. It's all fine up until the point that when I need to copy/rotate basic solid. I simply cannot do it no matter what I try. I mean, I used the feature in the past but at this point I'm stuck and I suspect I might missing something. Any help would be appreciated. BTW - I uploaded file to http://ifile.it/e89j6n3/Wiremashprob.zip because of the larger size (~700 kB). Quote
raha00 Posted December 27, 2012 Posted December 27, 2012 Is it possible to creat a Wire mesh in Catia?how? Quote
