Modeling Flexible Material?

[amerdsp]

Hello all,

I am trying to model something similar to 35mm film. Can anyone please point me in the right direction? Hints, pointers, tutorials?



Thank you for your time and help.



Amer

[JD Mather]

Sweep.

Curve Driven Pattern.

Attach what you have been able to complete so far.

[gnusselt]

Need help in creating a fishing net.

The net is glued to two metal sticks that moves around, like a lady's japanese fan. I don't want animation, just to create it. Any ideas please ?

[JD Mather]

Loft

Texture

Attach what you have been able to complete so far.

[gnusselt]

Thank you for your answer but i can't get it right.

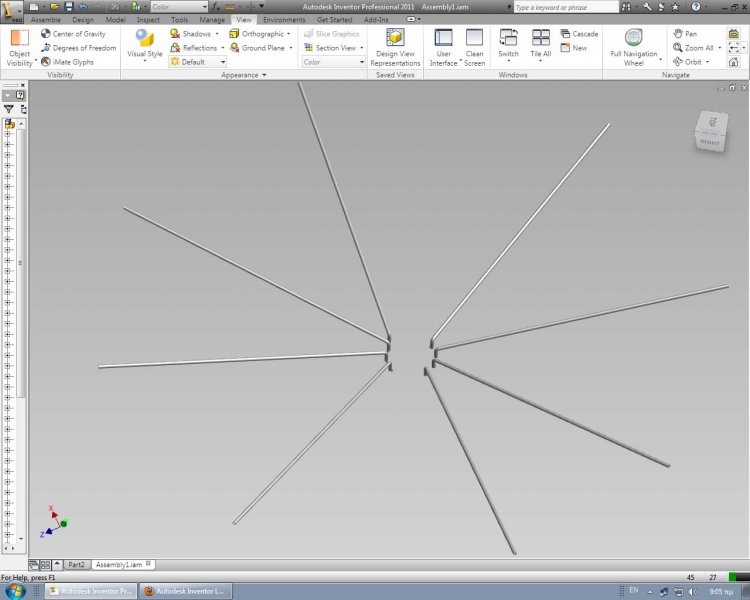

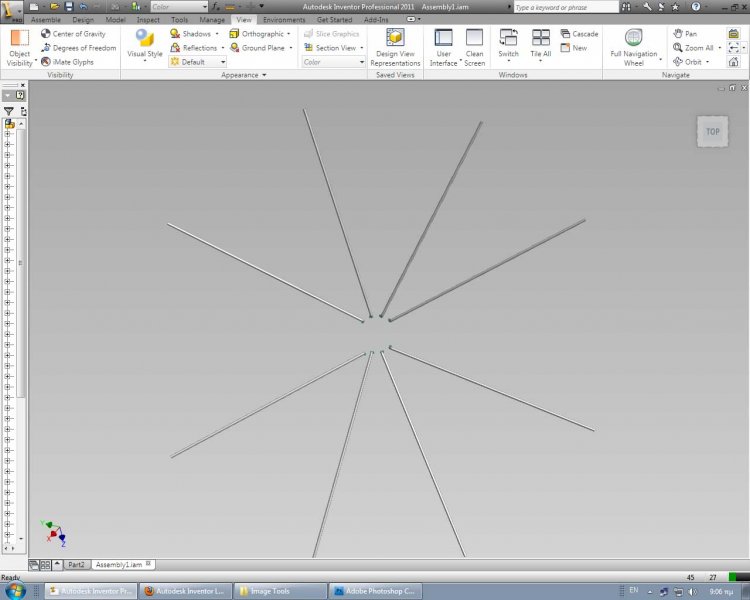

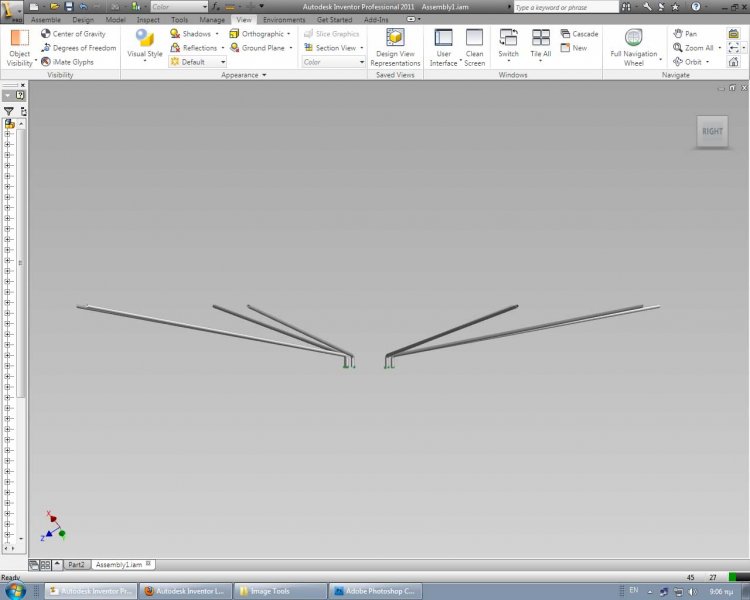

I need to create a cone of net attached to the metal sticks you see in the following pictures. The sticks are 10 degrees inclined for the horizontal.



[kencaz]

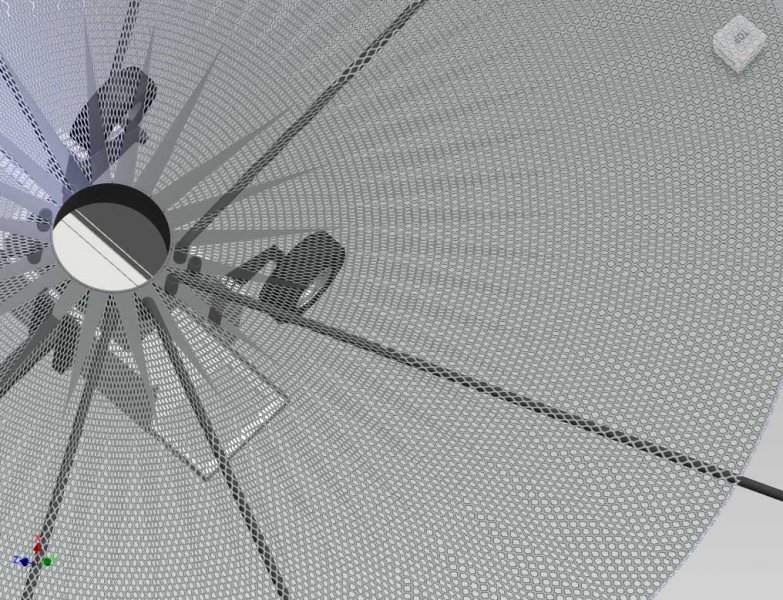

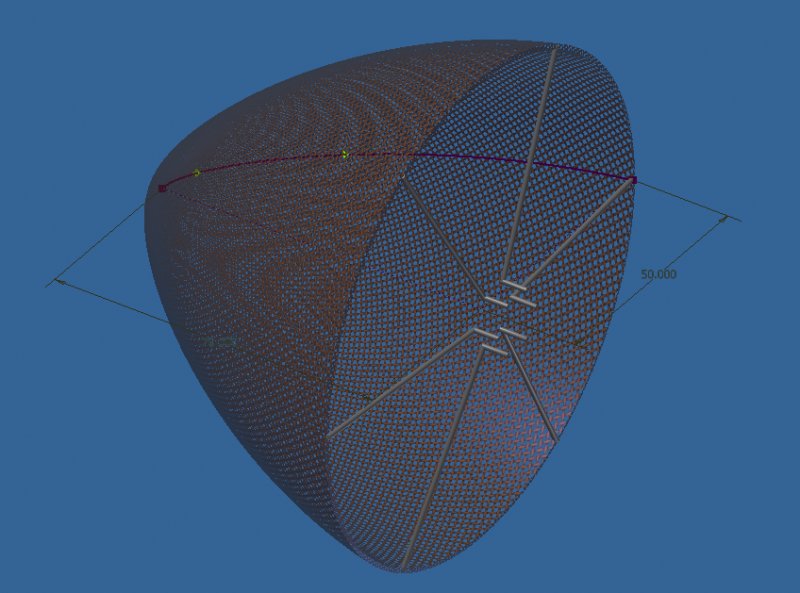

You can revolve a spline as a surface then thicken... I used the expanded metal texture to get the net... Keep in mind you can only scale it so big, so you may have to use a bitmap...



[gnusselt]

Thank you for your answer. I created 2 circles in parallel planes and then used loft and shell 1mm thick.

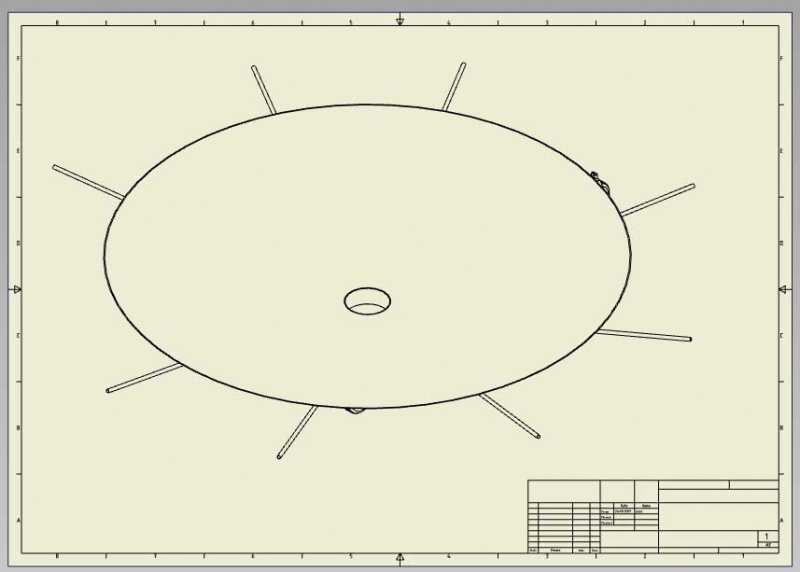

But, although it looks great in assembly environment, it looks like a solid surface in Drawing environment and i can't see through the net the rest of the assembly. I really need this wireframe 'base view'.

[JD Mather]

You will have to use a shaded view in drawing.

[gnusselt]

I need to use wireframe because it is going for a patent verification and the organization wants the sketch to be simple wireframe. No shading, no materials.

If i use emboss ? Will it do the work ?

[JD Mather]

Use Inventor Studio and set to Render - Illustration.

[gnusselt]

I tried but it end up with a black model in a gray background. I suppose it has to do with the lighting... tried a few settings but with the same result. :-(
