klrskies Posted April 29, 2011 Share Posted April 29, 2011 I'd like to section (Divide the area between the upper surface and lower surface of a 3d wire frame into sections. Would someone please get me started? Quote Link to comment Share on other sites More sharing options...
JD Mather Posted April 29, 2011 Share Posted April 29, 2011 Sure - attach the file here. Quote Link to comment Share on other sites More sharing options...
klrskies Posted April 29, 2011 Author Share Posted April 29, 2011 I'd like to learn how to section at varying z levels. 0699 Cadtutuor.dwg Ken Quote Link to comment Share on other sites More sharing options...
ReMark Posted April 29, 2011 Share Posted April 29, 2011 It looks like you went through a great deal of effort to do the drawing but everything seems to be constructed of lines. Am I correct? It appears to be an isometric drawing. Quote Link to comment Share on other sites More sharing options...
klrskies Posted April 29, 2011 Author Share Posted April 29, 2011 Correct, its just lines at this point. Quote Link to comment Share on other sites More sharing options...
tzframpton Posted April 29, 2011 Share Posted April 29, 2011 To utilize the numerous sectioning tools and methods, it will have to be a 3D solid. If not, you'll have to do draw it manually. As far as I know, that is. Quote Link to comment Share on other sites More sharing options...

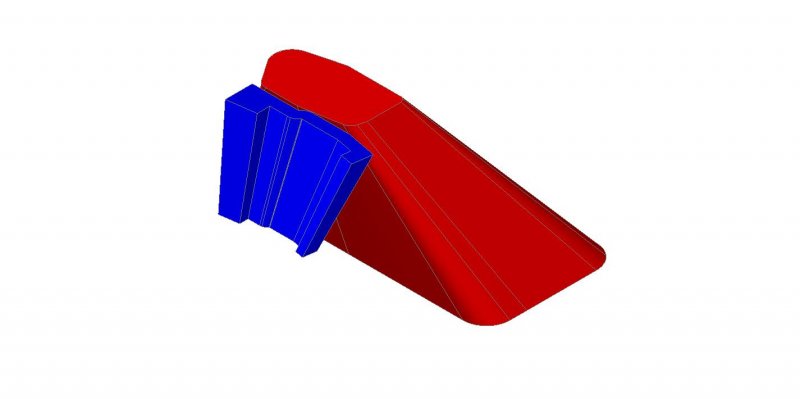

ReMark Posted April 29, 2011 Share Posted April 29, 2011 To expand on what the StyKmaN was saying, this is an example of two solids roughly based upon your geometry. Once you have your solids constructed then you can use either the Section command or the SectionPlane command (depending on your needs) to generate the sections you are looking for. Quote Link to comment Share on other sites More sharing options...
klrskies Posted April 29, 2011 Author Share Posted April 29, 2011 The 3d models you display would be extracted from a solid. Can Someone show me the procedures for generating solids? Quote Link to comment Share on other sites More sharing options...
tzframpton Posted April 29, 2011 Share Posted April 29, 2011 Have you ever done 3D design before in AutoCAD? Quote Link to comment Share on other sites More sharing options...
ReMark Posted April 29, 2011 Share Posted April 29, 2011 The solids I created above were done using the Loft command. Other commands for creating soilds are Extrude and PressPull. Look at JDM's signature. Click on the link to his tutorials. They were done using AutoCAD 2007. Quote Link to comment Share on other sites More sharing options...
David Bethel Posted April 29, 2011 Share Posted April 29, 2011 It can be done with 3D wireframes but it takes a LOT of customization programs. -David Quote Link to comment Share on other sites More sharing options...
klrskies Posted April 29, 2011 Author Share Posted April 29, 2011 I have no experience with solids in autocad. I'll read the recomended tutorials. I'd like to learn an effecient way of processing solids. Quote Link to comment Share on other sites More sharing options...
ReMark Posted April 29, 2011 Share Posted April 29, 2011 David: For those of us not familiar with such programs can you name a couple? Thanks. Quote Link to comment Share on other sites More sharing options...
ReMark Posted April 29, 2011 Share Posted April 29, 2011 I have no experience with solids in autocad. I'll read the recomended tutorials. I'd like to learn an effecient way of processing solids. That would be a good place to start. Don't forget the tutorials here at CADTutor and check out the ones at the AutoDesk website too re: 3D modeling. If you have any questions return here and ask. Quote Link to comment Share on other sites More sharing options...
klrskies Posted April 29, 2011 Author Share Posted April 29, 2011 Thanks to all for pointing me in the right direction to begin. regards, Ken Quote Link to comment Share on other sites More sharing options...

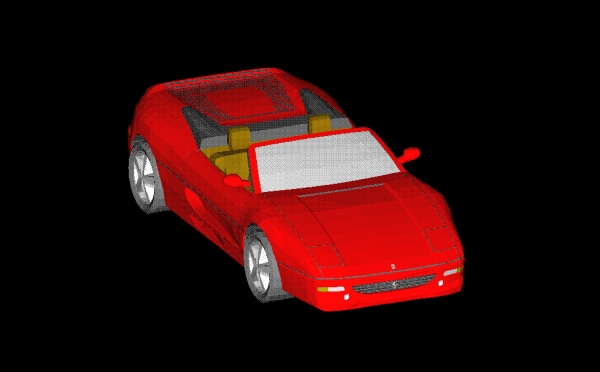

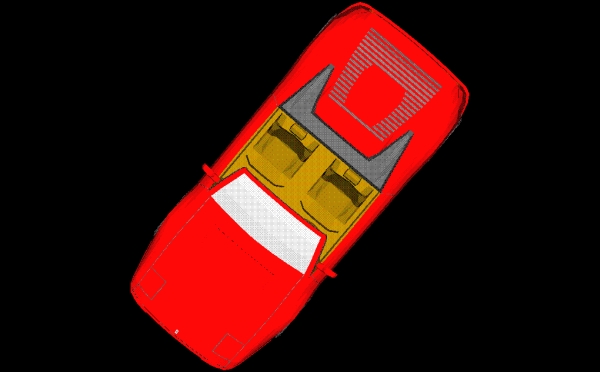

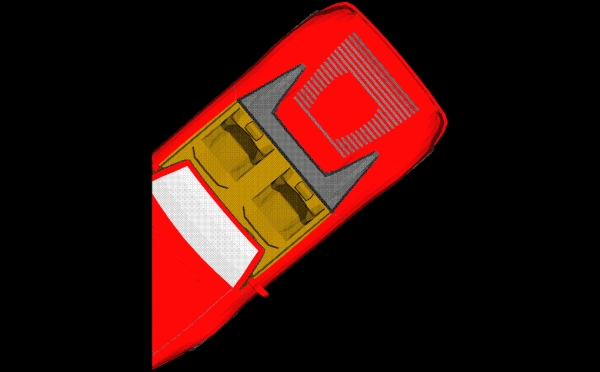

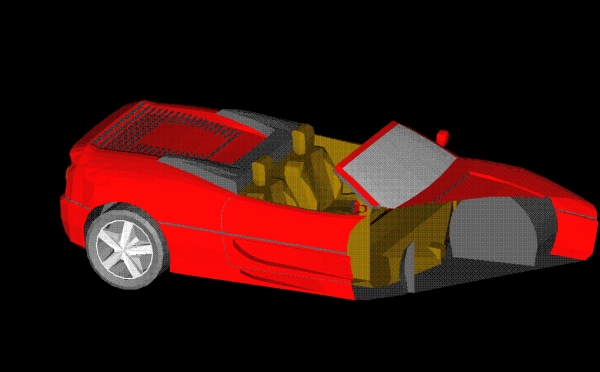

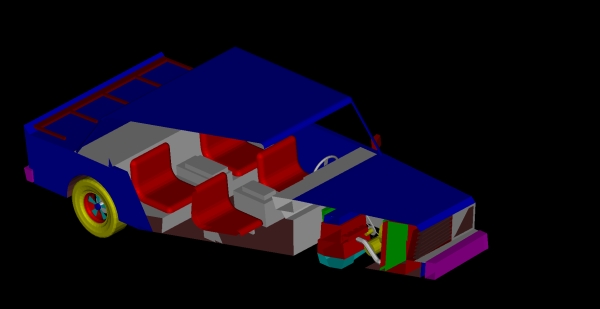

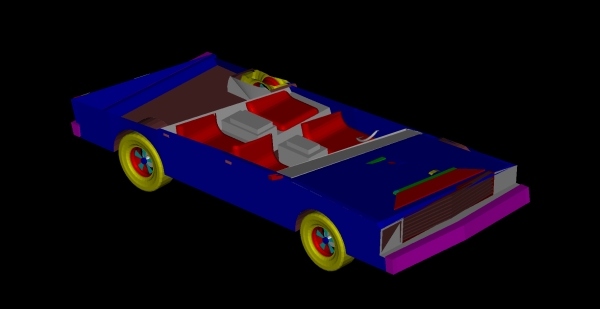

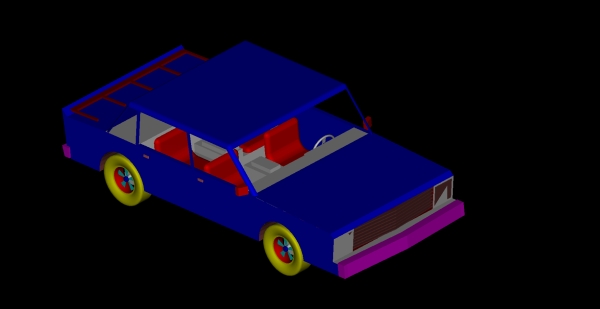

David Bethel Posted April 29, 2011 Share Posted April 29, 2011 David: For those of us not familiar with such programs can you name a couple? Thanks. Remark, The process I use is to: Explode everything into it's native form Convert each entity into a 3FDACE ( or exploded mesh ) From there calculate whether each face needs to be sliced based of the axis and location specified by the user Reform the face so that the no edge protrudes beyond the given value. Sometimes 1 face must be made into 2 faces I limit the input axis to north south east west above and below. It just made my life a lot simipler. This Ferrarri I sliced the west portion off in plan view. Fun but it really needs a well detailed model. -David Quote Link to comment Share on other sites More sharing options...
