guilty by design Posted April 25, 2011 Share Posted April 25, 2011 Im currently trying to draw a layout for a simple angle iron part using the front, side, and angled view. Its a flat part made of sheetmetal and it will get 1 90* bend in it. My first question is how do i bend a part in autocad LT 2011? Ive been using autocad for years but ive never had a request for an anged view. My second question is how would i create a layout using all 3 views and include the info block in the bottom right displaying all the info? Quote Link to comment Share on other sites More sharing options...
JD Mather Posted April 25, 2011 Share Posted April 25, 2011 I would use Autodesk Inventor for this. It has sheet metal tools built in. Quote Link to comment Share on other sites More sharing options...
ReMark Posted April 25, 2011 Share Posted April 25, 2011 Unfortunately you are using AutoCAD LT which means that unless you have a sudden urge to buy Inventor, and the money to do so, you're stuck. In full AutoCAD you could make use of add-on software (utilizing Lisp) that would assist you with making proper bends. Re: three different views. The three views are in model space. To see each you could create a single viewport in your paper space layout or, for more flexibility, create three viewports (one for each view). Viewports are assigned scales. Your title block and border belong however in paper space and not in model space and should be drawn at a scale of 1:1. If you want to use text that is 3/32nds or 1/8th inch high that's what you use. AutoCAD will print your layout with title block and border and scale each viewport accordingly. BTW...put your viewports on their own layer (set to "no print) and make sure their display is locked so the scale cannot be changed by mistake. Note: If you are a student you can download Inventor for free from the AutoDesk Educational website. JDM can provide you with further details regarding this if applicable. Quote Link to comment Share on other sites More sharing options...
CADguy209 Posted April 26, 2011 Share Posted April 26, 2011 When you say "layout" do yo umean the flat sheet metal layout? If so make your 3 views of the finshed/formed part and calculate the flat sized based on the bend allowences for what ever dies/tooling you will be using. After you got that you can draw your flat layout based on the sizes that you came up with. Quote Link to comment Share on other sites More sharing options...
guilty by design Posted April 27, 2011 Author Share Posted April 27, 2011 I downloaded a trial version of inventor and im learning some of the commands and whatnot are a lil different. But where im hung up now is the bend command. It says to sketch a line on the face i want to bend and make sure it terminates at the end of the faces (i have that). I click fold and select the bend line i want, but no matter what i do it says it cant make the bend. Ive watched the video on autocads wiki help page and followed it exactly, but it still wont allow me to put a simple bend in the sheet. Quote Link to comment Share on other sites More sharing options...
JD Mather Posted April 27, 2011 Share Posted April 27, 2011 That is not how to bend sheet metal. Use the sheet metal tools to model in finished form and then have the program unfold it for you. The finished form is the source of truth. Attach a sketch of what you are trying to do. Quote Link to comment Share on other sites More sharing options...
BIGAL Posted April 27, 2011 Share Posted April 27, 2011 Sounds to me like people going over the top, just draw the shape with the bend allowance as an L, I am pretty sure LT supports "thickness" so just set this variable to the desired width and view from a 3d point in one of your layouts try vpoint 1,1,1 all done. Also check other vpoints R=1,0,0 L=-1,0,0 F=0,-1,0 B=0,1,0 P=0,0,0 Make sure you tick hide when plotting so it will become a solid Quote Link to comment Share on other sites More sharing options...
ReMark Posted April 27, 2011 Share Posted April 27, 2011 An option for those not able to afford the cost of Inventor. http://www.litio3d.com.ar/ Another option (free) from Manusoft called BDev.lsp (Bend Developer). http://www.manusoft.com/software/freebies/lisp.html Quote Link to comment Share on other sites More sharing options...
JD Mather Posted April 27, 2011 Share Posted April 27, 2011 I'm with BIGAL, I suspect we are all making this a much bigger job than it really is. Post the sketch. Quote Link to comment Share on other sites More sharing options...
ReMark Posted April 27, 2011 Share Posted April 27, 2011 "I suspect we are all making this a much bigger job than it really is." I believe that's referred to as "scope creep". It's what we do. Quote Link to comment Share on other sites More sharing options...

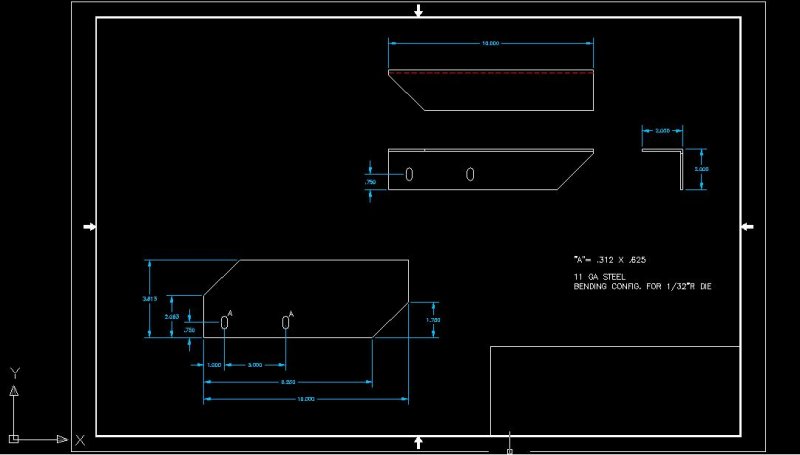

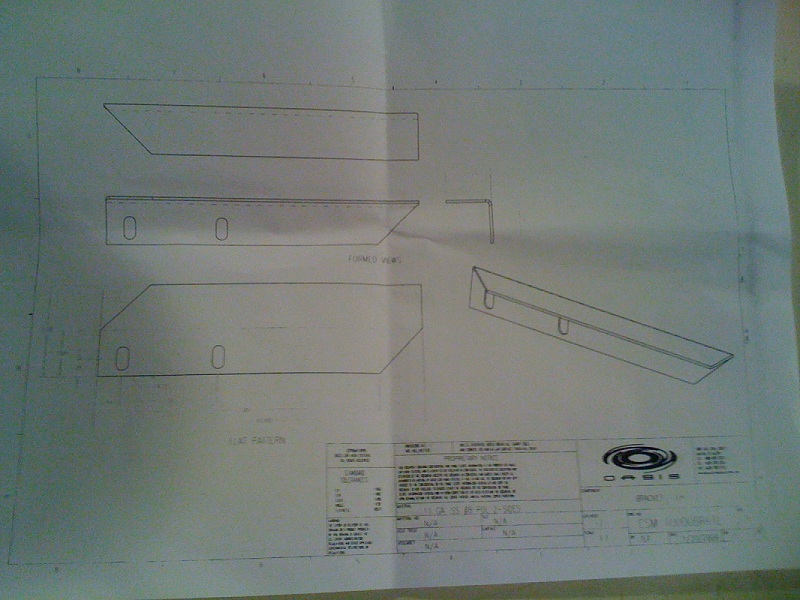

guilty by design Posted April 27, 2011 Author Share Posted April 27, 2011 Heres the drawing im trying to replicate And heres where im at with the drawing The blue line is the line the program tells me to draw indicating where i want the bend. JD what your saying is i need to draw the part as it will be formed and then flatten it to get my 2D image? Quote Link to comment Share on other sites More sharing options...

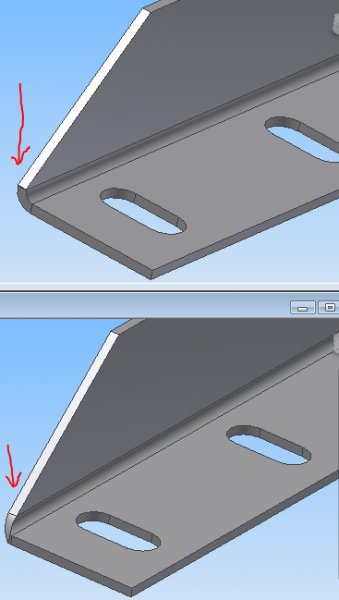

JD Mather Posted April 27, 2011 Share Posted April 27, 2011 Here are a couple of solutions. Notice the differences in the chamfered bend corners - AutoCAD users (particularly 2D) miss these subtle differences in sheet metal. I couldn't read your dimensions - so I just made some up. Edit Sketch1 to see that it is simply two lines, then use Countoured Flange to create the part. Solution 1.zip Solution 2.zip Quote Link to comment Share on other sites More sharing options...

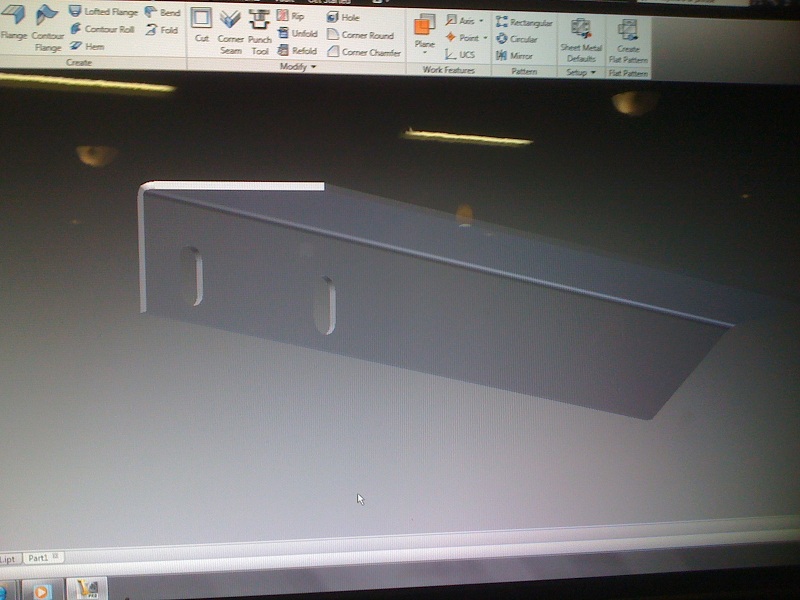

guilty by design Posted April 27, 2011 Author Share Posted April 27, 2011 Eureka! I think my problem was in extruding the part instead of using the face feature in the sheetmetal toolbar. I can bend the part now. One thing i did notice tho is i didnt see a way to indicate how thick i want the part in the face setting. Quote Link to comment Share on other sites More sharing options...
JD Mather Posted April 27, 2011 Share Posted April 27, 2011 See the Sheet Metal Defaults icon - upper right corner of your screen - that sets the material thickness. Quote Link to comment Share on other sites More sharing options...
CADguy209 Posted April 27, 2011 Share Posted April 27, 2011 Heres my results.....dimensions I just fudged since you cant see them in the pic. Quote Link to comment Share on other sites More sharing options...

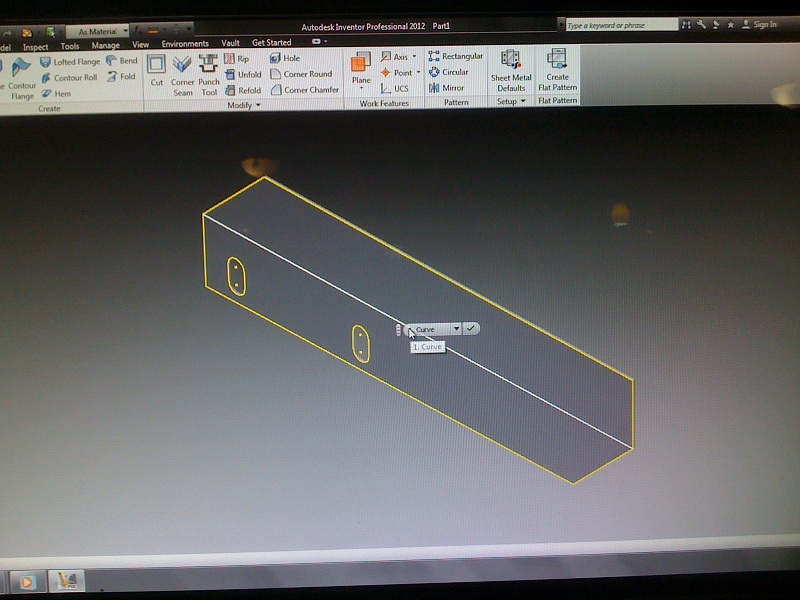

dascott Posted June 7, 2011 Share Posted June 7, 2011 (edited) good morning. i have just read though this thread and i am struggling to do something similar with one key difference. we are currently building a (narrow) backhoe bucket. the bottom is made from a piece of 48 x 7 x 3/4" steel with an oval cut out of it for a hook to hang through. the piece then gets bent (we call it rolled, or broke) to create a curve to match the sides. my problem is that the cut-out oval is in the curve, and i cant figure out how to do this. i am very new to 2011, upgrading from 07LT, and this website has been crucial to me learning to do what i have. thanks in advance for any help. Edited June 7, 2011 by dascott Quote Link to comment Share on other sites More sharing options...
JD Mather Posted June 8, 2011 Share Posted June 8, 2011 Attach what you have been able to complete so far. (dont worry about the oval cut for now. Quote Link to comment Share on other sites More sharing options...
dascott Posted June 8, 2011 Share Posted June 8, 2011 here is what i have. at one point i had the plate (without the oval) bent to match the curve of the side (there in white), but deleted it to start over. after that is when i turned to CADTutor. 3D Assembly.dwg Quote Link to comment Share on other sites More sharing options...
dascott Posted June 10, 2011 Share Posted June 10, 2011 Is anyone able to help me on this? Quote Link to comment Share on other sites More sharing options...
dascott Posted June 16, 2011 Share Posted June 16, 2011 ...thought i might give this one more try.... Quote Link to comment Share on other sites More sharing options...
