Inventor dynamic simulation

[ses4]



Dear Sir;

I am working a manufacture camshaft plant in Turkey.Could you help me please for inventor dynamic simulation. I want to do a simular simulation like a following adres.

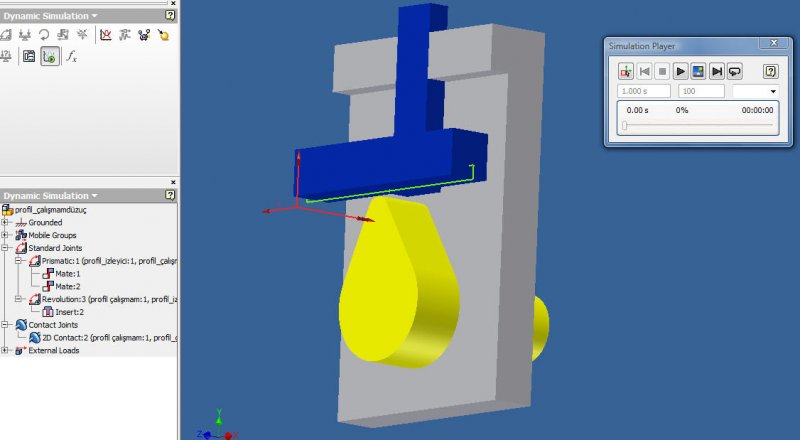

But I couldn’t yet.Because I have a mistake defined to joint.Normaly flat follower has to move together by cam.But it has no moved.Can you prepare this simulation for me or explain my mistake.

Best regards…

[JD Mather]

ses4

you have posted in the wrong forum. You should post this in the Inventor forum.

Zip and attach your assembly there.

I do not see a Spring/Damper/Jack Force (expand your External Loads node in the browser)

[ses4]

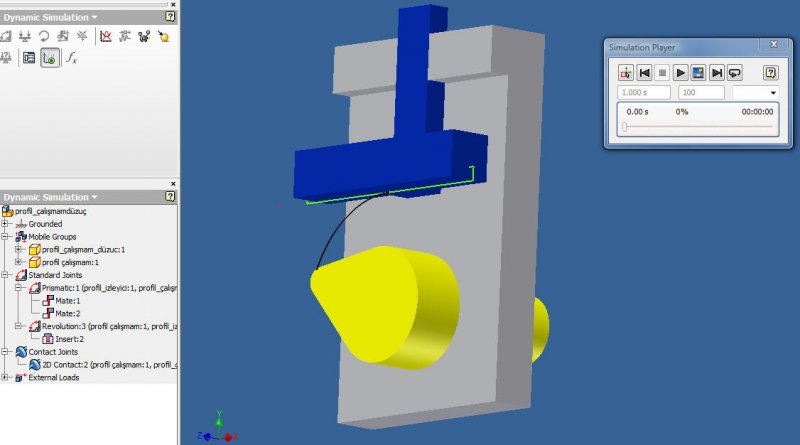

Dear JD Mather thanks for your answer.I want to converter cams profile value roller follower to flat follower but I did'nt yet.Could you help me please.

[JD Mather]

Do you know the desired displacement profile?

[ses4]

Drawing1.dwg

Do you know the desired displacement profile?

please help me?

http://rapidshare.com/files/456862919/body.ipt

http://rapidshare.com/files/456862920/flat_follower.ipt

http://rapidshare.com/files/456862921/sablon.ipt

http://rapidshare.com/files/456863062/flat_follower.iam

http://rapidshare.com/files/456863133/Sablon.XLS

Edited April 11, 2011 by ses4

[JD Mather]

You spreadsheet list of coordinates is not a displacement diagram. And it appears to have been generated for a round follower.

What is the rise, fall, dwell and acceleration profile for your cam? (you can create this using the Cam Generator even though your follower will not be round - post a screenshot of your displacement diagram)
