manukrisha Posted February 25, 2011 Posted February 25, 2011 I'm desigening Scroll Compressor and don know how to draw Spiral (as showen below) in solidworks......I made it with splinge but it's not perfect ....please suggest how to draw it. Thank You Manoj Krishna Quote
rdharvey Posted February 25, 2011 Posted February 25, 2011 http://www.cadtutor.net/forum/showthread.php?25698-2D-Spiral-in-Inventor This guy says he can do it in SW Quote
manukrisha Posted February 25, 2011 Author Posted February 25, 2011 I Asked him but JD suggested to ask in SW forum.......im desperate to get through, plz suggest! Quote

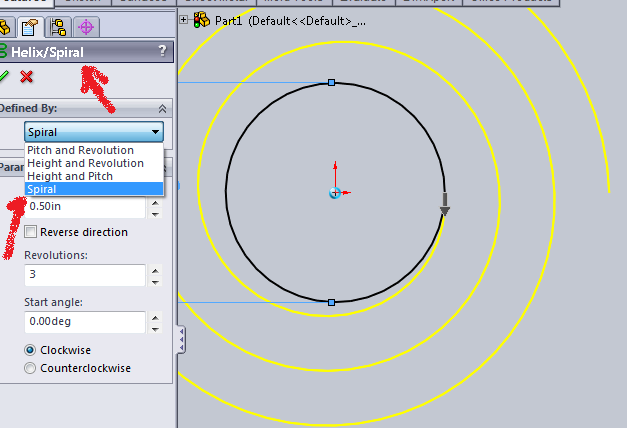

JD Mather Posted February 25, 2011 Posted February 25, 2011 I'm surprised that you didn't find it - it is almost identical to Inventor. (see attached image) Quote
shift1313 Posted April 3, 2011 Posted April 3, 2011 SW now allows you to create an equation driven spline using a parametric equation. Spiral is much easier though Quote
