How do you display objects in one layout and not display it in other layouts?

[MeepMeep]

I'll try to be as specific as I can. I am currently making a set of drawings.

Let's say I have two objects.

When I plot Layout 1, I want both objects to show on paper.

When I plot Layout 2, I want only the first object to show on paper.

When I plot Layout 3, I want only the second object to show on paper.

When I go into model space, I want both objects to appear on screen.

How would I do that?

[f700es]

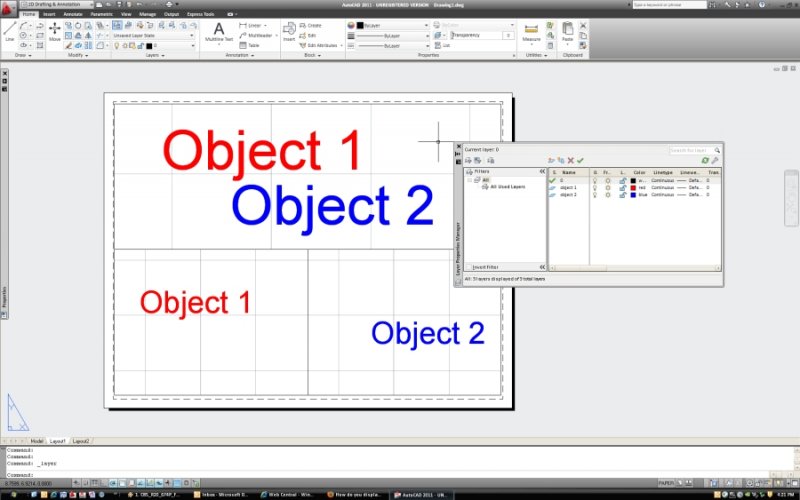

You have them on different layers and freeze/thaw the different layers in the different view ports

[Dana W]

Assuming you have drawn your two objects in modelspace, go to paperspace (layout(s)) and simply pan, and/or shrink the viewports on each layout until only what you want is showing. You don't have to live with the default size or viewpoint of the viewports. You can resize, pan and zoom(scale) a viewport to cuatomize what is plotted without changing anything in modelspace. A viewport in paperspace is a window back into modelspace.

[MeepMeep]

You have them on different layers and freeze/thaw the different layers in the different view ports



That works but it would cause confusions for the layer naming convention. Thanks for the effort.

[MeepMeep]

Assuming you have drawn your two objects in modelspace, go to paperspace (layout(s)) and simply pan, and/or shrink the viewports on each layout until only what you want is showing. You don't have to live with the default size or viewpoint of the viewports. You can resize, pan and zoom(scale) a viewport to cuatomize what is plotted without changing anything in modelspace. A viewport in paperspace is a window back into modelspace.



I understand what you mean but what if the two objects were to intersect each other?

[Dana W]

I understand what you mean but what if the two objects were to intersect each other?

Then see f700es' reply above.

[tzframpton]

That works but it would cause confusions for the layer naming convention. Thanks for the effort.

Don't be affraid to change your methods to increase productivity.

[SLW210]

I'll try to be as specific as I can. I am currently making a set of drawings.

Let's say I have two objects.

When I plot Layout 1, I want both objects to show on paper.

When I plot Layout 2, I want only the first object to show on paper.

When I plot Layout 3, I want only the second object to show on paper.

When I go into model space, I want both objects to appear on screen.

How would I do that?



Originally Posted by f700es

You have them on different layers and freeze/thaw the different layers in the different view ports



That is precisely the reason AutoCAD has freeze layer in viewports and viewports for plotting drawings.



That works but it would cause confusions for the layer naming convention.



What layer naming convention? I guess you can't use Xrefs either.



Then see f700es' reply above.



Don't be affraid to change your methods to increase productivity.



If you want to be stubborn about, then do it the hard way. Copy & Paste into the layout tabs and go through each one deleting what you do not want in the tab, depending on the situation you may be able to use wipeouts. With all of that work and time you may as well use a drafting board.

[MeepMeep]

Don't be affraid to change your methods to increase productivity.



StykFacE you're right!

And to SLW210, I agree that that is the reason for VP freeze.

And thank you f700es as well.

[f700es]

That works but it would cause confusions for the layer naming convention. Thanks for the effort.



Honestly it's pretty easy, you would only use 2 layers.





Mine are not over lapping but they could be with no issue.

[f700es]

Some of my biggest fights with office users is layer naming. I am a K-I-S-S guy



Welcome aboard BTW
