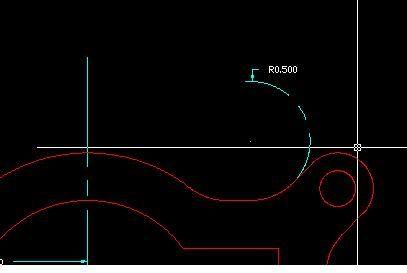

bradbb2005 Posted September 24, 2008 Posted September 24, 2008 Hey all i am in and Autocad class and when i try to dimension a fillet i get this, Now i have searched and tried the dimoverride command and change dimse1 to on it still doesnt help, all i want to do is move the leader to the inside of the fillet so it doesnt clutter the drawing, BTW i am running Autocad 2008. Thanks for your help. Brad B. Quote
bradbb2005 Posted September 25, 2008 Author Posted September 25, 2008 Works Excellent, i appreciate your help! Brad Quote

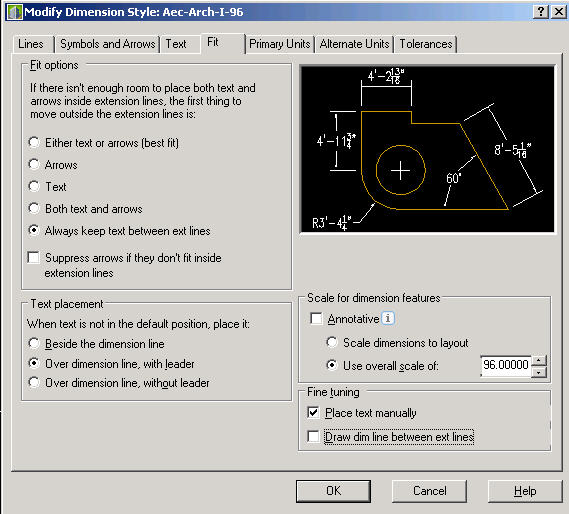

Strix Posted September 25, 2008 Posted September 25, 2008 Why's the overall scale set to 96.00000 in that example kwortman? Quote
kwortman Posted September 26, 2008 Posted September 26, 2008 Because that is the default setting for Aec-Arch-I-96 when the drawing is set to 1/8" = 1'-0" scale Out Of The Box. Just like it is set to 12.00000 when the drawing is set to 1" = 1'-0", Strix Quote
bradbb2005 Posted September 29, 2008 Author Posted September 29, 2008 I have found with these settings, that the linear dimensions do not work properly and you are required to move the dimension text. Brad Quote

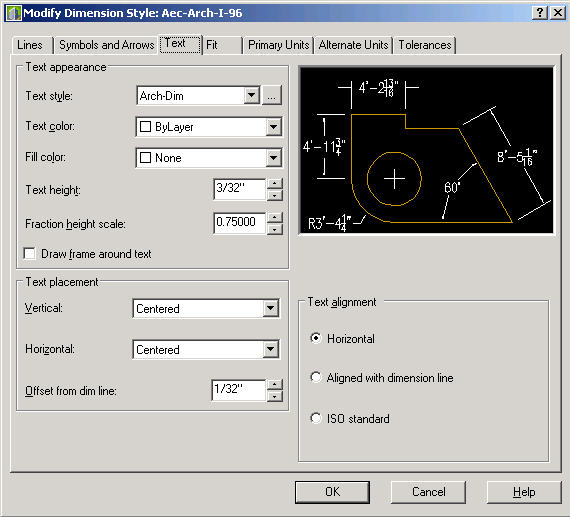

kwortman Posted October 10, 2008 Posted October 10, 2008 You can choose to not have the text placed manually within the dimension style Quote
jjcotton Posted April 21, 2010 Posted April 21, 2010 Hey all i am in and Autocad class and when i try to dimension a fillet i get this, Now i have searched and tried the dimoverride command and change dimse1 to on it still doesnt help, all i want to do is move the leader to the inside of the fillet so it doesnt clutter the drawing, BTW i am running Autocad 2008. Thanks for your help. Brad B. I'm having the same problem with 2010. I don't want the arc showing in my fillet dimension. Quote
