View Isometric 3D and Its 2D Views( Top, Elevation and front View) !!

[basiony]

How can I view the Isometric Item with its Views ( Top. Elevation and Front View )



in the same paper, or in same drawing file ...



, thanks

[ReMark]

Is this a 2D or 3D drawing that we are talking about?



Can you post an image?

[basiony]





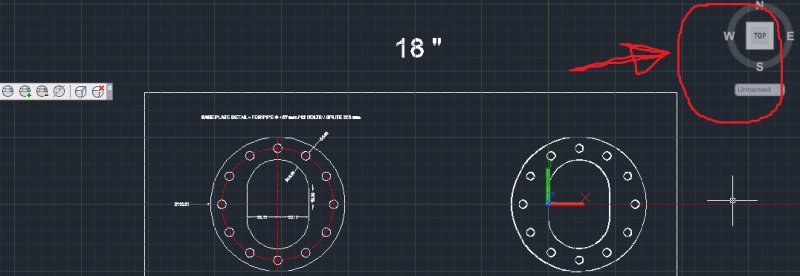

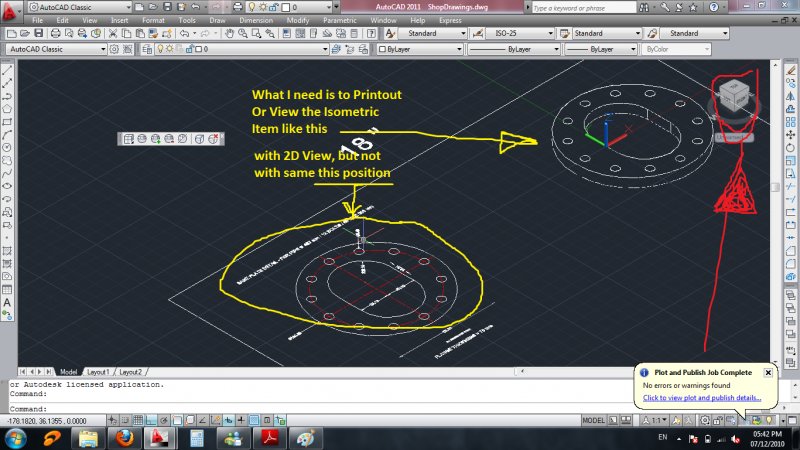

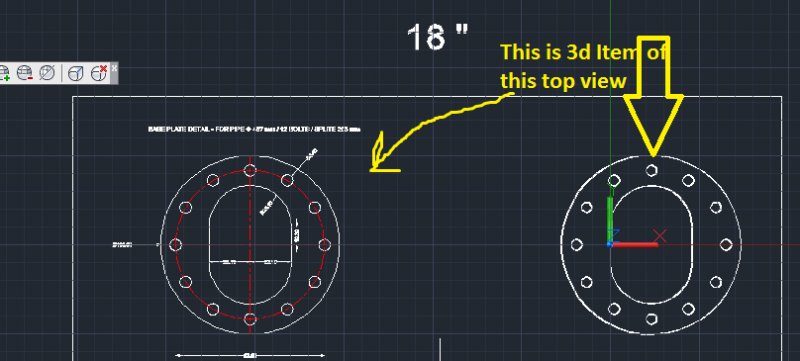

[ReMark]

Do you want to do this in model space or a layout using paperspace?

[ReMark]

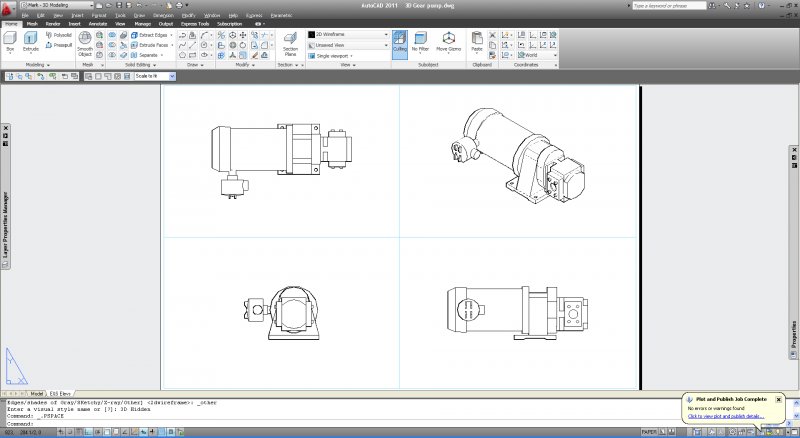

This multiview of a gear pump was done very quickly in a layout. The visual style was 3D Hidden.



[basiony]

ShopDrawings.dwg





the dwg filethe dwg file





Is this a 2D or 3D drawing that we are talking about?



Can you post an image?

[basiony]

exactly this wat i want ...



could tell us step by step to things like that





This multiview of a gear pump was done very quickly in a layout. The visual style was 3D Hidden.



[ATTACH]25031[/ATTACH]

[ReMark]

I went into a layout and used the Viewports command. My settings were Four: Equal, Setup: 3D and Visual Style: 3D Hidden. I elected to use the "Fit" option for my viewports so all four of them filled the page.



In the example I posted I selected my printer and page size using the Page Setup Manager.



Note: This is just a very quick and dirty way of getting what appears to be 2D views. They are not truely 2D. For that you would have to use a different method. Flatshot is one option. Another option is SolProf. Yet a third option is the combination commands of SolView and SolDraw.
