Original Ground Profile


Recommended Posts

Posted

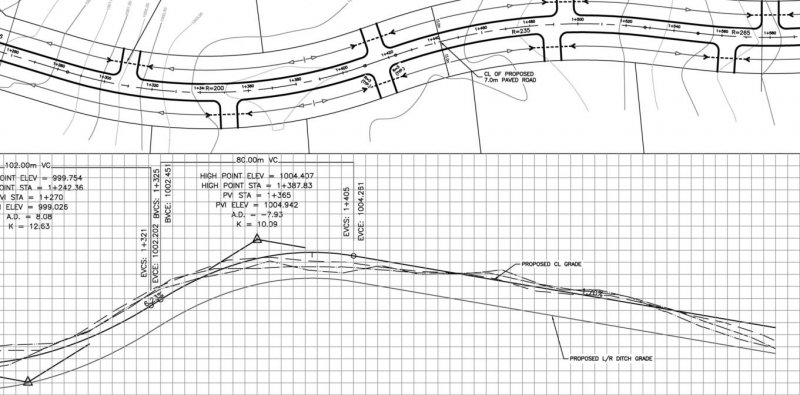

I'm in the land development sector and we often do country residentials. My question is in a road right of way profile you can show center line of road original ground (center line alignment) but can you also show original ground for the property lines?





The various dashed lines show property lines & center line of road. As well is there a way to match the ditch grade @ 1m below edge of pavement grade?



Thanks




Posted

Dont use the Autodesk plot routines use 3rd party and we can plot basicly any lines. Check the help for plotting multiple alignments and strings



Search help for "Creating stacked profile views" help says "contains centreline and right and left offset profiles" exercise 6 2011 hope this helps



How many times did I type help ?
