drawing a hose on a curve

[abishop]

Can anyone get me started on how to draw a .5 dia hose 29 inches long in the shape of a U?

thanks

AndyB

[czc]

I would sketch the U shape and sweep.

[abishop]

on different work planes?

[jdits7]

Yes, on two different work planes, example, circle on the top plane, U shape on the front plane.

[shift1313]

Yes. If you draw the Hose profile on one plane, then draw the U shape on a plane that is 90degrees off(using the standard planes, dont create a new one if you dont have to). Make sure the U sketch is coincident with the center of your circle and use Sweep. What version of inventor are you using?

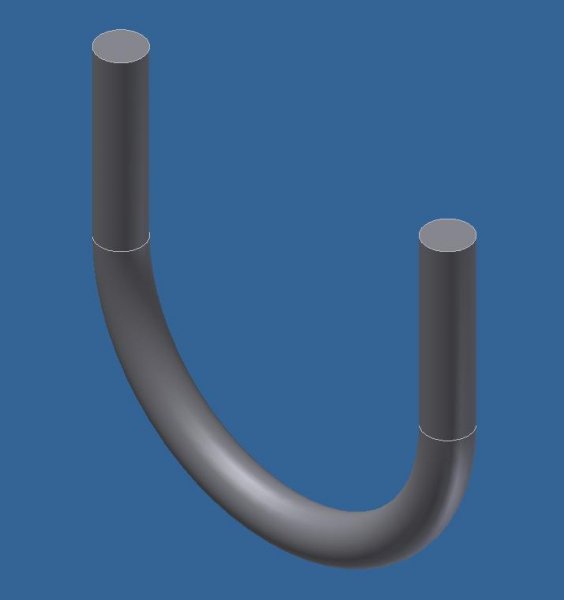

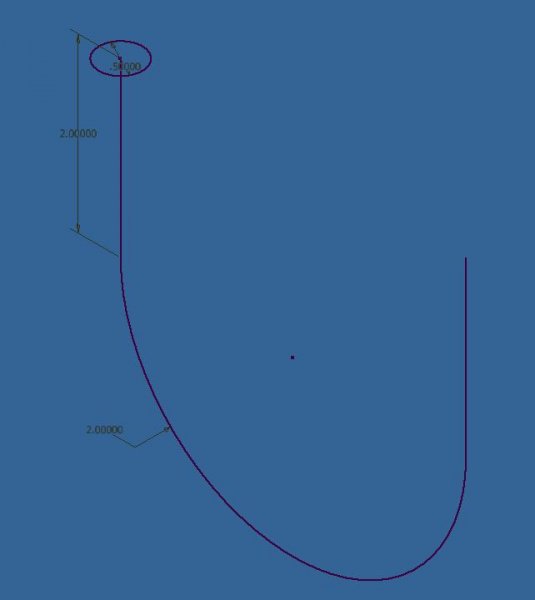

Ive attached an example(not 29" long).

IVSweep.zip

[abishop]

how do you coincident something on 2 diff planes? The cirlce to the path line?

[abishop]

never mind, i always forget to project. I will let you know when i have it.........

[Steve_wright]

Abishop

here's a step by step tuturial of how i would do it .



new sketch

draw your desired shape from the center dot, (finish sketch)

click work plane , then in origin click yz plane ..then move your curser over any end of the curve and click...then click new sketch on that plane.

if you cant pick up the end point then project geomtry ..then draw your circle and diamention it.

once you done that click finish sketch go to sweep...... profile the circle....... and use the shape as your path

i think it should do it automatically



anyway thats how i would do it..bare in mind i really am learning myself

Steve:unsure:...lol unsure icon..(.but it did work for me .)

[Hopinc]

Abishop, you have not indicated which version of Inventor you are using, so I am hoping that it is 2011?

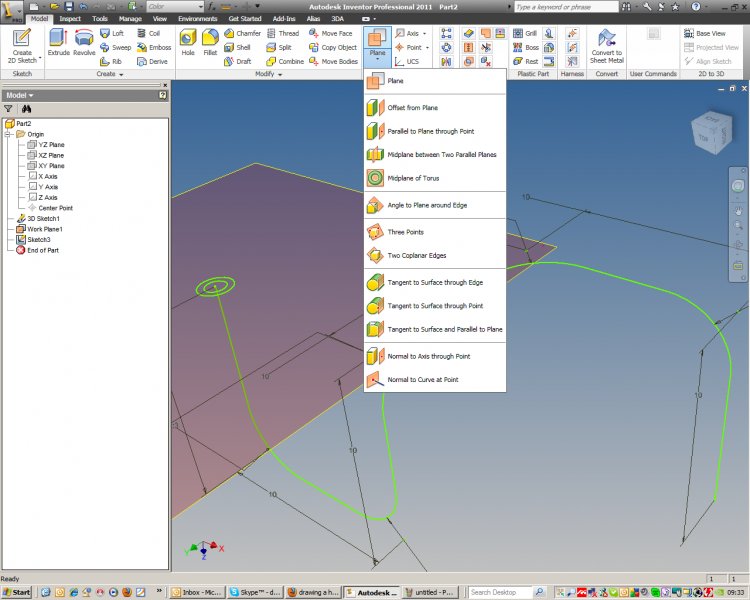

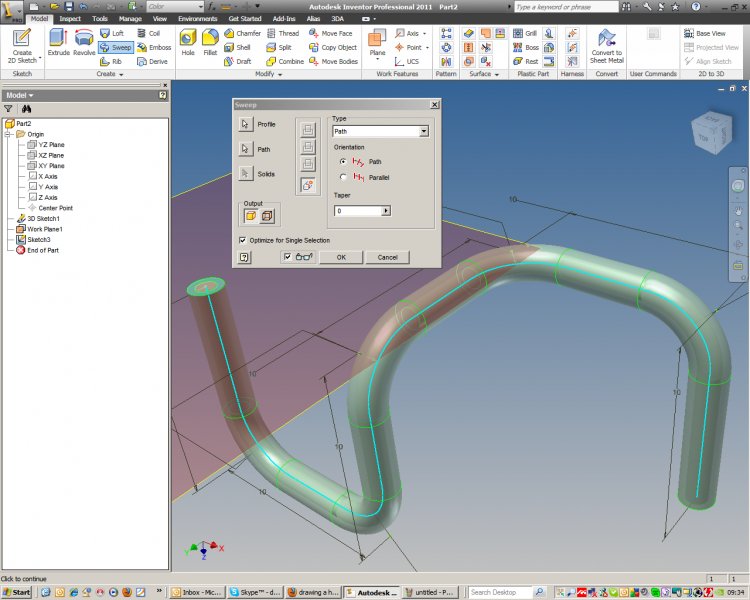

This latest version of the software has an improved menu giving better access to drawing planes. See picture 1 - here I have created a 3D sketch and used the "Normal to axis through point" command to generate a plane perpendicular to one of the pipe axes so I can create a profile to sweep. It's quick and simple.
