How create these lines with line command

[Masih]

Hi everyone,

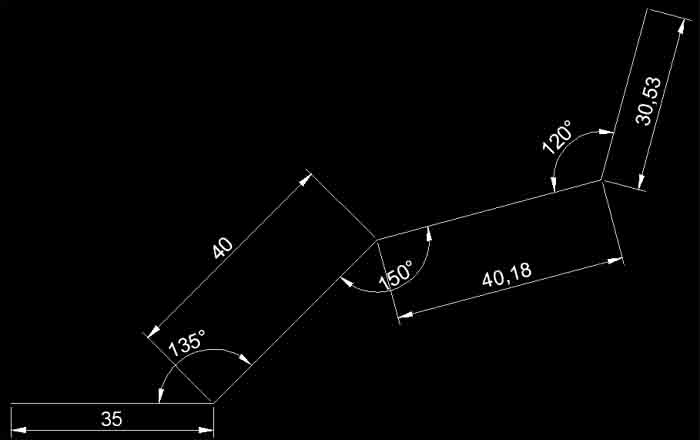

I want to create this sketch! I have these questions:



1- Can I make it with line command? If answer is negative, with which command I can and how?



2- If I can use line command, how can I put angles? Because in every new line, the line rotate and I must calculate it and its so difficault!



[lpseifert]

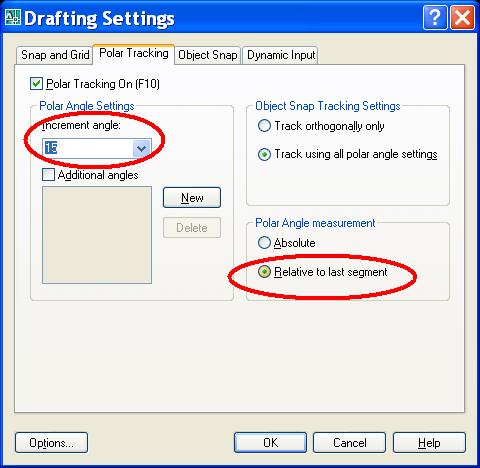

Set up Polar Tracking for 15 degrees and 'Relative to last segment'... some thought required but easier

[BlackBox]

Congrats on your first post, and welcome to the forums!



Is *someone* having trouble with their AutoCAD homework..? (Just kidding!)



Yes, you can use the ._line command.



Once you select your start point, enter this: @Distance





Hope this helps!



Edit: Hehehehe!



LINE Specify first point:

Specify next point or [undo]: @35

Specify next point or [undo]:

Resuming LINE command.

Specify next point or [undo]: @40

Specify next point or [Close/Undo]:

Resuming LINE command.

Specify next point or [Close/Undo]: @40.18

Specify next point or [Close/Undo]:

Resuming LINE command.

Specify next point or [Close/Undo]: @30.53

Edited September 10, 2010 by BlackBox
Hehehehe!

[Masih]

Dear lpseifert,

Thanks so much of your help. This will solve my problem!

[Masih]

Thanks RenderMan,



Yes! Im newbie at autocad and at forum but I read most post and learn many things! Anyway.... Thanks for your greeting!

[BlackBox]

Cheers!
