Polyline Width Query

[happyunited]

Hi,



I have copied a closed PL from one drawing to another and it looks perfect on the first drawing but when I paste it in it's missing the centre solid bit. Anyone know why this is happening?

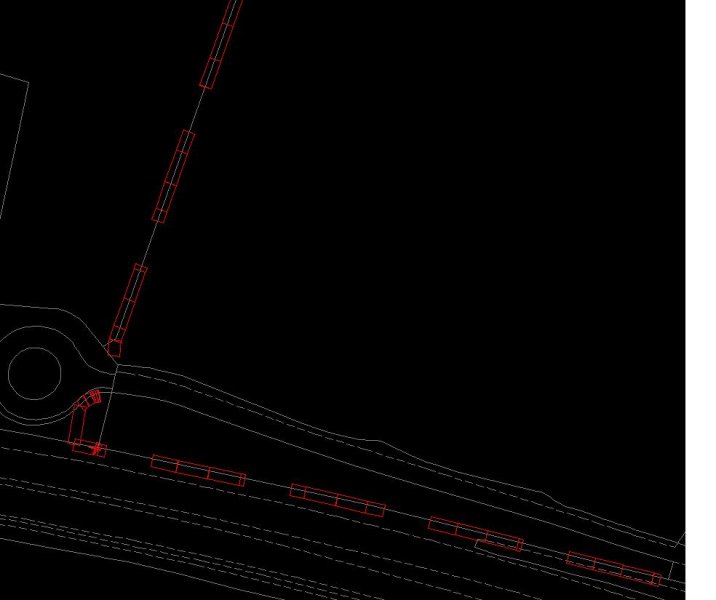

It's the red line in the attached image.



Thanks in advance.

[ReMark]

Red on black. It's a great color combination (I have it on my motorcycle) but it sucks when it comes to reading images off a screen.



You're missing the centre solid bit? Has FILL been turned OFF? I can't tell for sure because I can hardly see anything in the above image. Wait a bit while I turn up the brightness control on my monitor.

[happyunited]

Red on black. It's a great color combination (I have it on my motorcycle) but it sucks when it comes to reading images off a screen.



You're missing the centre solid bit? Has FILL been turned OFF? I can't tell for sure because I can hardly see anything in the above image. Wait a bit while I turn up the brightness control on my monitor.



It's clear enough



FILL is ON.



If I insert the red line as a block and go into block editor it looks fine but when I come out it has the hollow bit.

[ReMark]

Must be my on-its-last-legs 10 year old CRT! LOL



I'd take another shot at it but since I can't see the image it would be a shot in the dark.



Sorry...just could not resist.

[ReMark]

I just tried to recreate what I hope have described by making an object using a polyline with an assigned width and turning it into a block. I then inserted the block and the polyline retained its width. Fill was verified as ON. I turned Fill OFF and the image on my screen remained unchanged until I did a Regen. Did you try a Regen?
