fbby Posted August 9, 2010 Share Posted August 9, 2010 hi everyone, I need to make a roof but I cant erase or cut it. I want to cut the solid object with the white line and put hatch on the angle portion, or any other ideas how to make like this roof? any suggestions is very appeciate thanks check my attachment pls roof.dwg Quote Link to comment Share on other sites More sharing options...

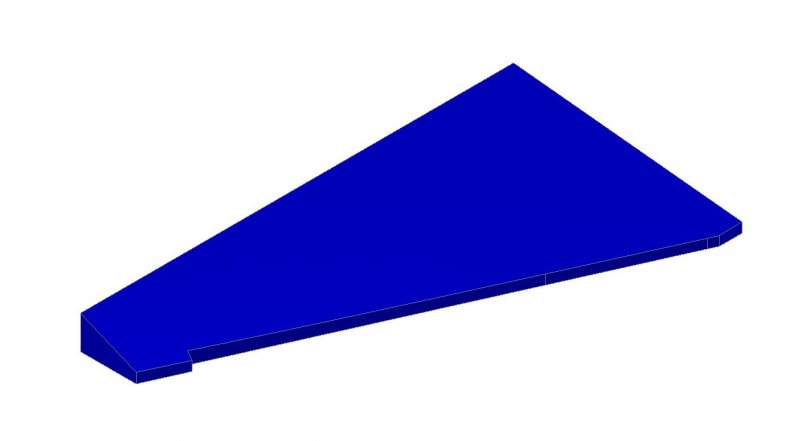

ReMark Posted August 9, 2010 Share Posted August 9, 2010 Is this the shape you were looking to end up with? Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 9, 2010 Share Posted August 9, 2010 fbby: Did you get it all figured out or what? Quote Link to comment Share on other sites More sharing options...
fbby Posted August 11, 2010 Author Share Posted August 11, 2010 fbby: Did you get it all figured out or what? sori for the late reply, yes that is the figured I need, can you please tell me how to make that thanks ___________________________ sorry for my english Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 12, 2010 Share Posted August 12, 2010 I'll have to see if I saved your file. I thought perhaps you had already solved the problem yourself. I'll be back. Quote Link to comment Share on other sites More sharing options...
Bobzy20 Posted August 12, 2010 Share Posted August 12, 2010 Hi ReMark How did you create that shape from the input drawing? It seems you can’t do much with that red cut line in the drawing, I can’t even explode it. Let me know if you can. Thanks Bobzy20 Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 12, 2010 Share Posted August 12, 2010 The roof is, as mentioned, a 3D solid. The red line is actually a 3D face. I tried working with it but quickly discarded that idea. I repositioned my UCS then drew drew a polylined triangle at both ends that went slightly beyond the lower edge of the 3D solid. Then I used the Loft command and selected the two triangles. This created a new 3D solid which I then subtracted from fbby's original, yellow colored roof. I failed to hatch it though. There is something unusual about the elevations of the corners that left the hatch in a position that did not align itself with the sloped roof. At that point I decided I had done enough. I'll leave that problem to someone much smarter than me. Maybe that person is you. Quote Link to comment Share on other sites More sharing options...
Bobzy20 Posted August 13, 2010 Share Posted August 13, 2010 Cheers for that, after creating the new solid as you stated I used the intersect command and it worked ok. The hatching part didn’t work for me either. Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 13, 2010 Share Posted August 13, 2010 So the two of us have arrived at a solution (each in a slightly different way) but it appears fbby hasn't or he just doesn't care any more. I guess that puts an end to this thread unless the OP cares to make a return. Quote Link to comment Share on other sites More sharing options...

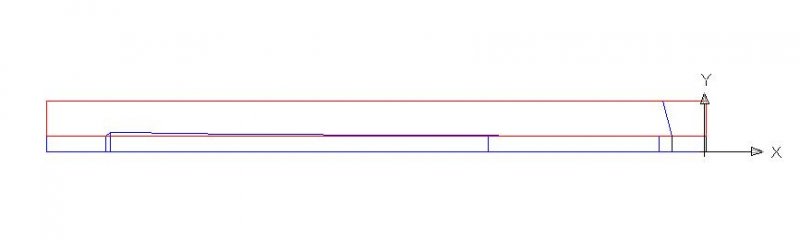

fbby Posted August 14, 2010 Author Share Posted August 14, 2010 I'd tried and I found this, the blue color is not align on the the red color see the attached pls ReMark or anybody if you have any idea how to make a roof like this and to put some hatch on it ___________________________ sorry for my english Quote Link to comment Share on other sites More sharing options...
