Pline area into table

[sachindkini]

Dear All







Pline area into table

1. Select pline (various layer for example area-1, area-2, area-e etc. )

2. Add area center of pline (area in sq.mt. & sq.ft.)

3. And total in table (various layer for example area-1, area-2, area-e etc. )


i'm all ready post here

http://www.cadtutor.net/forum/showthread.php?50515-Drawing-a-PLINE-and-getting-it-s-area-LISP

PROPIEDADES_ENTIDAD.lsp

[Lee Mac]

Yes, and what is your question?

[sachindkini]

Yes, and what is your question?

dear sir

sorry for my bad english

my question is

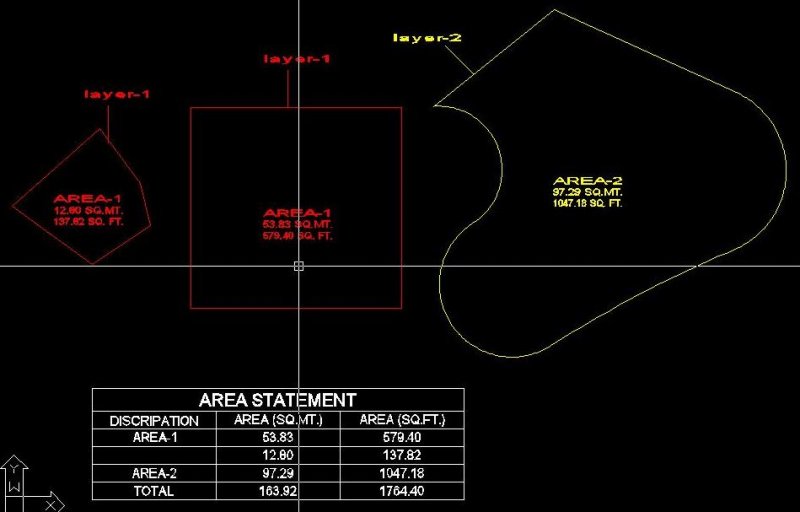

1) after selete pline create autocad table and

area of pline put in table & center of pline. see my jpg file

2) area in tbale by layer vise (area-1, area-2 etc...)

see example of pline to excle file

(defun c:pline-area ( / *error* data-lst sorted-lst str-lst top-str polys

data cnt obj file-nm tmp item tmp-str fl)

(defun *error* (msg)

(if(= msg "quit / exit abort")

(princ "\nNo output file was selected")

(princ msg)

)

)



(setq top-str ""

file-nm (getfiled "Output File" "" "csv" 1)

)

(if(null file-nm)(exit))

(if(setq polys(ssget '((0 . "*POLYLINE"))))

(repeat(setq cnt(sslength polys))

(setq obj (vlax-ename->vla-object

(ssname polys

(setq cnt(1- cnt))

)

)

data-lst (cons

(list(vlax-get obj 'Layer)

(vlax-get obj 'Area)

)

data-lst

)

)

)

)

(while data-lst

(setq data (car data-lst)

data-lst (cdr data-lst)

tmp (list data)

)

(foreach item data-lst

(if(=(car item)(car data))

(setq tmp (cons item tmp)

data-lst (vl-remove item data-lst)

)

)

)

(setq sorted-lst(cons tmp sorted-lst))

)

(setq sorted-lst

(vl-sort sorted-lst '(lambda(a b)(

)

(foreach item (reverse sorted-lst)

(setq top-str

(strcat(caar item)"," top-str)

)

)

(setq str-lst (cons top-str str-lst)

cnt 0

)

(repeat(apply 'max(mapcar 'length sorted-lst))

(setq tmp-str "")

(foreach item (reverse sorted-lst)

(setq tmp-str

(if(setq tmp(nth cnt item))

(strcat(rtos(cadr tmp)) "," tmp-str)

(strcat "," tmp-str)

)

)

)

(setq cnt (1+ cnt)

str-lst (cons tmp-str str-lst)

)

)

(if(setq fl(open file-nm "w"))

(progn

(foreach str (reverse str-lst)

(write-line str fl)

)

(close fl)

(alert(strcat file-nm " was created"))

)

(alert "Unable to create file")

)

(princ)

)

[sachindkini]

Yes, and what is your question?



dear sir

just like u r

Line Length Calculator

add opation selction
