Question about polyline drawing

[Wakkaman]

Hi all,



I started this week with autocad and did some tutorials. I am trying to reproduce this garden in autocad, just for practice:





Most stuff i am able to do. But the only thing i really find difficult is the fluid forms you see below in the garden.

I am aware of the polyline functions, and i am able to do it with polyline/arc, but it's really not intuitive and rather difficult.

I am also aware of the polyline options curve or split fit, but that's really not precise at all.



Any suggestion how to this more easy?



(And i have also another problem, somehow when i use polyline i get these weird boxes when drawing, probably turned something on....?)



(srry for my broken english).

[ReMark]

Your weird boxes might be due to having the system variable FILL turned off.

[ReMark]

Re: fluid curves used for pathways.



You could bring an image into AutoCAD and do your best to trace over them with a polyline then use the Spline option of the Pedit command to approximate them. A better way would be to digitize them in (electronic tracing) but you probably do not have a digitizer hanging around. The method would be very similar to the first one I mentioned but your picks would be more precise and you could use short polyline segments to rough-out the curves before converting them to splines.

[Wakkaman]

Hej ReMark,



Thnks for your reply.



i went to a website for system variable fill command: SYSVDLG



But the command doesn't work.



I use autocadLT.

[ReMark]

Try typing the word FILL at the command line. If the command is recognized then set it from Off to On.

[Wakkaman]

Thnks again for the quick reply's.



I did fill, and tried off and on to see what is happens. If i turn fill off i still have this box instead of a line, if i turn fill on it get's even worse, becease the boxes are like a hatch/filled.

[Wakkaman]

Immediately when you click a point and want to draw it's not a line but a box.

[ReMark]

Did you do a Regen after making the change from Off to On?

[Wakkaman]

Did regen, doesn't help..

[ReMark]

Just out of curiousity what width are you using for your polylines?

[Wakkaman]

Man thnks, i am stupid....



That was the problem.

[Wakkaman]

Thnks for the help and advice .

[ReMark]

Made more than my share of stupid mistakes too. Live and learn.



You're entirely welcomed.

[eldon]

You could bring an image into AutoCAD and do your best to trace over them with a polyline then use the Spline option of the Pedit command to approximate them.

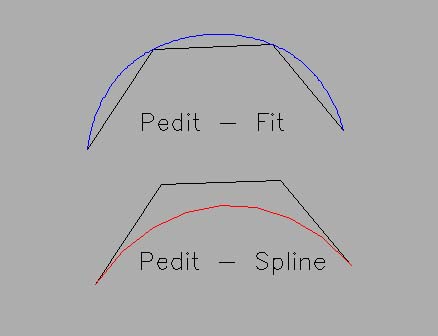

On a purely personal quest for understanding, could you please explain why you recommend the Spline option, when by doing that, the resultant curve pulls away from the pick points?



I would have used the Fit option, but I am willing to learn new techniques.

[ReMark]

My picks using the digitizer's puck are so close together by the time I back out of the drawing (I zoom in quite close) the difference between "fit curve" and "spline" is negligible. But I do concede your excellent point.

[rkent]

You might try the SPLINE command also.

[Wakkaman]

Thnks all for advice.



I used spline goes excellent.
