Centre Line between two Polylines

[alanjt]

Hai here i have attached my dwg fortesting.....Actuall i am selecting two means its automatically need to take center point and offset that line..........[ATTACH]23380[/ATTACH]

Works fine on my end. What exactly is it doing? Copy everything that is returned to the command line and paste it here.



eg.

Command: lbl

Select first open curve:
Select next open curve:
Specify line to draw: [Lwpolyline/Polyline] <Lwpolyline>:

[JHammond]

Hai here i have attached my dwg fortesting.....Actuall i am selecting two means its automatically need to take center point and offset that line..........[ATTACH]23380[/ATTACH]

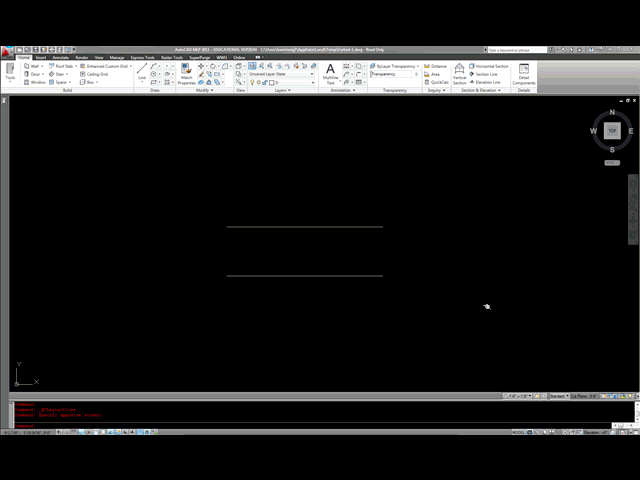

Hi, I just opened your drawing and tested the routine. It seems to be working fine to me. Here is a screen capture of what I am doing:

In case it is blurry, I entered LBL on the command line, then selected the top line, then the bottom line. After that I did a regen on the screen. Is this somehow not doing what you expect?

[alanjt]

Hi, I just opened your drawing and tested the routine. It seems to be working fine to me. Here is a screen capture of what I am doing:

In case it is blurry, I entered LBL on the command line, then selected the top line, then the bottom line. After that I did a regen on the screen. Is this somehow not doing what you expect?

So, does this give you what you were wanting?

[JHammond]

Yeah, its exactly what I was after. It seemed to me that balajibth84 was having problems with the routine. My little video was just showing it working.

[alanjt]

Yeah, its exactly what I was after. It seemed to me that balajibth84 was having problems with the routine. My little video was just showing it working.

You're welcome.

[marmo]

Try this lisp.

Rolling_ball_method.lsp

[marmo]

Works with 2dpline

[gutter2d]

(defun c:LBL (/ foo AT:GetSel _pnts _pline _lwpline _dist e1 e2)
 ;; Draw (LW)Polyline between two selected curves (at midpoint of vertices).
 ;; Alan J. Thompson, 09.29.10

 (vl-load-com)

 (defun foo (e)
   (and (wcmatch (cdr (assoc 0 (entget (car e)))) "LINE,*POLYLINE,SPLINE")
        (not (vlax-curve-isClosed (car e)))
   )
 )

 (defun AT:GetSel (meth msg fnc / ent good)
   ;; meth - selection method (entsel, nentsel, nentselp)
   ;; msg - message to display (nil for default)
   ;; fnc - optional function to apply to selected object
   ;; Ex: (AT:GetSel entsel "\nSelect arc: " (lambda (x) (eq (cdr (assoc 0 (entget (car x)))) "ARC")))
   ;; Alan J. Thompson, 05.25.10
   (setvar 'errno 0)
   (while (not good)
     (setq ent (meth (cond (msg)
                           ("\nSelect object: ")
                     )
               )
     )
     (cond
       ((vl-consp ent)
        (setq good (cond ((or (not fnc) (fnc ent)) ent)
                         ((prompt "\nInvalid object!"))
                   )
        )
       )
       ((eq (type ent) 'STR) (setq good ent))
       ((setq good (eq 52 (getvar 'errno))) nil)
       ((eq 7 (getvar 'errno)) (setq good (prompt "\nMissed, try again.")))
     )
   )
 )

 (defun _pnts (e / p l)
   (if e
     (cond ((wcmatch (cdr (assoc 0 (entget e))) "ARC,LINE,SPLINE")
            (list (vlax-curve-getStartPoint e) (vlax-curve-getEndPoint e))
           )
           ((wcmatch (cdr (assoc 0 (entget e))) "*POLYLINE")
            (repeat (setq p (1+ (fix (vlax-curve-getEndParam e))))
              (setq l (cons (vlax-curve-getPointAtParam e (setq p (1- p))) l))
            )
           )
     )
   )
 )

 (defun _pline (lst)
   (if (and (> (length lst) 1)
            (entmakex '((0 . "POLYLINE") (10 0 0 0)))
            (foreach x lst (entmakex (list '(0 . "VERTEX") (cons 10 x))))
       )
     (cdr (assoc 330 (entget (entmakex '((0 . "SEQEND"))))))
   )
 )

 (defun _lwpline (lst)
   (if (> (length lst) 1)
     (entmakex (append
                 (list '(0 . "LWPOLYLINE")
                       '(100 . "AcDbEntity")
                       '(100 . "AcDbPolyline")
                       (cons 90 (length lst))
                       (cons 70 (* (getvar 'plinegen) 128))
                 )
                 (mapcar (function (lambda (p) (list 10 (car p) (cadr p)))) lst)
               )
     )
   )
 )

 (defun _dist (a b) (distance (list (car a) (cadr a)) (list (car b) (cadr b))))

 (if
   (and
     (setq e1 (_pnts (car (AT:GetSel entsel "\nSelect first open curve: " foo))))
     (setq e2 (_pnts (car (AT:GetSel entsel "\nSelect next open curve: " foo))))
     (not (initget 0 "Lwpolyline Polyline"))
     (setq *LBL:Opt* (cond ((getkword (strcat "\nSpecify line to draw: [Lwpolyline/Polyline] <"
                                              (cond (*LBL:Opt*)
                                                    ((setq *LBL:Opt* "Lwpolyline"))
                                              )
                                              ">: "
                                      )
                            )
                           )
                           (*LBL:Opt*)
                     )
     )
   )
    ((if (eq *LBL:Opt* "Lwpolyline")
       _lwpline
       _pline
     )
      (vl-remove nil
                 (mapcar (function (lambda (a b)
                                     (if (and a b (not (grdraw (trans a 0 1) (trans b 0 1) 1 1)))
                                       (mapcar (function (lambda (a b) (/ (+ a b) 2.))) a b)
                                     )
                                   )
                         )
                         e1
                         (if (< (_dist (car e1) (car e2))
                                (_dist (car e1) (last e2))
                             )
                           e2
                           (reverse e2)
                         )
                 )
      )
    )
 )
 (princ)
)



What do I do with the code posted to create the new command? I created a new command in the CUI and pasted this code as the macro, but it didn't work.

[alanjt]

What do I do with the code posted to create the new command? I created a new command in the CUI and pasted this code as the macro, but it didn't work.

http://www.cadtutor.net/forum/showthread.php?1390-How-to-use-the-LISP-routines-in-this-archive

[gutter2d]

http://www.cadtutor.net/forum/showthread.php?1390-How-to-use-the-LISP-routines-in-this-archive



It works now, thanks!
