srinu_vasu38 Posted June 1, 2010 Share Posted June 1, 2010 Dear Sir, Can u tell me how to draw a coiled in 2D drafting. is there any command. Thanking you Srininvas Quote Link to comment Share on other sites More sharing options...
ReMark Posted June 1, 2010 Share Posted June 1, 2010 Simple. Use the helix command. Quote Link to comment Share on other sites More sharing options...
srinu_vasu38 Posted June 1, 2010 Author Share Posted June 1, 2010 Dear sir, As u said i had used helix command. but i am unable to do offset. Please tell me how to do that. Thanking u Srinivas Quote Link to comment Share on other sites More sharing options...
ReMark Posted June 1, 2010 Share Posted June 1, 2010 How many turns in your coil? What is the radius of the inner and outer circles? Quote Link to comment Share on other sites More sharing options...

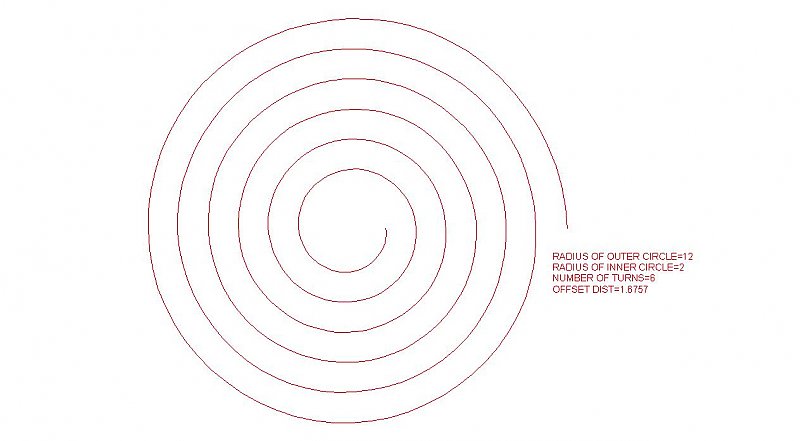

ReMark Posted June 1, 2010 Share Posted June 1, 2010 An example for you. I neglected to mention one important fact. You have to use the FLATTEN command on your helix. Quote Link to comment Share on other sites More sharing options...
amyyu Posted August 12, 2011 Share Posted August 12, 2011 How can I make the coil line thicker? I am using the 2012 AUTOCAD version and this is my first time using AUTOCAD. Thanks. Amy Quote Link to comment Share on other sites More sharing options...

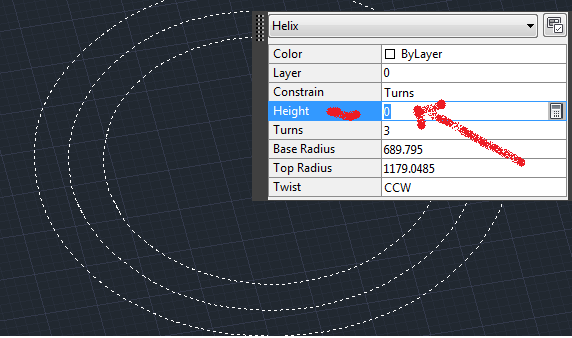

JD Mather Posted August 12, 2011 Share Posted August 12, 2011 I neglected to mention one important fact. You have to use the FLATTEN command on your helix. Not really. You can set the Turn Height to 0 for a coil during creation (or change it after the fact). Quote Link to comment Share on other sites More sharing options...
JD Mather Posted August 12, 2011 Share Posted August 12, 2011 How can I make the coil line thicker? I am using the 2012 AUTOCAD version and this is my first time using AUTOCAD. Thanks. Amy If you simply want the lineweight thicker - change that. If you want solid use the polysolid command and give it the height and thickness. Quote Link to comment Share on other sites More sharing options...
amyyu Posted August 12, 2011 Share Posted August 12, 2011 If you simply want the lineweight thicker - change that.If you want solid use the polysolid command and give it the height and thickness. Thanks, it works. Amy Quote Link to comment Share on other sites More sharing options...
