How to extrude and surface 3D sketch?

[TigWelder]

Hi everyone,



long time lurker, 1st time poster here. I'm trying to extrude a 3D sketch and also make it a surface so it will be a curved Cap for a Tank. Whenever I try to extrude the 3D sketch it asks for direction to be specified and when I try a direction it gives me geometry errors, so it doesn't work. I also tried the Insert/Surface/Fill feature and it doesn't fill the surface flat (like I need it to do).



Does anyone know how to do this? I feel like it's a simple step or procedure I'm missing...

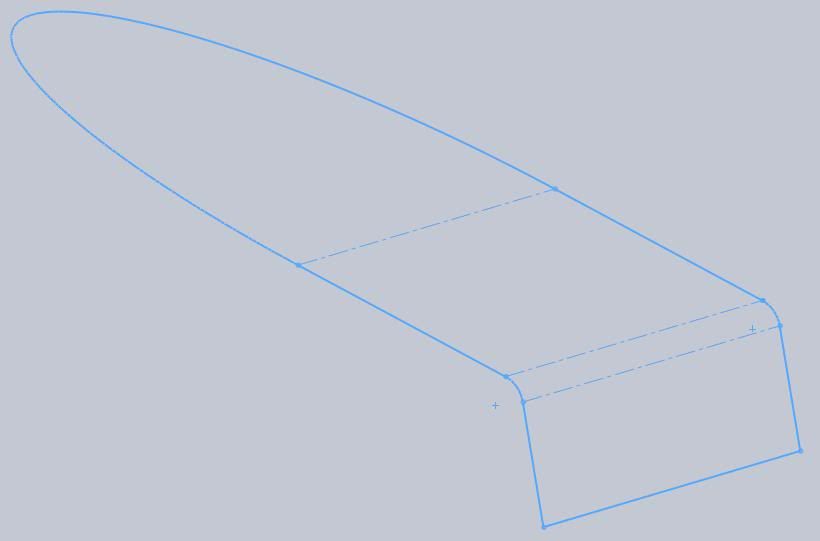

3D Sketch of the end cap



Tank that needs the above-outlined 3D cap to seal it

[JD Mather]

I also tried the Insert/Surface/Fill feature and it doesn't fill the surface flat (like I need it to do).



Can you attach the file here? Looks like you should be able to do a boundary fill and Thicken to get your cap.

[shift1313]

Hey Tig. Well the short answer is you cant extrude a 3d sketch. It needs to be 2d. Now there are a few ways you can make that shape though. Using your 3d sketch you can do a Filled Surface then Thicken it. You will need some guides or you can use a combination of Boundary surfaces. Knit them together then thicken.



You can extrude the profile of that in 2d, do a full round fillet.

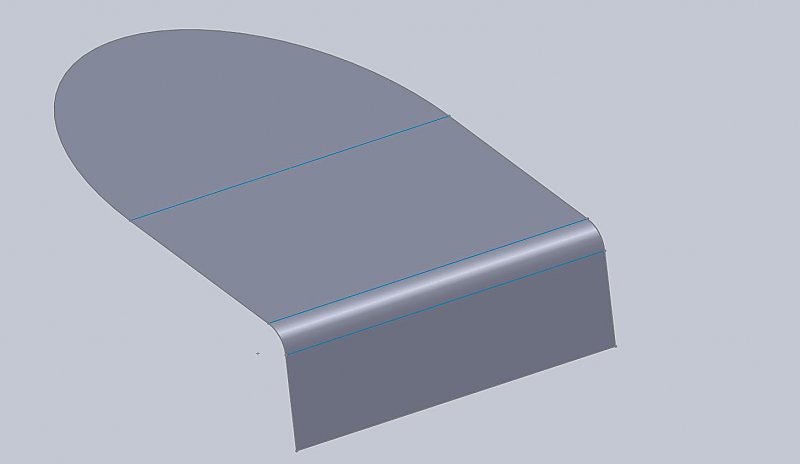

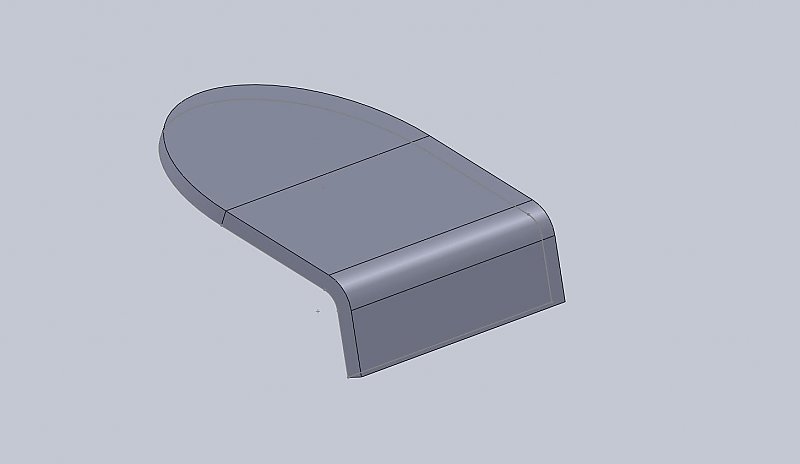

The first two pics show the 2d profile extruded, then a full round fillet added.

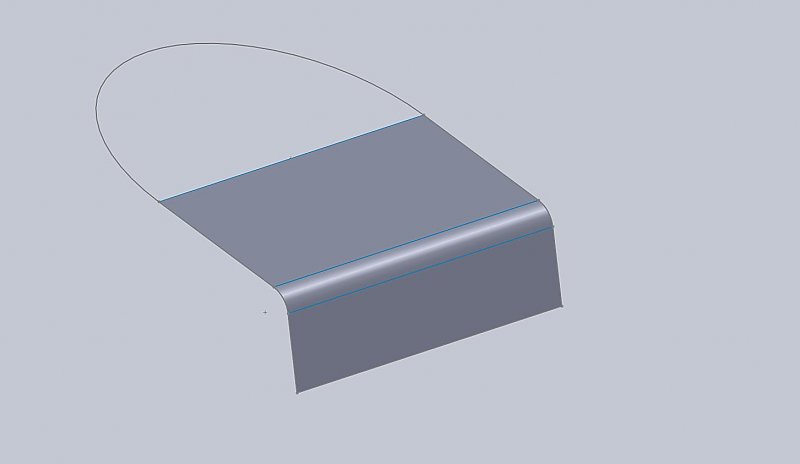

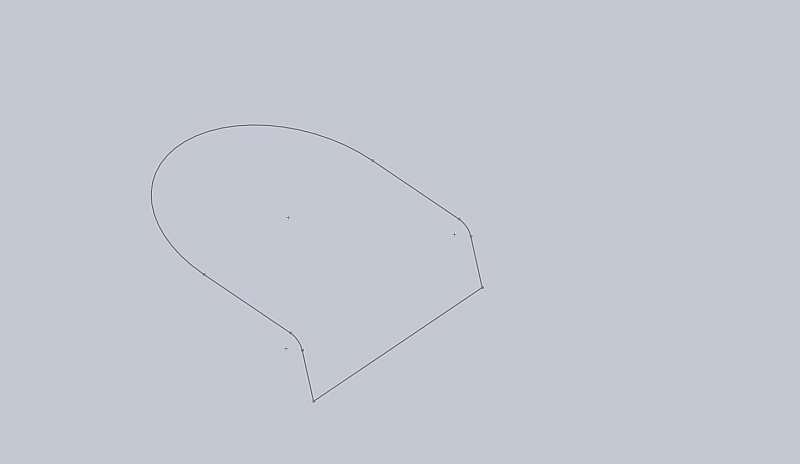

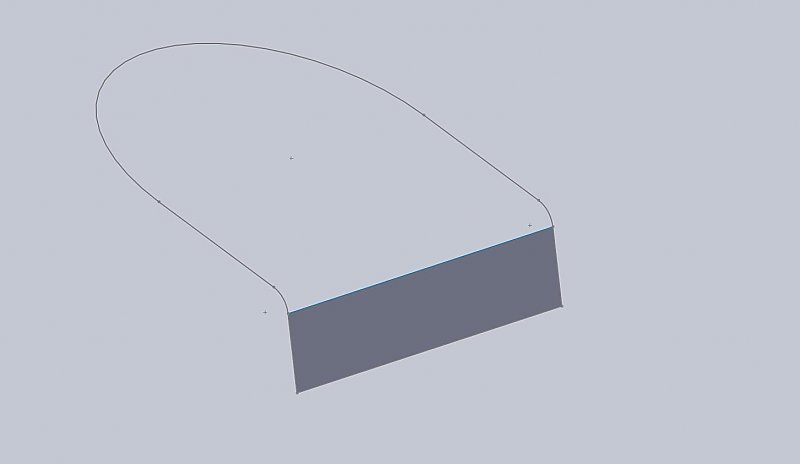

The next 6 or so show the surface method(one of many) using a 3d sketch. If you go this route when using boundary surface, right click and use the Selection Manager to pick parts of your 3d sketch. I show you the order in which i filled in. Each "panel" is a new boundary surface. I could have done the first 3 together but for this purpose i felt it was easier to show you every piece by itself.

[shift1313]

ps, look like your building an intake manifold:)

[JD Mather]

Matt - does it look like to you that he did a Delete Face on one of the faces?



TigWelder do you have a folder at the top of the browser named Surface Bodies?

[shift1313]

Matt - does it look like to you that he did a Delete Face on one of the faces?



TigWelder do you have a folder at the top of the browser named Surface Bodies?



either that or he is building the whole thing with surfaces.

[TigWelder]

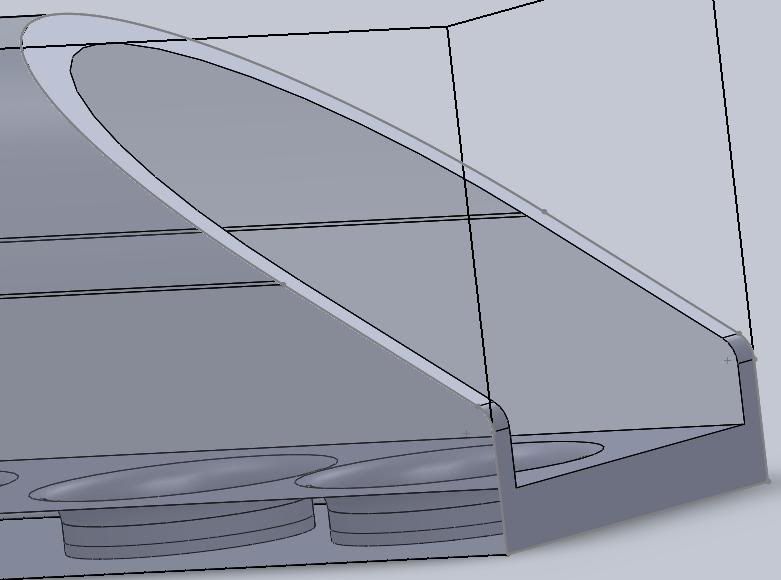

I tried to attach the part file, but this forum wouldn't allow that solidworks part file name extension. I changed the transparency of the plenum just to make it easier for me to visualize design changes, hence the "missing wall."



Thank you for all your help, I will try the suggested method (& report results), and yes it is an intake manifold shift1313 .

[shift1313]

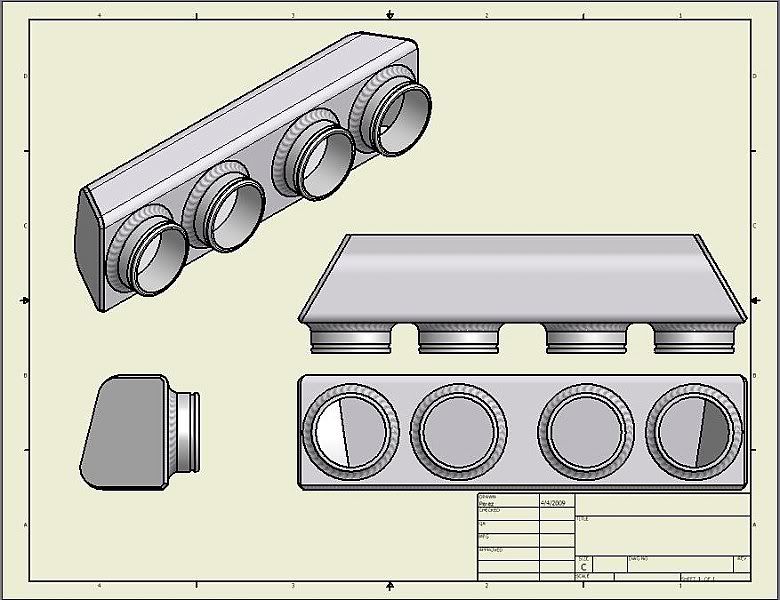

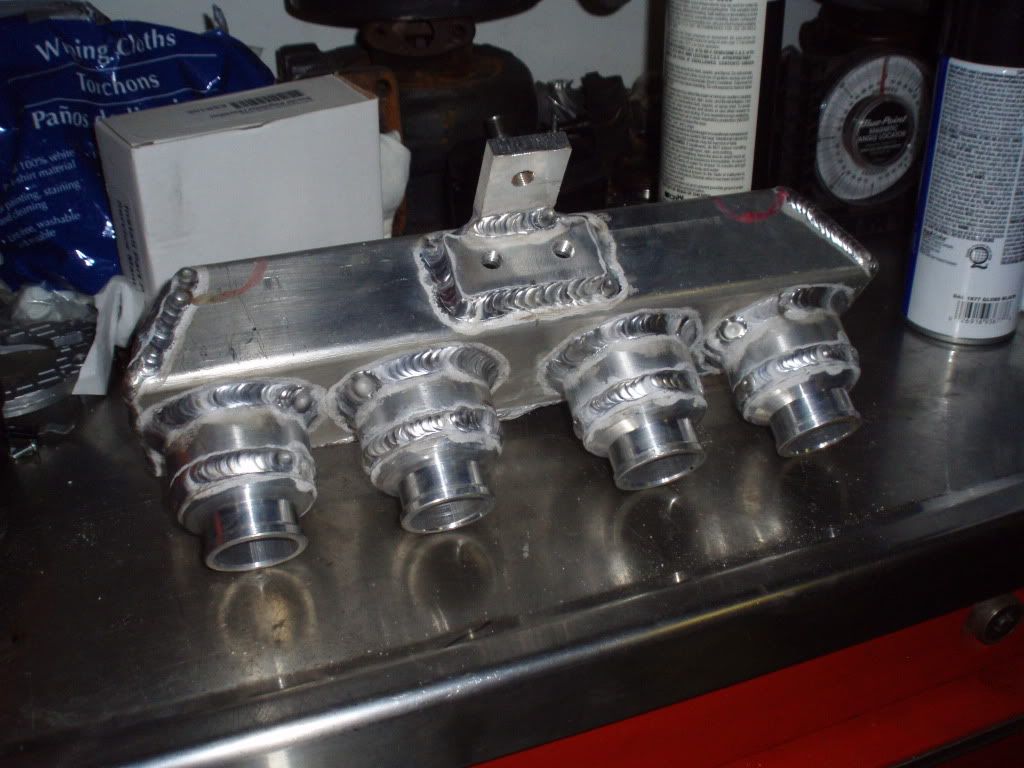

i just finished an intake for my turbo bike that has a similar shape. im not happy with the welds but it was done in less than ideal conditions:) To upload your files here just create a zip file. It will let you attach that.





this is what i started with.





[chetan0503]

hi chetan here i hv same problem in extrusion in 3d sketch

same problem with directions

[JD Mather]

hi chetan here i hv same problem in extrusion in 3d sketch

same problem with directions



Zip and attach the file here (roll op the feature tree first).

[kush_ciis]

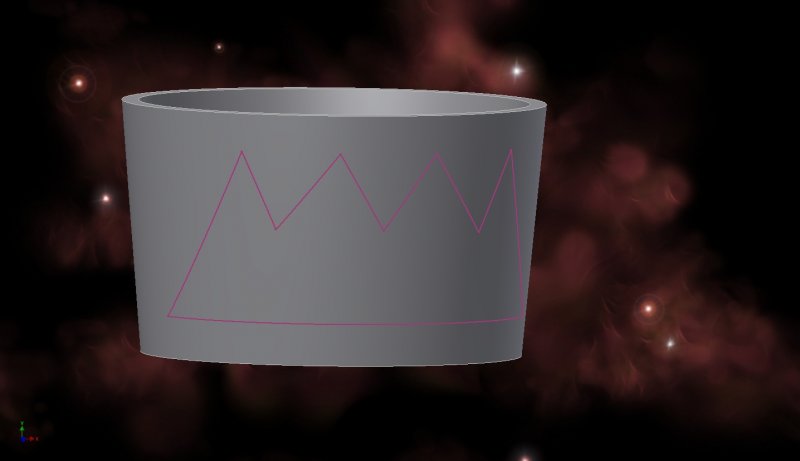

I was making a crown similar to Burger King's crown and got stuck midway. I do not have much experience with 3D sketches, please help!



PS- please see attached jpeg
