Lisp For Drawing Branch Duct

[viviancarvalho]

To all of the HVAC guys on Cadtutor

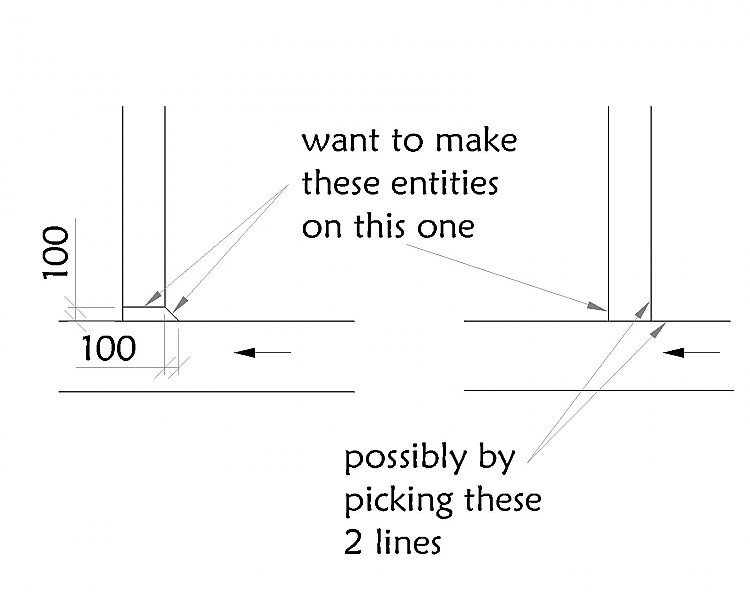

Does anyone has a lisp to draw a branch duct.





Thanks in advance

Vivian

[fixo]

Try this out

(defun C:BDUCT (/ ang1 ang2 ent1 ent2 ent3 ep1 ep3 ipt1 ipt2 ipt21
   mp1 mp3 obj1 obj2 obj3 pt1 pt2 pt3 sp1 sp3)
(setq ent1 (entsel "\nSelect first line >>")
     ent2 (entsel "\nSelect second line >>")
     ent3 (entsel "\nSelect third line >>")
     obj1 (vlax-ename->vla-object (car ent1))
     obj2 (vlax-ename->vla-object (car ent2))
     obj3 (vlax-ename->vla-object (car ent3))
     )
(setq sp1  (vlax-curve-getstartpoint obj1)
     ep1  (vlax-curve-getendpoint obj1)
     mp1  (mapcar (function (lambda (a b) (/ (+ a b) 2))) sp1 ep1)
     sp3  (vlax-curve-getstartpoint obj3)
     ep3  (vlax-curve-getendpoint obj3)
     mp3  (mapcar (function (lambda (a b) (/ (+ a b) 2))) sp3 ep3)
     ipt1 (vlax-invoke obj1 'intersectwith obj3 0)
     ipt2 (vlax-invoke obj2 'intersectwith obj3 0)
     ang1 (angle ipt1 mp1)
     ang2 (angle ipt2 ipt1)
     pt1  (polar ipt1 ang1 100)
     pt2  (polar ipt2 ang1 100)
     pt3  (polar ipt1 ang2 100)
     )
    (command "_.break" ent1 "f" "_non" pt1 "_non" ipt1)
    (command "line" "_non" pt1 "_non" pt2 "")
    (command "line" "_non" pt1 "_non" pt3 "")
(princ)
)



~'J'~

[viviancarvalho]

Thanks Fixo

It works very well.

[fixo]

Glad if that helps

Cheers



~'J'~

[stevesfr]

Thanks Fixo

It works very well.





doesn't work for me...

using vanilla acad2008

what are your settings, units, scale, etc.

the "fillet" goes way off and too large

thx

s

[viviancarvalho]

doesn't work for me...

using vanilla acad2008

what are your settings, units, scale, etc.

the "fillet" goes way off and too large

thx

s



Steve

Sorry for the late reply.

I m using AutoCad 2010. with metric (mm) units

It works very well for me but does not works with my colleague who is using 2008.

Are you also into HVAC ??

[stevesfr]

Steve

Sorry for the late reply.

I m using AutoCad 2010. with metric (mm) units

It works very well for me but does not works with my colleague who is using 2008.

Are you also into HVAC ??



I'm not into HVAC, I thought if I could understand and get it to work, I'd pass it onto some of my lisp challenged HVAC colleagues a few desks over. I'm using ac2008, I guess that is why it "tilts".

regards, S

[Lee Mac]

Perhaps this might be of help?

[Lee Mac]

Or this? Or this?

[fixo]

I'm not into HVAC, I thought if I could understand and get it to work, I'd pass it onto some of my lisp challenged HVAC colleagues a few desks over. I'm using ac2008, I guess that is why it "tilts".

regards, S



I tested it on A2008 (eng) with metric only -

it's working good on my machine, FYI



~'J'~

[stevesfr]

I tested it on A2008 (eng) with metric only -

it's working good on my machine, FYI



~'J'~



I agree with the above, but when using inch or feet units on the drawing, the "fillet" is HUGE !! and way out of proportion !

S

[viviancarvalho]

Has anyone come across a lisp to draw a VCD (Volume Control Damper)

[Lee Mac]

Perhaps check some of my earlier links - or this?

[viviancarvalho]

thanks Lee

[himal]

Grate Work nice

[akgbmb]

thanks MR Fixo

it is very usefull

[ashokdangol07]

doesnt work for me... there is no error still... what to do?
