isometric align dimensioning

[bdr2k5]

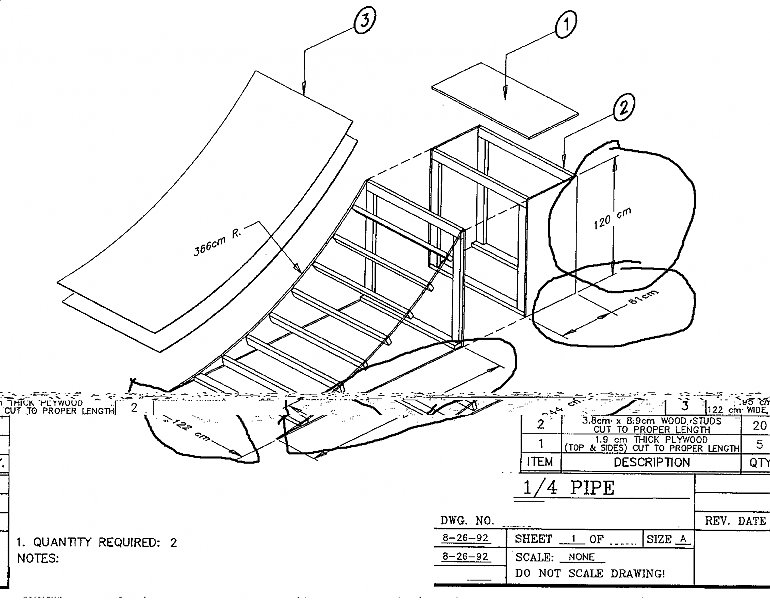

hey guys how do i dimension something like in this pic. i cant get it to align

also, how can i make an object look like in the righ part of the pic without having to trim?



thanks

[Tankman]

Try Chapter 40, nice ramp...............so far!



http://www.andrew.cmu.edu/course/48-568/2DVideosWEB_files/frame.htm



Where are you posting from?

[alanjt]

As a preface, I must admit that I did not read the linked chapter.

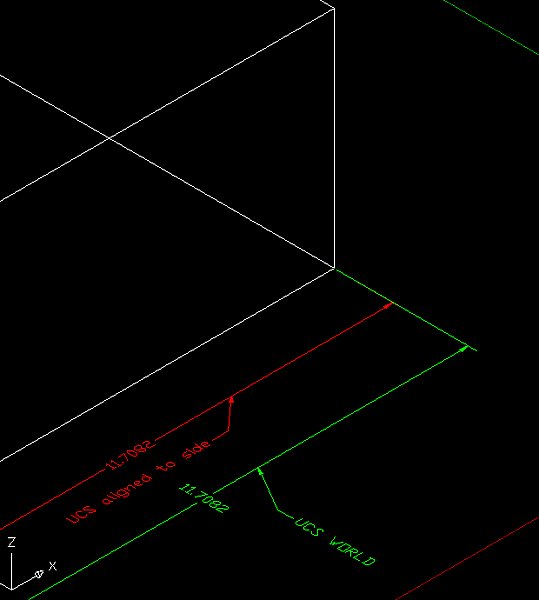

If you execute the UCS command, use the OBject selection and choose the line/side you wish to dimension, it will set the UCS to that view. From there you can easily label.



Command: ucs

Current ucs name:  *WORLD*
Specify origin of UCS or [Face/NAmed/OBject/Previous/View/World/X/Y/Z/ZAxis]
<World>: ob

Select object to align UCS:



[bdr2k5]

great, i got the dimension right!

thanks a bunch, that was helpful.

how about the 2nd pic? how do i do that? also, this might sound silly.. but i do i plot in black and white only?



ps: I'm posting from Atlanta.

[alanjt]

great, i got the dimension right!

thanks a bunch, that was helpful.

how about the 2nd pic? how do i do that? also, this might sound silly.. but i do i plot in black and white only?



ps: I'm posting from Atlanta.



How do you do what?



Plot to monochrome or setup a CTB file that's all black/white.

[bdr2k5]

How do you do what?



Plot to monochrome or setup a CTB file that's all black/white.

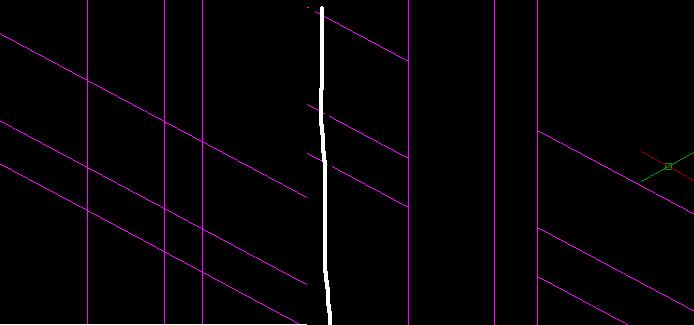

do you see in the 2nd picture in the right how the lines are on top of the other? and not overlapping. I want to achieve that without having to trim. is it posible?

[alanjt]

do you see in the 2nd picture in the right how the lines are on top of the other? and not overlapping. I want to achieve that without having to trim. is it posible?

Maybe a WipeOut. Don't quote me on it, but I would say not without trimming.

[bdr2k5]

I found that is very time comsuming trimming everything, plus if i was to turn off some layers, other parts of my drawing appear incomplete. There's gotta be a way around it! help!



I think we can do something with region+subtract and other commands, but i cant seen to make it work

thanks for everything guys.

[MikeScott]

is it in 3d, or isometric?



If it's isometric, do the trim command using "F" (fence).. (ie- select boundaries, and then when it says to select lines to trim, you type "F")

This permits you to draw line segments that will select trim points like a crossing window.



If it's 3d, try the Hide command.
