Hannah-Marie Posted April 19, 2010 Posted April 19, 2010 Hi there, Does anyone have a linestyle that looks like IBR Sheeting? Quote
ReMark Posted April 19, 2010 Posted April 19, 2010 Hannah-Marie: Might I suggest that you create it yourself using the Make Shape and Make Linetype commands found in Express Tools? First create the profile you want. Next, use the Make Shape command to create the shape. Save this as IBR.shp. Then use the Make Linetype command and select the shape you just created. Finally, assign the linetype to a specific layer called Sheeting and start drawing your lines. They will appear with the profile you have used. The other option is to join AUGI since, as a forum member, you can search the forums for a sheeting linetype (Yes, there is one but it is contained within a zip file called Hope2.zip). Download the file, unzip it and use it's contents. Quote
Hannah-Marie Posted April 20, 2010 Author Posted April 20, 2010 Thank you so much, I have tried to create my own, but were not successful, and lucky already being a member of AUGI could download the file in 2 ticks. Thanks again!!! Regards Hannah-Marie Quote
ReMark Posted April 20, 2010 Posted April 20, 2010 Please retry the first option even if it is only as an exercise. I was able to do it last night. It might hold some promise in the future for a linetype no one else has created thus far. Glad to hear that 1) you are an AUGI member (same here) and 2) you were able to find, download and successfully use the linetype. Thank you for the update too. Quote

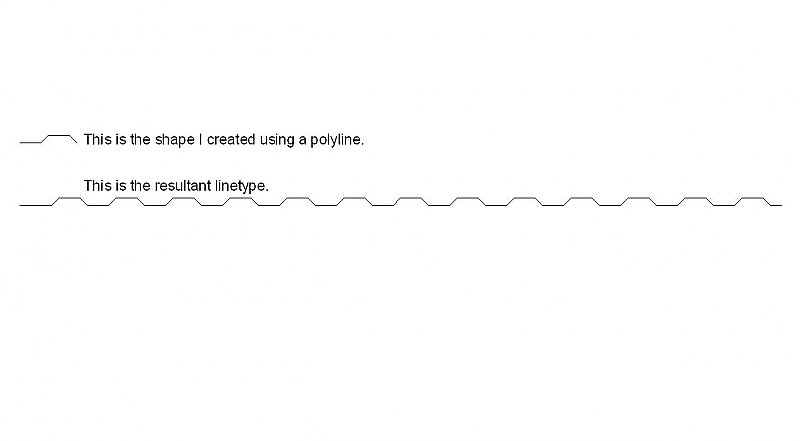

ReMark Posted April 20, 2010 Posted April 20, 2010 To prove it can be done. First, the image: Second, a copy of the input from my AutoCAD text window: Command: _pline Specify start point: Current line-width is 0.0000 Specify next point or [Arc/Halfwidth/Length/Undo/Width]: 2 Specify next point or [Arc/Close/Halfwidth/Length/Undo/Width]: @1.0 Specify next point or [Arc/Close/Halfwidth/Length/Undo/Width]: 2 Specify next point or [Arc/Close/Halfwidth/Length/Undo/Width]: @1.0 Specify next point or [Arc/Close/Halfwidth/Length/Undo/Width]: cancel Command: mkshape (From Express Tools) Initializing... Enter the name of the shape: IBR2 Enter resolution : Specify insertion base point: Select objects: 1 found Select objects: Determining geometry extents...Done. Building coord lists...Done. Formating coords...-Done. Writing new shape...Done. Compiling shape/font description file Compilation successful. Output file C:\Documents and Settings\ReMark\Desktop\CADTutor\IBR2.shx contains 88 bytes. Shape "IBR2" created. Use the SHAPE command to place shapes in your drawing. Command: SHAPE (An AutoCAD command) Enter shape name or [?]: IBR2 Specify insertion point: Specify height : Specify rotation angle : Command: mkltype (From Express Tools) Initializing... Enter linetype name: IBR_2 Enter linetype description: Metal sheeting Specify starting point for line definition: Specify ending point for line definition: Select objects: 1 found Select objects: Linetype "IBR_2" created and loaded. Command: _line Specify first point: Specify next point or [undo]: Specify next point or [undo]: Quote
CAD_monkey_MTC Posted May 18, 2012 Posted May 18, 2012 Hi, (first time commenter!) Is it possible to turn the above pattern into a 3d wall? I can extrude it etc but then I cant insert an opening. Thanks Quote
ReMark Posted May 18, 2012 Posted May 18, 2012 What do you mean you can't insert an opening? Can't you use the SUBTRACT or PRESSPULL commands to either subtract a second object from the wall to create an opening or Press/Pull a shape (like a rectangle) to do so? Quote
CAD_monkey_MTC Posted May 18, 2012 Posted May 18, 2012 Thanks for the responce. Basically I have used a cladding profile to extrude and make a single cladding sheet, but i now want to use it as an external wall. With a brickwork wall for example you would just select it and use the turquiose arrow to stretch it to the required length/height but i dont know how to change the properties to enable me to do this, I can ony change the length as an extruded -then-> converted to solid object. Am i making any sense at all? I fear not. Quote
ReMark Posted May 18, 2012 Posted May 18, 2012 You could be making perfect sense if I were using Arch 2011 but I'm not. I could extrude it and create an opening in it with plain AutoCAD. Quote

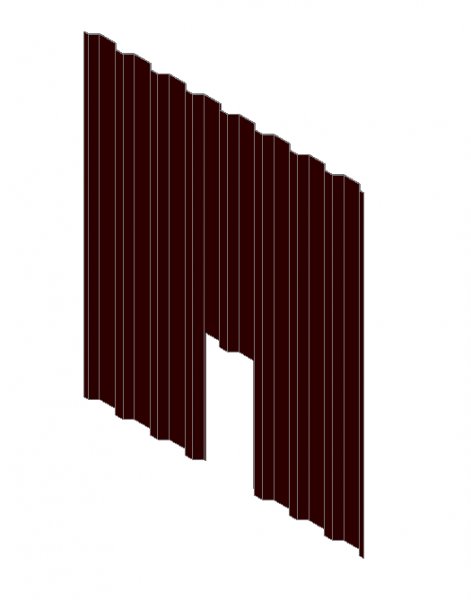

ReMark Posted May 18, 2012 Posted May 18, 2012 Example of 3D sheathing with an opening in through it. Done using AutoCAD 2010. Quote
BIGAL Posted May 21, 2012 Posted May 21, 2012 Remark a brilliant job, for Hanna-Marie just a comment why not convert the pline code Remark wrote above and put it in a lisp then it is true dimensionly. It can be done I know I have around 8 different patterns nice thing is its always true size and Autocad doesn't do linetype tricks with it can be trimmed etc as well. More than happy to help but code is copyrighted so can not post. Just take start and end point work how many repeats are needed and then draw one pline. Quote
