Perpendicular on Given Polyline with given segment and Coordinates

[samcoozy]

Hi,



my previous "Perpendicular on Given Polyline with given segment " is solved.

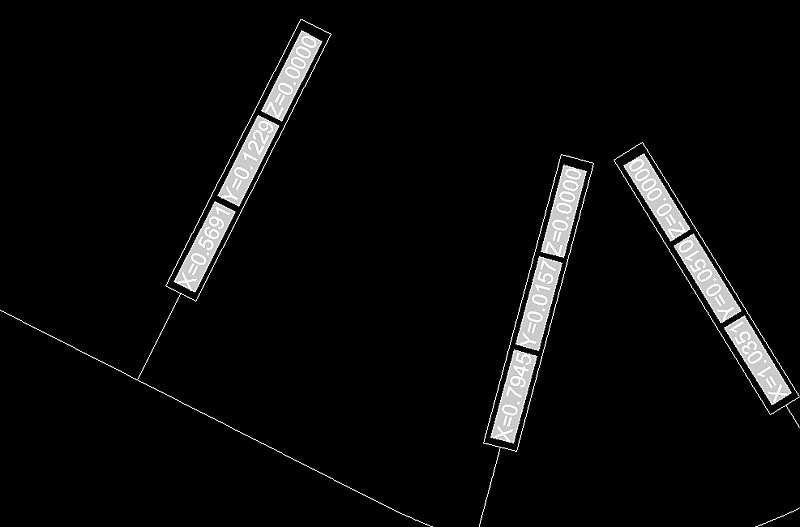

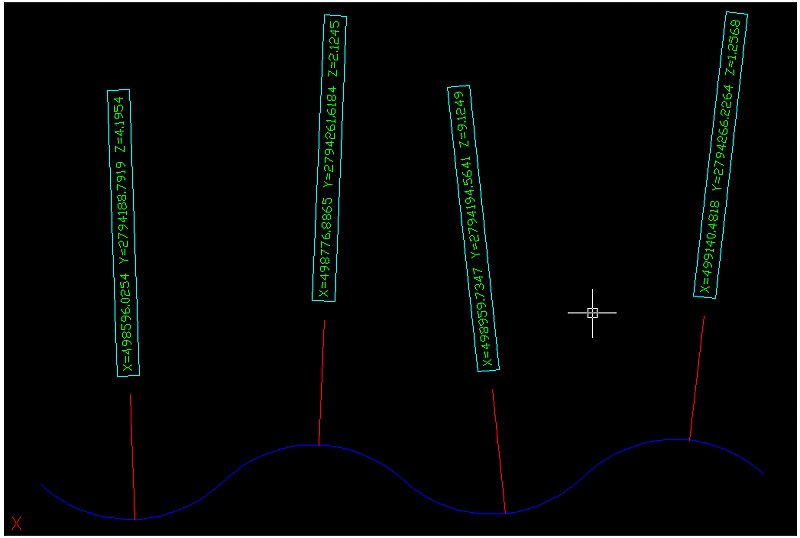

but I want to trying to show Coordinates above these lines also (Picture as Attached).



Lines are same Length, Text covered by a box(rectangle) and Line,text & box are different colors.



if this can solved by Excel, may be it's much better.

have any solution for this.



Many Thanks and Regards,

—Sam

[alanjt]

You could easily accomplish this by making an attributed block with fields that references a node which you have placed on the PLine. You could even use the Measure command to array the block along the PLine.

[alanjt]

This is a quick and rough example, but this should give you something to modify...



new block.dwg

[samcoozy]

please explain me detail.



Regards,

—Sam

[alanjt]

please explain me detail.



Regards,

—Sam

Look at the example.

[samcoozy]

Not clear,

please tell me process.



Regards,

—Sam

[samcoozy]

I didn't know how make required attributed block (how to set a field that references a node which you have placed on the PLine).

Which field I set for node and how to set in AutoCAD 2008



what is the processor for this.



Regards,

—Sam

[alanjt]

I accidentally set the rotation to Middle Center (wasn't going to start the recording over), but you get the idea.



[samcoozy]

Many Thanks alanjt



but I have 1 more question..

o:)how you make this Example (AttBlock.gif).

can you tell me please.



Thanks and Regards,

—Sam

[alanjt]

You're welcome.



I use Camtasia.

[samcoozy]

today, I have one more question..



how can make boundary around the text which resize as text size (Height & Width) automatically.

Can it's possible.



Regards

—Sam

[samcoozy]

today, I have one more question..



how can make boundary around the text which resize as text size (Height & Width) automatically.



and if I want place that block different distance like straight is another & curve another then how to do this.



Example: I have an alignment, contains sum curves. I want to place this(coordinate block mention in previous threads) object, if straight than 10meter and if curve than 2meter. how can I do ?



Can it's possible.



Regards

—Sam

[alanjt]

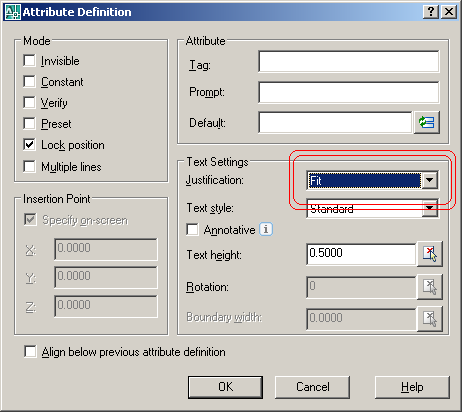

You would have to use a Dynamic block with stretch or attributes with textfit option.

[samcoozy]

I am using AutoCAD 2008. In block editor I use BLOCK ACTION command.

but there is no any parameter as u tell above.



please explain ur example in detail.



Regards,

—Sam

[alanjt]

Come on man, dig around.:wink:

[samcoozy]

Thanks for this coordination but in this tip we resize our text. means, if text Value is short (b'cos I ignore trailing Zero from coordinate) than the block showing more wide text and if value is long than block text wideness is reduced.



but I need fixed height & Width TEXT.

in Dimension Style there is a Check Box Option, say "Draw Frame Around Text" ( under TEXT APPEARANCE IN TEXT TAB)



how this function works



if possible can u have any idea for lisp code for Attributed block Dialog Box with merging "Draw Frame Around Text" Option.





Thanks & Regards

—Sam
