How to draw a eccentric reducer in 3d including both O.D and I.D of reducer.

[srinu_vasu38]

Hi,

I had worked with 2d for 3 years and recently i had started working 3d for last 6 months. i am unable to draw a eccentric reducer in 3D. Please help me and explain in brief how to draw this.

thanks

[fuccaro]

Welcome in the forum, Srinu_vasu38!



Click the links under "Similar threads" here down, on the bottom of the page.

[ReMark]

How detailed does the reducer have to be or can it be just an approximation?

[ReMark]

A simple eccentric reducer in 3D. The commands used were circle, offset, loft and subtract.

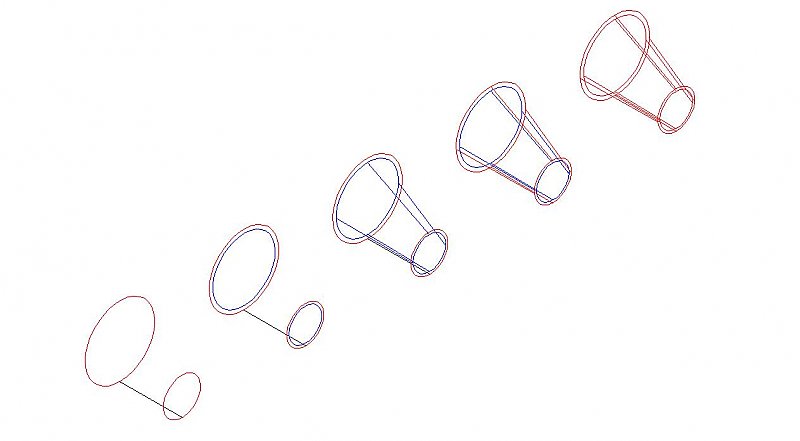

Pictured below is a 4x2 eccentric reducer. The color red = O.D. The color blue = I.D.



Read from left to right.



First set of objects depicts both O.D.'s.

Second set of objects we offset for wall thickness to get the I.D.'s. Third set of objects we loft the two I.D.'s.

Fourth set of objects we loft the O.D.'s.

Fifth set of objects we have subtracted the I.D. from the O.D. Done.



Visual style = 2D wireframe.



[ReMark]

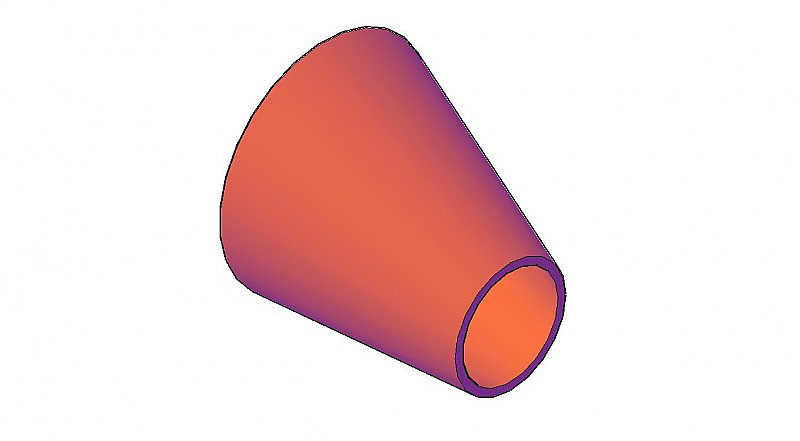

Finished eccentric reducer shown using Conceptual visual style.





Do you understand the concept now?
