how can I export the dimensions out into a file?

[goofygirl72]

I am trying to find away to export all the dimension out of a drawing to files so I can show a total of leghts. Is there away I can do this?

[JohnM]

The answer is yes, but you need to be a lot more detailed about what you are attempting to do.

Only selected dims?

All dims?

Dims on a certain layer?

What type of file to export to?

Do you know how to code in lisp?

Do you want someone to write this for you?

[fuccaro]

Welcome in the forum Gufygirl72!

Click these links, maybe you can get some help from...

http://www.cadtutor.net/forum/showthread.php?t=23285

http://www.cadtutor.net/forum/showthread.php?t=767

[goofygirl72]

Thank you for your help

[goofygirl72]

Johnm

I need dims on a certain layer.

export to cvs or excel

have worked with lisp but not that good.

thank you for your reply

[goofygirl72]

fuccaro

I tried your dex lisp and I get ; error: bad argument type: streamp nil

I am not the good at lisp to know what causing this.

[JohnM]

Now is a good time to learn more. Crank up your lisp editor and dive in.

I will not write it for you but will help.

Here is an outline of some of the functions that you will need

(ssget "_X" '((0 . "DIMENSION")(8 . "the layer you need")(410 . "Model")))with a filter for dimensions and the layer

(sslength)

(ssname)

(while)

(strcat)

(open)

(write-line)

(close)

basically you need to:

get only dimensions on a particular layer using ssget

get the number of items in the ssget selection set using sslength

set up a while loop to go through the items and parse out the dimension text

create a list of the dim text and add a (,) between them to create a csv style

when the loop is finished open a file to write the list to

write the list to the file

close the file.

If you decide to do this your self this would be a good lips to learn from

[Lee Mac]

Quick one,



(defun c:DimExport (/ i ss file e)

 (if (and (setq i -1 ss (ssget '((0 . "DIMENSION"))))
          (setq file (getfiled "Output" "" "txt;csv" 1)))
   (progn
     (setq file (open file "w"))
     (while (setq e (ssname ss (setq i (1+ i))))
       (write-line (rtos (cdr (assoc 42 (entget e)))) file))
     (close file)))

 (princ))

Bear in mind Angular Dims will export in Radians



Sincere Apologies John - I didn't realise you had posted.

[JohnM]

No problem lee mac I just like to see more people learn to fish for themselves. I also have a hard time passing up a quicky

[fuccaro]

fuccaro

I tried your dex lisp and I get ; error: bad argument type: streamp nil

I am not the good at lisp to know what causing this.

After years I tried it again and it worked in AutoCAD 2006. You entered in the program text the path to the file, didn't you?

Nevermind, I see in the mean time you get help.

[mdbdesign]

Perfect, how about preserve dimension style i.e.: architectural (1'-7"), fraction (7 1/4) in exported file?

[Lee Mac]

Give this a try:



(defun c:DimExport (/ i ss file e d)
 ;; Lee Mac  ~  08.04.10

 (if (and (setq i -1 ss (ssget '((0 . "DIMENSION"))))
          (setq file (getfiled "Output" "" "txt;csv" 1)))
   (progn
     (setq file (open file "w"))
     (while (setq e (ssname ss (setq i (1+ i))))
       (setq d (cdr (assoc 42 (entget e))))

       (write-line
         (if (or (= 2 (logand 2 (cdr (assoc 70 (entget e)))))
                 (= 5 (logand 5 (cdr (assoc 70 (entget e))))))
           (angtos d (getvar 'DIMAUNIT) (if (minusp (getvar 'DIMADEC))
                                          (getvar 'DIMDEC)
                                          (getvar 'DIMADEC)))

           (rtos d (getvar 'DIMLUNIT) (getvar 'DIMDEC))) file))

     (close file)))

 (princ))

[mdbdesign]

No more question.

Working perfect and no dialog box req'd :-)

Thank you.

[goofygirl72]

Thank you all so much this will help and will save so much time listing over 5000 dimensions.



Thank you again

Goofygirl72

[Lee Mac]

You're welcome

[icalara1921]

On 4/8/2010 at 7:02 AM, Lee Mac said:

Give this a try:





(defun c:DimExport (/ i ss file e d)
 ;; Lee Mac  ~  08.04.10

 (if (and (setq i -1 ss (ssget '((0 . "DIMENSION"))))
          (setq file (getfiled "Output" "" "txt;csv" 1)))
   (progn
     (setq file (open file "w"))
     (while (setq e (ssname ss (setq i (1+ i))))
       (setq d (cdr (assoc 42 (entget e))))

       (write-line
         (if (or (= 2 (logand 2 (cdr (assoc 70 (entget e)))))
                 (= 5 (logand 5 (cdr (assoc 70 (entget e))))))
           (angtos d (getvar 'DIMAUNIT) (if (minusp (getvar 'DIMADEC))
                                          (getvar 'DIMDEC)
                                          (getvar 'DIMADEC)))

           (rtos d (getvar 'DIMLUNIT) (getvar 'DIMDEC))) file))

     (close file)))

 (princ))





Hi Lee Mac,
I was looking for a lisp like this. On my job I have to set different suffix/prefix or codes by overriding or addin text into the dimensions. So, I have a couple

of questions:

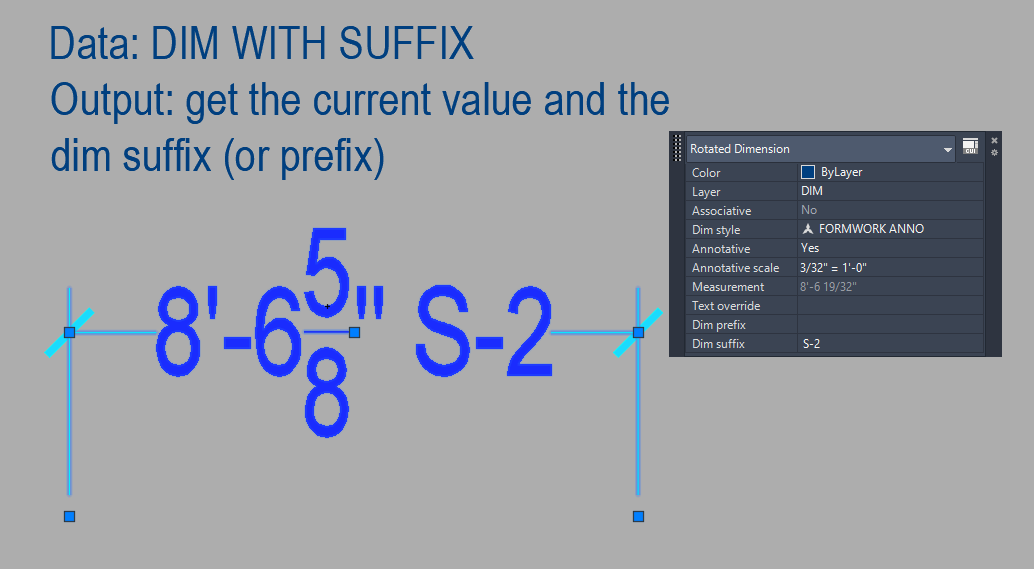

1. Is tehere a way to also obtain the prefix and sufix of the selected dimensions?

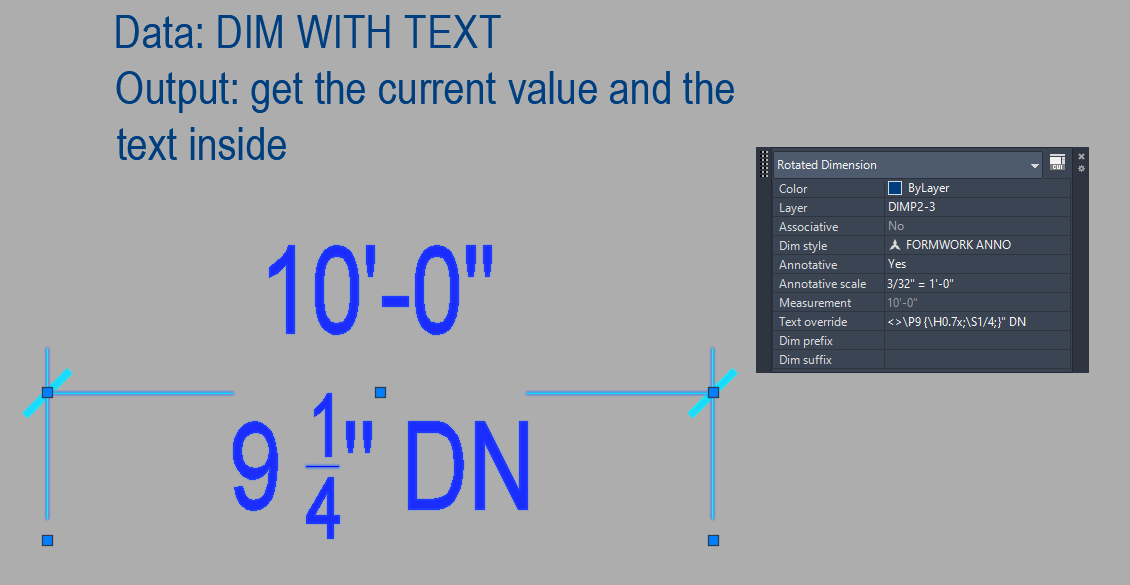

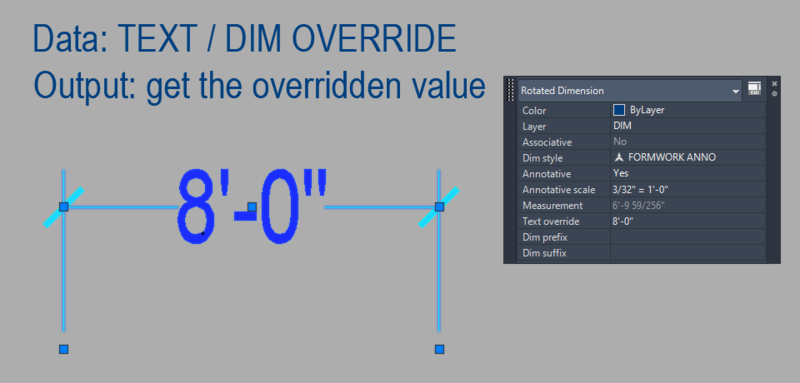

2. Is it possible to get the overrided dimensions/text?

thanks in advance!




[mhupp]

Setup a template drawing and and save dimension styles. You can use his steal function to copy the style into a new drawing with this.



(defun C:DStyle ()
  (Steal "C:\\path\\to\\drawing\\that\\has\\dims.dwg" '(( "Dimension Styles" ("Dim Name"))))
  (princ)
)



--edit

textoverride isn't part of the dimstyles and would need to be inputted for each dimension. I would also suggest to use a prefix to show that its an overridden dimension.



* or [ORD]



8'0" - no idea text is overridden

*8-'0"

[ORD] 8-'0"

* 8-'0" *





Edited October 27, 2022 by mhupp

[Dadgad]

Might SELECTSIMILAR be helpful in searching for overridden text?

If I were doing it I would use an ActionMacro, as I am not lisp literate.

[BIGAL]

Try this and look at code ( 1. xxx)   (entget (car (entsel "\nPick dim")))



You will see the <> in the dxf group (1 . this means use the value based on the dim points, if you fully overide the <> will not be there. You can see that in your dim string for the 3rd example. So pre<> is a prefix <>suf is a suffix. Yes could do a look into the dim text string and work out what type it is.



So when you say can you GET what you want, what to do with result make a file, make a table etc  ?



Edited October 28, 2022 by BIGAL
