Modifying Dim Style

MarkCalvert

By MarkCalvert
in AutoCAD General

 Share

Recommended Posts

MarkCalvert Enthusiast

MarkCalvert

Posted
Posted

Hello all,

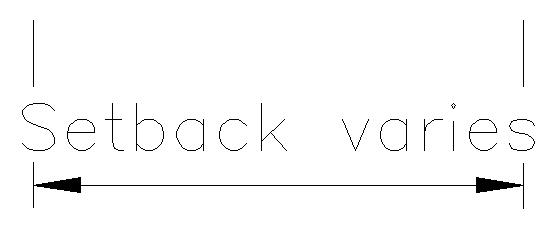

I am looking to modify my dim style so that I may get something that looks like the attached picture.



Is it possible to do this? So that there is a gap between the dim lines.



Many thanks,

Mark

Dim needs.JPG

Fire_col Rising Star

Fire_col

Posted
Posted

Yeah set the fill colour to background onthe text tab in dimstyles
