TYGA Posted February 20, 2010 Posted February 20, 2010 Hello everyone, I'm having a problem with showing the both x,y coordinates for a certain point , does anyone know how can i do that:cry: , and by the way I'm using Auto-CAD 2005, because whenever i try to show it , it either show the X - coordinate:wink: or the y - coordinate:wink: alone but i need to show both of them:( for example this point (4.2 , 2.2). thank you guy's for the wonderful forum , and please accept me as a new friend. Quote
TYGA Posted February 20, 2010 Author Posted February 20, 2010 please everyone , any kind of help is appreciated . Quote
eldon Posted February 20, 2010 Posted February 20, 2010 Patience, new friend! For you the week is just beginning, for some of us it is the start of the weekend. As you have found, AutoCAD will only write one coordinate at a time. However, there is a nice Lisp written by ASMI here. Look at post no 6. Quote
eldon Posted February 20, 2010 Posted February 20, 2010 Having just done a bit of a search, you could be using a Field in conjunction with a block Insertion Point. Quote
KevUK Posted February 20, 2010 Posted February 20, 2010 Hello everyone, I'm having a problem with showing the both x,y coordinates for a certain point , does anyone know how can i do that:cry: , and by the way I'm using Auto-CAD 2005, because whenever i try to show it , it either show the X - coordinate:wink: or the y - coordinate:wink: alone but i need to show both of them:( for example this point (4.2 , 2.2).thank you guy's for the wonderful forum , and please accept me as a new friend. Tools > Inquiry > Point ID Quote
TYGA Posted February 21, 2010 Author Posted February 21, 2010 thanks A lot Guy's that was really helpful. Quote
TYGA Posted February 21, 2010 Author Posted February 21, 2010 i'm looking for an easy way to put the coordinates pf the point on the draw ( not the text one:glare:) like those > Quote
TYGA Posted February 21, 2010 Author Posted February 21, 2010 eldon , your way is nice but i think it's too complicated for a beginner. I know this way ( Dimensions>Ordinate>RightClick on the Point>.X or .Y ) but as you can see it will give one coordinate for to the selected point , Either X Either Y ( and that doesn't work with me ) , So Any Ideas. Quote
eldon Posted February 21, 2010 Posted February 21, 2010 All beginners have to start somewhere, and having an object in sight is very motivating. Either you have to master using Lisps or you have to master using Fields. I usually use r 2002 which does not have Fields, but managed to generate the picture above quite quickly using 2005. Go for it! Quote
lpseifert Posted February 21, 2010 Posted February 21, 2010 As eldon suggested, make a block with Fields. I'm attaching an example I created a while ago to label Northings, Eastings. I saved it in 2004 format, hope it works for you. ACAD-Drawing1.dwg Quote

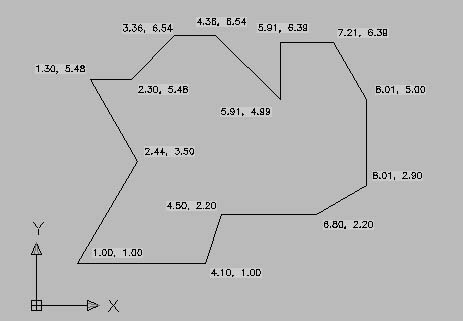

eldon Posted February 21, 2010 Posted February 21, 2010 I made a block which was a point, and then inserted a field of its position (x,y). Then it can be inserted or copied to each end point in your drawing. Then reformat the point to be a dot, and you cannot see it any more! The text can be dragged around with the grip to be where you want it. If you want to go further, then you can explode all the fields, then you will be left with text only. Quote
paulmcz Posted February 21, 2010 Posted February 21, 2010 Either you have to master using Lisps ..... A leader lisp that does what you want -> (defun c:31 (/ odt odg oecho oerr p1 p2 a1 a2 a) (setq odt (getvar "dimtad") odg (getvar "dimgap") oecho (getvar "cmdecho") ) (setq oerr *error*) (defun *error* (msg) (princ "\n ERROR!") (setvar "cmdecho" oecho) (setvar "dimtad" odt) (setvar "dimgap" odg) (setq *error* oerr) (command) (princ) ) (setvar "cmdecho" 0) (setvar "dimtad" 0) (setvar "dimgap" -0.09) (while (setq p1 (getpoint "\n Point to identify: ")) (setq p2 (getpoint p1 "\n Place annotation: ") a1 (rtos (nth 0 p1) 2 1) a2 (rtos (nth 1 p1) 2 1) a3 (rtos (nth 2 p1) 2 1) ;;a (strcat a1 ", " a2 ", z=" a3) a (strcat a1 ", " a2) ;;a (strcat "x=" a1 "\\Py=" a2) ;;a (strcat "x=" a1 "\\Py=" a2 "\\Pz=" a3) ;;a (strcat "x = " a1 ", y = " a2) ) ;(if (/= a3 "0.000")(setq a (strcat a1 ", " a2 ", z=" a3))) (command "leader" p1 p2 "" a "" ^c) ) (setvar "cmdecho" oecho) (setvar "dimtad" odt) (setvar "dimgap" odg) (princ) ) ;_ end of defun (prompt "\n To start ID Leader, type > 31 <: ") Quote
edwinprakoso Posted February 22, 2010 Posted February 22, 2010 I wrote a tutorial about labeling coordinate with field. I hope it helps. Quote
Billy Posted February 22, 2010 Posted February 22, 2010 I was looking for routine like this paulmcz, but I'm not skilled in Lisp. How to modify this routine so it will instead drawing an arrow and line around number just display "(x, y)" at 2nd specified point? Where to put Lisp file so it will be available for all drawings and I don't have to always load it, for each drawing? How you can load Lisp routine in AutoCAD 2010 over ribbon? I can do that only over hidden classic menu (Tools | AutoLISP | Load Application...). Regards, Billy Quote
paulmcz Posted February 22, 2010 Posted February 22, 2010 I was looking for routine like this paulmcz, but I'm not skilled in Lisp. How to modify this routine so it will instead drawing an arrow and line around number just display "(x, y)" at 2nd specified point? Where to put Lisp file so it will be available for all drawings and I don't have to always load it, for each drawing? How you can load Lisp routine in AutoCAD 2010 over ribbon? I can do that only over hidden classic menu (Tools | AutoLISP | Load Application...). Regards, Billy 1. Here is the routine without the leader 2. Save both attached files into AutoCAD's Support folder 3. Don't know anything about the ribbon Type > 32 If there already is "acaddoc.lsp" file in your Support folder, don't overwrite. Instead, copy the text from this one and paste it into your existing "acaddoc.lsp file. Go to Tools>Autolisp>Visual Lisp Editor > help, if you need to learn about the Autolisp. acaddoc.lsp Point-ID-32.lsp Quote
Billy Posted February 22, 2010 Posted February 22, 2010 Paul, Thank you very much. You help me a lot. Quote
TYGA Posted February 22, 2010 Author Posted February 22, 2010 well thank you all who participated in solving this issue , i guess know this point is clear as the water surface in my mined , again ....... Thank You. Quote

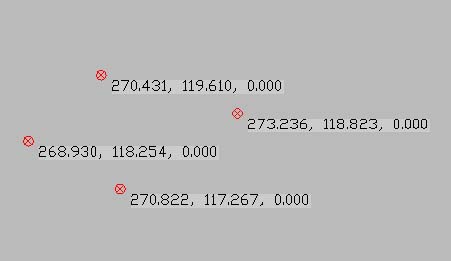

JETHRO75 Posted January 18, 2013 Posted January 18, 2013 Great lisp routine, but is there a way to change the text to go to 3 place decimals. It rounds off and it comes up (x=3.3,y=0.0) i need (x=3.250,y=0.000) thanks. Quote
paulmcz Posted January 18, 2013 Posted January 18, 2013 Here you go, 3 decimals. Point-ID-32.lsp Quote
kanishka Posted August 14, 2014 Posted August 14, 2014 XY.lsp Download attached lisp Programme and save it -> Autocad > tools > load Application > Brows Lisp file (XY) > Load > ok type "XY" in command line and enter then go to point and click on point and then side Quote
