Crazy J Posted February 13, 2010 Posted February 13, 2010 Just wondernig the purpose or intent of these layers? Do they have any additional features when compared to any other layer that I might create on my own? Is there some standard info that others may expect to find on these layers when I begin sharing my drawings with customers or suppliers? Quote
ReMark Posted February 13, 2010 Posted February 13, 2010 As soon as you add one dimension to a drawing AutoCAD will create the Defpoints layer. Anything on that layer will not plot. Layer "0" is just a default layer. The caveat has always been to not put anything on layer 0. It is also said that this is the layer one should create blocks on so that upon insertion into other layers the blocks will assume the properties of the layer (color, linetype, etc.). Of course most newbies draw everything on layer 0 and then compound the error by overriding settings for color and linetype thus creating headaches for others who know better. When I receive a drawing like this from an outside source I know it is going to be a long, long day and I break out the large bottle of aspirin. Quote
David Bethel Posted February 13, 2010 Posted February 13, 2010 I wrote this 1 a while ago. Maybe it will help some. -David http://www.cadtutor.net/forum/showthread.php?t=2824&highlight=Layers Quote
paulmcz Posted February 13, 2010 Posted February 13, 2010 Quote paulmcz, you do not have permission to access this page. This could be due to one of several reasons: 1. Your user account may not have sufficient privileges to access this page. Are you trying to edit someone else's post, access administrative features or some other privileged system? 2. If you are trying to post, the administrator may have disabled your account, or it may be awaiting activation. Why am I getting this message when I click on the link David posted? Quote
dbroada Posted February 13, 2010 Posted February 13, 2010 paulmcz said: Why am I getting this message when I click on the link David posted?I don't have that problem. Is this any better? http://www.cadtutor.net/forum/showthread.php?t=2824 Quote
paulmcz Posted February 13, 2010 Posted February 13, 2010 No, I am getting exactly the same message from your link. Quote
KevUK Posted February 13, 2010 Posted February 13, 2010 dbroada said: I don't have that problem. Is this any better? http://www.cadtutor.net/forum/showthread.php?t=2824 I seem to get the same message as well. Quote
Coosbaylumber Posted February 13, 2010 Posted February 13, 2010 ReMark said: As soon as you add one dimension to a drawing AutoCAD will create the Defpoints layer. Anything on that layer will not plot. Layer "0" is just a default layer. The caveat has always been to not put anything on layer 0. It is also said that this is the layer one should create blocks on so that upon insertion into other layers the blocks will assume the properties of the layer (color, linetype, etc.). Of course most newbies draw everything on layer 0 and then compound the error by overriding settings for color and linetype thus creating headaches for others who know better. When I receive a drawing like this from an outside source I know it is going to be a long, long day and I break out the large bottle of aspirin. The noted Information by Mark seems to be EXACTLY the same as at another Acad Web-site. I go near no place with the linked forum note too. Must be something hay-wire. I think Layer zero is related to the BASE coordinates for the drawing, and XREF'd ones, and the same drawing being used as an XREF in another drawing, for near everything then registers and aligns to it. Is very difficult to get rid of any inforation on defpoints layer, and then PURGE it out. Wm. Quote
David Bethel Posted February 13, 2010 Posted February 13, 2010 It probably has something to do with it is in an archive section of the forum. General concepts and good drawing practice - Layers *** Concept: What is a CAD Layer? The best analogy I know is to think of an overhead projector with transparent overlays. Each overlay represents a layer that can added or removed at will. By stacking one on top of each other or layered if you will, you can show or hide the layers as needed. CAD programs give you the ability to do this in a virtual world. The Basic Layer States: Freeze/Thaw Thaw - Everything on this layer is visible and plotted Frozen - Everything on this layer is NOT visible and NOT plotted Visibility ON - Everything on this layer is visible and plotted OFF - Everything on this layer is NOT visible yet plots as though they were ON Protected LOcked - Everything on this layer is protected from editing Plotting Plot/NoPlot - Introduced after 2000. OFF vs Frozen Even though entities residing on layers that are turned OFF ARE NOT visible on the display screen: They ARE considered with the follow commands and values: HIDE ( including plots ), EXTENTS ( including ZOOM ), REGEN They ARE NOT considered during: SHADE, RENDER, FILL Entities residing on layers that are Frozen ARE NOT considered in any of the mentioned actions. You can independently Freeze layers in paperspace viewports. The layer must be Thawed and ON to do so. *** Naming Conventions: CAD programs allow you to use the alpha numeric characters and the special characters dollar sign ($), hyphen (-), and underscore (_) for layer names. It does not allow you to use extended ASCII characters or the special characters that are reserved for wildcard searches. ### COMMENT: There was once a 31 character name length limit. It is still a good rule to abide by. Backward compatibility, a lot less typing, cleaner screen readability to name a few. *** Reserved Names: 0 and DEFPOINTS are reserved layer names used in CAD programs. They have some preset and sometimes quirky rules that go with them. Layer 0 is always present and cannot be purged. Entities created on layer 0 and incorporated into a BLOCK, will take on the INSERT layers properties unless you override the entity properties for COLOR, LTYPE, LTSCALE. Layer DEFPOINTS is automatically created when creating a DIMENSION entity. It contains the DIMENSION entity definition points. Entities on layer DEFPOINTS are never printed. Even when the layer is turned OFF, entities on layer DEFPOINTS are visible on the screen. Layer ASHADE is a layer added during a render process. It has standard layer properties as far as I know. It is creating in the OFF and LOcked mode, but can be changed. !!! Good Habits: Be as consistent as possible when creating your naming conventions. Some disciplines use a very strict and detailed layer naming convention. Some of these make sense, some are a bit more cryptic. Misspelled names can lead to a lot of confusion. Watch out for the old zero vs O mixup. Fonts and video drivers can make hard it to distinguish between the two. Use consistent prefixes and suffixes when possible. These can be used in conjunction with wildcards searches for some very efficient layer control using the command line version of the LAYER command. It even can help with the dialog box interface. ### COMMENT: I highly recommend that cadders learn the command line version of the LAYER command. It will surprise a lot of people how much faster and easier basic freeze/thaw operations are when used on the command in conjunction with a good layering name convention. The dialog box is better for editing layer properties. ### EXAMPLE: This is a sample of a layering convention we use: Command: -la -LAYER ?/Make/Set/New/ON/OFF/Color/Ltype/Freeze/Thaw/LOck/Unlock: ? Layer name(s) to list <*>: Layer name State Color Linetype ------------------ --------- ------------- ------------ 0 On 7 (white) CONTINUOUS 1D On 10 CONTINUOUS 1D-WALL On 11 CONTINUOUS 2D On 14 CONTINUOUS 2D-DOOR On 1 (red) 2D-DOOR 3D-7 Frozen 7 (white) CONTINUOUS 3D-ALUM Frozen 4 (cyan) CONTINUOUS 3D-BRUSHED Frozen 2 (yellow) CONTINUOUS 3D-CASTIRON Frozen 5 (blue) CONTINUOUS 3D-CHROME Frozen 7 (white) CONTINUOUS 3D-COLDROLL Frozen 7 (white) CONTINUOUS 3D-DOOR Frozen 15 CONTINUOUS 3D-DOOR-CH Frozen 7 (white) CONTINUOUS 3D-EPOXY Frozen 3 (green) CONTINUOUS 3D-GLASS Frozen 3 (green) CONTINUOUS 3D-PLAM Frozen 5 (blue) CONTINUOUS 3D-PLAM-BODY Frozen 4 (cyan) CONTINUOUS 3D-PLAM-SUP Frozen 4 (cyan) CONTINUOUS 3D-SAFETY Frozen 7 (white) CONTINUOUS 3D-SOLID Frozen 3 (green) CONTINUOUS FS-EL Frozen 1 (red) CONTINUOUS FS-FACE Off 12 CONTINUOUS FS-GA Frozen 2 (yellow) CONTINUOUS FS-PL Frozen 5 (blue) CONTINUOUS FS-RF Frozen 7 (white) CONTINUOUS FS-VT Frozen 6 (magenta) CONTINUOUS WALL On 3 (green) CONTINUOUS WALL-COL On 13 CONTINUOUS By using wildcards, you can Freeze all of the 3D layers from the command line by: Command: -la Enter an option [?/Make/Set/New/ON/OFF/Color/Ltype/LWeight/Plot/Freeze/Thaw/LOck/Unlock]: _F Enter name list of layer(s) to freeze: 3D* Or Thaw any wall layers: Command: -la Enter an option [?/Make/Set/New/ON/OFF/Color/Ltype/LWeight/Plot/Freeze/Thaw/LOck/Unlock]: _T Enter name list of layer(s) to thaw: *WALL* Or LOck all layers starting with 1D or 2D Command: -la Enter an option [?/Make/Set/New/ON/OFF/Color/Ltype/LWeight/Plot/Freeze/Thaw/LOck/Unlock]: _LO Enter name list of layer(s) to lock: 1D*,2D* *** Some commonly used command line wildcards: Asterisk (*) = Match any string. This can be used, before, after or in the middle of the pattern Tilde (~) = Match anything but the pattern, similar to the boolean NOT function. Comma (,) = For multiple patterns, similar to the boolean AND function. You can get very creative with the wildcard scenario and it can be a great time saver. You can also incorporate these into SCRIPT files for future and repetitive uses. -David Quote
Cad64 Posted February 13, 2010 Posted February 13, 2010 paulmcz said: Why am I getting this message when I click on the link David posted? I get the same message when I click on the link. David and dbroada, you guys are both on the FAQ team which is probably why you can both follow the posted link with no problem and the rest of us cannot. Does the link go to a page in your archives or does it go to a page in the public FAQ section? Quote

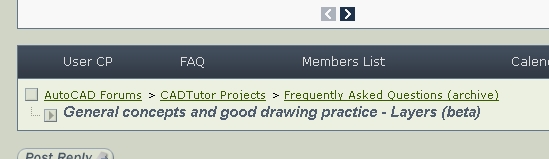

David Bethel Posted February 13, 2010 Posted February 13, 2010 Here's the forum path that I see: -David Quote
Cad64 Posted February 13, 2010 Posted February 13, 2010 That's the beta project area. Anything posted in there will not be available for viewing by anyone except FAQ team members. Quote
ReMark Posted February 13, 2010 Posted February 13, 2010 An explanation of the Defpoints layer... http://autocad.wikia.com/wiki/Defpoints_Layer Quote
ReMark Posted February 13, 2010 Posted February 13, 2010 Saw this over at Ellen Finkelstein's website re: Layer 0. "Al Pfennig wrote in this tip: "When creating symbols for inserting into a drawing when the same symbol may be inserted on more than one layer, create the symbol on the zero (0) layer and have color, linetype and linewidth set to ByLayer. This will allow the symbol to take on the characteristics of the layer on which it will be inserted."" Quote
rkmcswain Posted February 13, 2010 Posted February 13, 2010 Coosbaylumber said: Is very difficult to get rid of any inforation on defpoints layer, and then PURGE it out. Wm. Just curious about why you think this. It's no more or less difficult than any other layer. David Bethel said: Even when the layer is turned OFF, entities on layer DEFPOINTS are visible on the screen. Not true. Defpoints is no different with respect to [on/off] than other layers. There is a special strange relationship between layer 0 and DEFPOINTS though. Assuming both layers are thawed and ON, if you freeze layer 0, then objects on DEFPOINTS remain visible (as expected), but you cannot select them. David Bethel said: CAD programs allow you to use the alpha numeric characters and the special characters dollar sign ($), hyphen (-), and underscore (_) for layer names. It does not allow you to use extended ASCII characters or the special characters that are reserved for wildcard searches. ### COMMENT: There was once a 31 character name length limit. It is still a good rule to abide by. Backward compatibility, a lot less typing, cleaner screen readability to name a few. Just an FYI. The system variable EXTNAMES controls whether or not you can exceed 31 characters and use spaces and other special characters in layer and other table object names. Also, the lisp function (snvalid) can be used to test for valid table names. Quote
Crazy J Posted February 14, 2010 Author Posted February 14, 2010 David (and all), Great tips. As a product engineer previously (and not doing any serious CAD work myself), I worked with enough real designers to learn about, appreciate, and understand to a fair extent, the power of layers. So as I start into my role now as product engineer/designer, I am trying to use layers to my fullest advantage and learn all the tools associated with them that are available. Quote
David Bethel Posted February 14, 2010 Posted February 14, 2010 rkmcswain said: Not true. Defpoints is no different with respect to [on/off] than other layers. Then that has changed over the years. Pre A2K everything is visible. I did write that a long time ago. -David Quote
SherryLF Posted August 12, 2016 Posted August 12, 2016 Like me =)....I'll bring a bottle of aspirin with my questions. Reading up on Layer 0 - thanks for your comments. Quote
MillerMG Posted August 12, 2016 Posted August 12, 2016 I remember using 2007 and if layer zero was frozen you were not able to select the viewport layer if it was on defpoints. Or vice versa. I can't exactly remember. Quote
