Posted

Hi All,

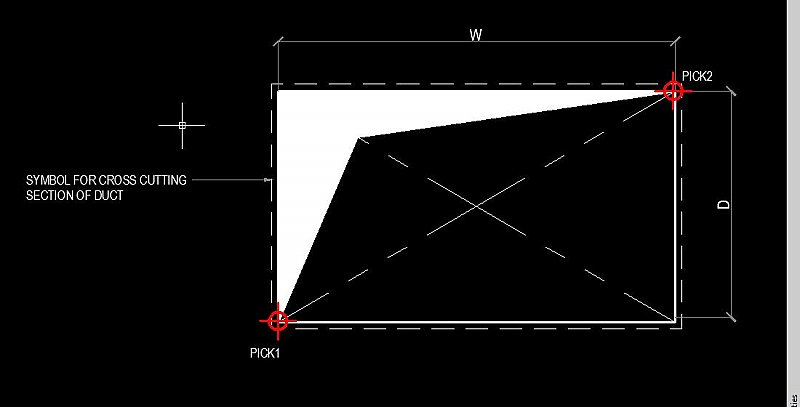

Good day to all, please if possible to have some Lisp Route that will automate to create a Rectangular DUCT Cutting Section as shown below attached image, by picking a 2 endpoints of rectang and create a shade solid hatch, similar with pipe cut (Yinyang) but on rectangular duct the shaded is on side portions only,



advance thanks to all,

DUCT SECTION.jpg

  • 13 years later...
Posted

(defun c:crd (/	 lt  ename   b	 c   sn	 sn1 sn2 p1  p2	 p3  p4	 f
     d	 d1  d2	 d3  a1	 a2  a3	 a4  p5	 p6  p7	 p8  p9	 p10
     sc ocl la ent lar
    )
  (setq acdoc (vla-get-activedocument  (vlax-get-acad-object))
         acspc (vlax-get-property acdoc (if (= 1 (getvar 'CVPORT)) 'paperspace 'modelspace))
   )
 (command "cmdecho" (getvar "cmdecho"))
 (setq lt "center")
 (if (= (tblsearch "ltype" lt) nil)
   (command "-linetype" "l" lt "acad.lin" "")
 )

 (setq	ocl   (getvar "clayer"))


 (princ "\n Select rectangles: ")
 (setq	ss  (ssget '((-4 . "<and")
	    (0 . "LWPOLYLINE")
	    (70 . 1)
	    (90 . 4)
	    (-4 . "and>")
	   )
    )

sn  (sslength ss)
sn1 sn
 )(COMMAND "UCS" "W" )
 (repeat sn
   (setq sn2	(1- sn1)
	 ename	(ssname ss sn2)
	 ent	(entget ename)
	 b	(member (assoc 10 ent) ent)
	 enlay	(cdr(assoc 8 ent))

   )
   (while (member (assoc 10 b) b)
     (setq c (append c (list (cdr (assoc 10 b))))
    b (cdr b)
    b (member (assoc 10 b) b)
     )
   )

   (setq f   0.0001
  d   0.12
  p1  (nth 0 c)
  p2  (nth 1 c)
  p3  (nth 2 c)
  p4  (nth 3 c)
  c   nil
  d1  (/ (distance p1 p2) 2)
  d2  (/ (distance p2 p3) 2)
  d3  (if (> d1 d2)
	(* d1 0.12)
	(* d2 0.12)
      )
  a1  (angle p1 p2)
  a2  (angle p2 p1)
  a3  (angle p2 p3)
  a4  (angle p3 p2)
  p5  (polar p1 a1 d1)
  p6  (polar p5 a4 d3)
  p7  (polar p6 a3 (+ (* d2 2) (* d3 2)))
  p8  (polar p2 a3 d2)
  p9  (polar p8 a1 d3)
  p10 (polar p9 a2 (+ (* d1 2) (* d3 2)))
  sc  (* (+ d1 d2) f)
  sn1 sn2
   )
   (setq dis (lambda ( a1 b1 ) (distance (list (car a1) (cadr a1)) (list (car b1) (cadr b1))))
                  ocs (trans '(0.0 0.0 1.0) 1 0 t))
(setq ang(angle P4 p2)
      di (dis p2 p4)
      midp1(polar p4 ang (/ di 2))
      di2(dis p4 midp1)
      midp2(polar p4 ang (/ di2 2)))
   (entmake
     (list
       '(000 . "LWPOLYLINE")
       '(100 . "AcDbEntity")
       '(100 . "AcDbPolyline")
       '(090 . 4)
       '(070 . 1)
       (cons 008 . (enlay))
       (cons 010 (trans p1 1 ocs))
       (cons 010 (trans midp2 1 ocs))
       (cons 010 (trans p3 1 ocs))
       (cons 010 (trans p4 1 ocs))
       (cons 210 ocs)
       )
     )
   (setq crobj(entlast))
   (setq hobj (vla-addhatch acspc achatchpatterntypepredefined "solid" :vlax-true achatchobject))
   (vla-appendouterloop hobj
     (vlax-make-variant
           (vlax-safearray-fill
               (vlax-make-safearray vlax-vbobject '(0 . 0))
               (list (vlax-ename->vla-object crobj))
           )
       )
   )
   (vla-evaluate hobj)
   (vla-put-color hobj 253)
   (vla-put-layer hobj enlay)


 )
 (setvar "clayer" ocl)(COMMAND "UCS" "P")
 (princ)
)
