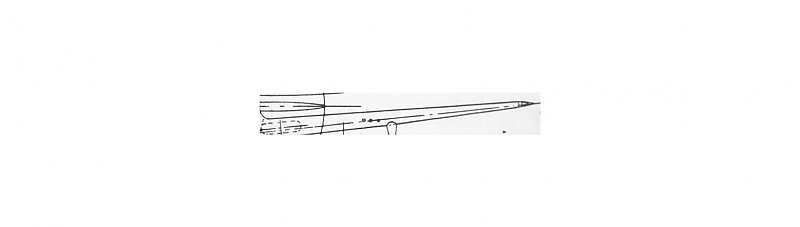

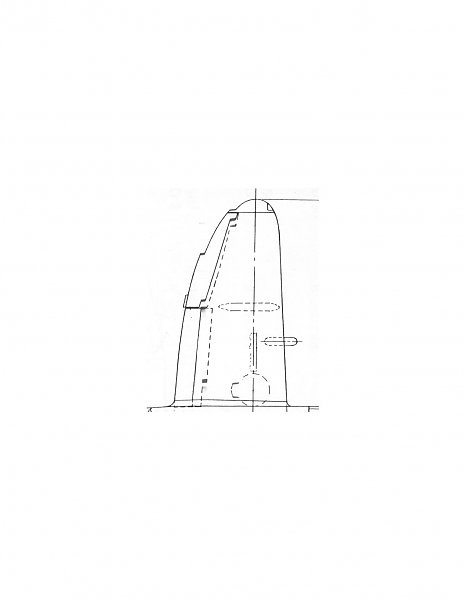

maxwellbests Posted October 13, 2009 Share Posted October 13, 2009 Hi all, Using Rhino 4 on a study project. I am drawing an aircraft (p47)from 3 views. I am finding the wing to be a right pain. When looked at from plan view the wing changes shape, from front view, camber is different on top surface to bottom surface etc. The end of the wing is rounded. Displeased with efforts thus far, using 1 and 2 sweep, loft, curve network, patch on the ends etc. My surfaces are not watertight, etc. See attached. Your guidance would be most appreciated. Thanks Quote Link to comment Share on other sites More sharing options...
ReMark Posted October 13, 2009 Share Posted October 13, 2009 If you were doing this in AC 2009 I'd say you would need at least a few wing cross-sections that you could then loft to get the final shape. Unfortunately, although I have used Rhino (about three years ago) I am unable to provide you with a definitive answer. Quote Link to comment Share on other sites More sharing options...
maxwellbests Posted October 14, 2009 Author Share Posted October 14, 2009 Thanks for your reply. Will try using more lofts. Lots more loftsThe shape of the wing makes it a challenge, plus camber makes it a challenge to be sure. Quote Link to comment Share on other sites More sharing options...
ReMark Posted October 14, 2009 Share Posted October 14, 2009 http://www.cadtutor.net/forum/showthread.php?t=40872&highlight=conic Quote Link to comment Share on other sites More sharing options...
maxwellbests Posted October 14, 2009 Author Share Posted October 14, 2009 Some extra tools for the tool box. Thanks Quote Link to comment Share on other sites More sharing options...
